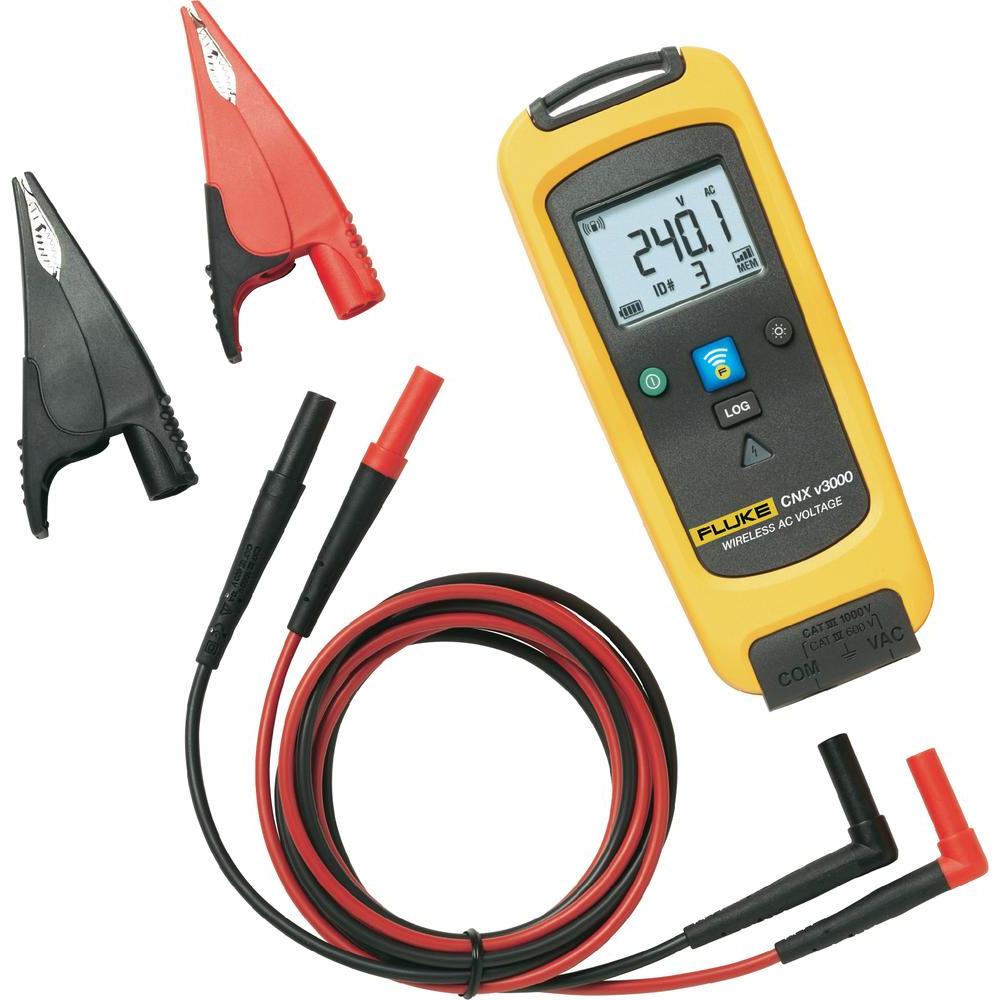

Connect the CNX v3000 AC Wireless Voltage Module to your test point, and view the results up to 20 meters away on the CNX 3000 Wireless Multimeter. You’ll save time, with less run-around collecting multiple measurements. Plus, no more writing down data as the CNX 3000 captures up to 65,000 sets of time stamped min/max/avg readings. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.

The CNX v3000 AC Wireless Voltage Module provides:

True-RMS AC voltage measurements to 1000V
±1% accuracy to 500 Hz, ± 2% accuracy to 1 kHz
Memory recording up to 65,000 readings
Backlit LCD display
CAT IV 600 V, CAT III 1000 V; IP42

The CNX wireless system can track up to 10 measurement modules simultaneously, with results sent to a PC for detailed analysis.

Standard accessories

Model Name	Description
CNX 3000	Fluke CNX 3000 Wireless Multimeter � True-RMS Wireless Multimeter � TL175 Test Leads � AC175 Alligator Clips
CNX v3000	Fluke CNX v3000 AC Wireless Voltage Module � True-RMS AC Voltage Module � TL224 Test Leads � AC285 Alligator Clips � Magnetic Hanging Strap
CNX i3000	Fluke CNX i3000 iFlex AC Wireless Current Module � True-RMS Flexible Current Meter 2500A � iFlex i2500-10 Flexible Current Probe � TL175 Test Leads � AC175 Alligator Clips � Magnetic Hanging Strap
CNX a3000	Fluke CNX a3000 AC Wireless Current Clamp Module � True-RMS AC Clamp Meter 400A
CNX t3000	Fluke CNX t3000 K-Type Wireless Temperature Module � K-Type Thermocouple Thermometer � 80PK-1 K-Type Bead Thermocouple � Magnetic Hanging Strap
CNX i3000 Kit	Fluke CNX i3000 iFlex AC Current Measurement Kit � Fluke CNX 3000 Wireless Multimeter � Fluke CNX i3000 iFlex AC Wireless Current Module � iFlex i2500-10 Flexible Current Probe � TL175 Test Leads � AC175 Alligator Clips � Magnetic Hanging Strap � Soft Carrying Case
CNX v3000 Kit	Fluke CNX v3000 AC Voltage Kit � Fluke CNX 3000 Wireless Multimeter � Fluke CNX v3000 AC Wireless Voltage Module � TL224 Test Leads � TL175 Test Leads � AC175 Alligator Clips � AC285 Alligator Clips � Magnetic Hanging Strap � Soft Carrying Case
CNX a3000 Kit	Fluke CNX a3000 AC Current Clamp Kit � Fluke CNX 3000 Wireless Multimeter � Fluke CNX a3000 AC Wireless Current Clamp Module � TL175 Test Leads � AC175 Alligator Clips � Soft Carrying Case
CNX t3000 Kit	Fluke CNX t3000 Temperature Measurement Kit � Fluke CNX 3000 Wireless Multimeter � Fluke CNX t3000 K-Type Wireless Temperature Module � TL175 Test Leads � AC175 Alligator Clips � 80PK-1 K-Type Bead Thermocouple � Magnetic Hanging Strap � Soft Carrying Case
CNX 3000 GM	Fluke CNX 3000 General Maintenance System � Fluke CNX 3000 Wireless Multimeter � Fluke CNX v3000 AC Wireless Voltage Module � Fluke CNX i3000 iFlex AC Wireless Current Module � iFlex i2500-10 Flexible Current Probe � Fluke CNX pc3000 Wireless PC Adapter and Software � TL224 Test Leads � TL175 Test Leads � AC175 Alligator Clips � AC285 Alligator Clips � Two (2) Magnetic Hanging Straps � Soft Carrying Case
CNX 3000 IND	Fluke CNX 3000 Industrial System � Fluke CNX 3000 Wireless Multimeter � Fluke CNX v3000 AC Wireless Voltage Module � Three (3) Fluke CNX i3000 iFlex AC Wireless Current Modules � Three (3) iFlex i2500-10 Flexible Current Probes � Fluke CNX pc3000 Wireless PC Adapter and Software � TL224 Test Leads � TL175 Test Leads � AC175 Alligator Clips � AC285 Alligator Clips � Four (4) Magnetic Hanging Straps
CNX 3000 HVAC	Fluke CNX 3000 HVAC System � Fluke CNX 3000 Wireless Multimeter � Fluke CNX a3000 AC Wireless Current Clamp Module � Fluke CNX t3000 K-Type Wireless Temperature Module � Fluke CNX pc3000 Wireless PC Adapter and Software � TL175 Test Leads � AC175 Alligator Clips � 80PK-1 K-Type Bead Thermocouple � Magnetic Hanging Strap � Soft Carrying Case

Recommended options

Cases and Holsters
CNX C3000	CNX C3000 Premium Modular Tool Bag Webbed bag for customizable carrying system, when used with other CNX modular cases.
CNX C3001	CNX Small Modular Case C3001 Compatible with wireless modules Fluke CNX
CNX C3002	CNX C3002 Modular DMM 2-Compartment Soft Case � Compatible with Fluke CNX Wireless Multimeter � Inner pocket and carrying handle
CNX C3003	CNX C3003 Modular 3-Compartment Soft Case � Compatible with Fluke CNX wireless modules and meters � Three adjustable compartments, inner pocket, and carrying handle

PC Adapter and Software
CNX pc3000	Fluke CNX pc3000 PC Adapter Fluke CNX sw3000 software

Temperature
80PK-1	80PK-1 Bead Probe

Test Leads
TL175	TL175 TwistGuard™ Test Leads
