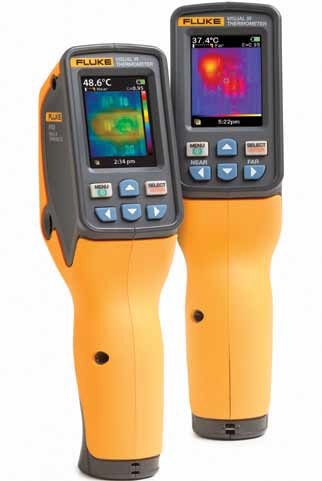

Fluke VT04 Infrared Thermometer with Integrated Camera

Code: Fluke VT04 FLK-VT04




Datasheet PDF, 2.3 Mb

Description

  • Built-in digital camera - Every Fluke Visual IR Thermometer has a built-in digital camera
  • Exclusive thermal heat map blending overlay - With one button, blend digital images and thermal heat maps to instantly show the exact location of the issue
  • No training required - Fully automatic with built-in intelligence
  • True pocket size design - Less than half the size of an average infrared camera
  • SmartView® reporting software - Store up to 10,000 images per Gb on included SD card and make professional reports on included professional software
  • Automatic hot and cold spot trackers
  • Breakthrough affordability - Fraction of the cost of infrared cameras that require costly training and software

The Fluke VT04 adds:

  • Powerful resolution with PyroBlend® Plus optics
    • Best-in-class field of view: 28° x 28° (40% wider for tight spaces)
    • 4 times sharper images
  • Alarm and time lapse features
    • Hi/Lo temperature alarm - Find hot spots in seconds with the alarm feature
    • Time lapse image capture - Automatically monitor equipment over time
    • Automated monitoring alarm - Automatically capture images after an alarm has been triggered



Standard accessories

FLK-VT04

Includes:

  • VT04 Visual IR Thermometer
  • Hard Case
  • Micro-SD Card
  • Micro-SD Conversion Adapter to Standard
  • Li-Ion Rechargeable Battery
  • Micro USB Charger/Power Supply (including worldwide adapters)
  • Printed Quick Start Guides (English, French, German, Spanish, Simplified Chinese)

Available for free download*:



More products FLUKE

FLUKE VT04 INFRARED THERMOMETER WITH INTEGRATED CAMERA

• take simultaneous visual images with the thermal heat map images that are accurately aligned close in
• Temperature measurement range -10 °C to +250 °C (14 °F to 482 °F)
• Infrared spectral band 6.5 µm to 14 µm
• Minimum focus distance 50 cm (19.6 in)
• Field of View 28° X 28°
• 4 GB Micro SD card
