Industrial Voltage and Current Measurement System Fluke CNX 3000 IND

Code: Fluke CNX 3000 IND




Description

A complete wireless measurement system that lets you make primary measurements on your multimeter while simultaneously viewing measurements from the remote voltage and current modules.



The CNX 3000 Industrial System is part of the team of Fluke wireless test tools.

Connect the three CNX i3000 iFlex AC Wireless Current Modules to your test points, and view the results from all three phases up to 20 meters away on the CNX Wireless Multimeter. Or connect the CNX v3000 AC Wireless Voltage Module and view both voltage and current measurements simultaneously. You’ll save time, with less run-around collecting multiple measurements. Use the modules as a stand-alone measurement tools or combine with other CNX modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the CNX remote modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.



The CNX 3000 Industrial System provides measurement of all common electrical parameters.

The CNX 3000 Wireless Multimeter offers:

  • True-RMS AC and DC voltage measurements to 1000V
  • True-RMS AC and DC current with 0.01 mA resolution
  • Continuity, resistance, diode test, capacitance and frequency measurements
  • MIN/MAX Recording
  • CAT III 1000 V; CAT IV 600 V; IP54


The CNX i3000 iFlex AC Wireless Current Module offers:

  • True-RMS AC current measurements to 2500 A
  • 3% accuracy
  • Memory recording up to 65,000 readings
  • iFlex current probe allows you to get into tight, awkward spaces
  • Backlit LCD display
  • CAT III 1000, CAT IV 600 V, CAT III 1000 V; IP42


The CNX v3000 AC Wireless Voltage Module offers:

  • True-RMS AC voltage measurements to 1000V
  • ±1% accuracy to 500 Hz, ± 2% accuracy to 1 kHz
  • Memory recording up to 65,000 readings
  • Backlit LCD display
  • CAT III 1000 V, CAT IV 600 V, CAT III 1000 V; IP42



The CNX wireless system can track up to 10 measurement modules simultaneously, with results sent to a PC for detailed analysis.



Standard accessories

Model Name

Description

CNX 3000

Fluke CNX 3000 Wireless Multimeter

·  True-RMS Wireless Multimeter

·  TL175 Test Leads

·  AC175 Alligator Clips

CNX v3000

Fluke CNX v3000 AC Wireless Voltage Module
·  True-RMS AC Voltage Module

·  TL224 Test Leads

·  AC285 Alligator Clips

·  Magnetic Hanging Strap

CNX i3000

Fluke CNX i3000 iFlex AC Wireless Current Module
·  True-RMS Flexible Current Meter 2500A

·  iFlex i2500-10 Flexible Current Probe

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Magnetic Hanging Strap

CNX a3000

Fluke CNX a3000 AC Wireless Current Clamp Module
·  True-RMS AC Clamp Meter 400A

CNX t3000

Fluke CNX t3000 K-Type Wireless Temperature Module
·  K-Type Thermocouple Thermometer

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

CNX i3000 Kit

Fluke CNX i3000 iFlex AC Current Measurement Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX i3000 iFlex AC Wireless Current Module

·  iFlex i2500-10 Flexible Current Probe

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX v3000 Kit

Fluke CNX v3000 AC Voltage Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX a3000 Kit

Fluke CNX a3000 AC Current Clamp Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX a3000 AC Wireless Current Clamp Module

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Soft Carrying Case

CNX t3000 Kit

Fluke CNX t3000 Temperature Measurement Kit
·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX t3000 K-Type Wireless Temperature Module

·  TL175 Test Leads

·  AC175 Alligator Clips

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX 3000 GM

Fluke CNX 3000 General Maintenance System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  Fluke CNX i3000 iFlex AC Wireless Current Module

·  iFlex i2500-10 Flexible Current Probe

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Two (2) Magnetic Hanging Straps

·  Soft Carrying Case

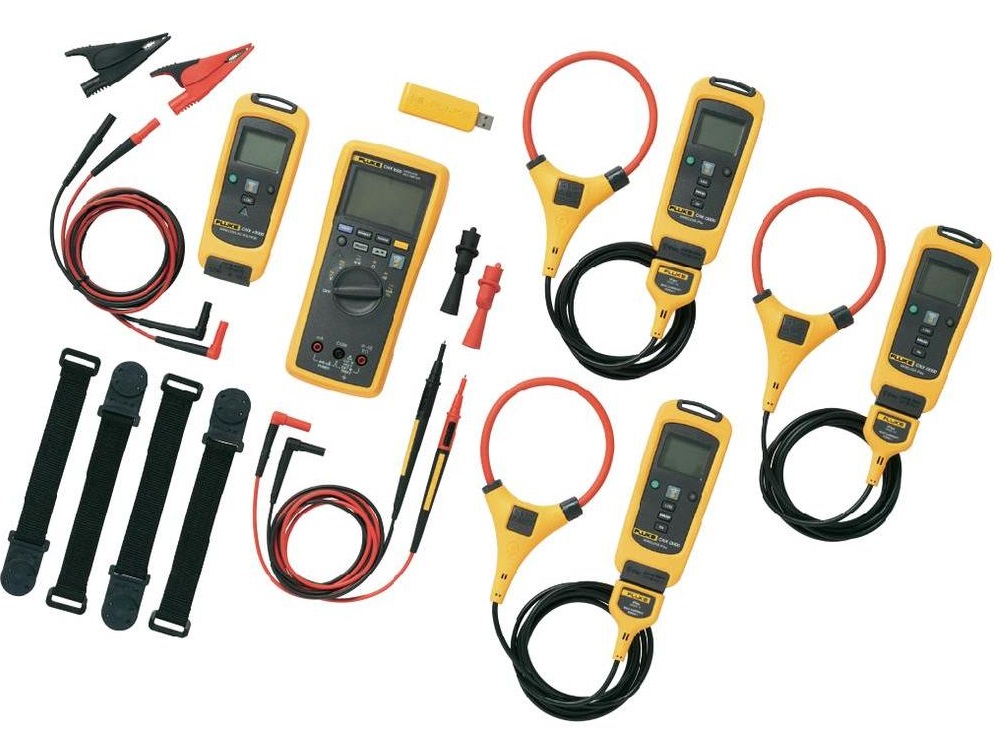

CNX 3000 IND

Fluke CNX 3000 Industrial System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  Three (3) Fluke CNX i3000 iFlex AC Wireless Current Modules

·  Three (3) iFlex i2500-10 Flexible Current Probes

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Four (4) Magnetic Hanging Straps

CNX 3000 HVAC

Fluke CNX 3000 HVAC System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX a3000 AC Wireless Current Clamp Module

·  Fluke CNX t3000 K-Type Wireless Temperature Module

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL175 Test Leads

·  AC175 Alligator Clips

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

·  Soft Carrying Case



Recommended options

Cases and Holsters

CNX C3000

CNX C3000 Premium Modular Tool Bag
Webbed bag for customizable carrying system, when used with other CNX modular cases.

CNX C3001

CNX Small Modular Case C3001
Compatible with wireless modules Fluke CNX

CNX C3002

CNX C3002 Modular DMM 2-Compartment Soft Case

·  Compatible with Fluke CNX Wireless Multimeter

·  Inner pocket and carrying handle

CNX C3003

CNX C3003 Modular 3-Compartment Soft Case

·  Compatible with Fluke CNX wireless modules and meters

·  Three adjustable compartments, inner pocket, and carrying handle



PC Adapter and Software

CNX pc3000

Fluke CNX pc3000 PC Adapter
Fluke CNX sw3000 software



Temperature

80PK-1

80PK-1 Bead Probe



Test Leads

TL175

TL175 TwistGuard™ Test Leads
