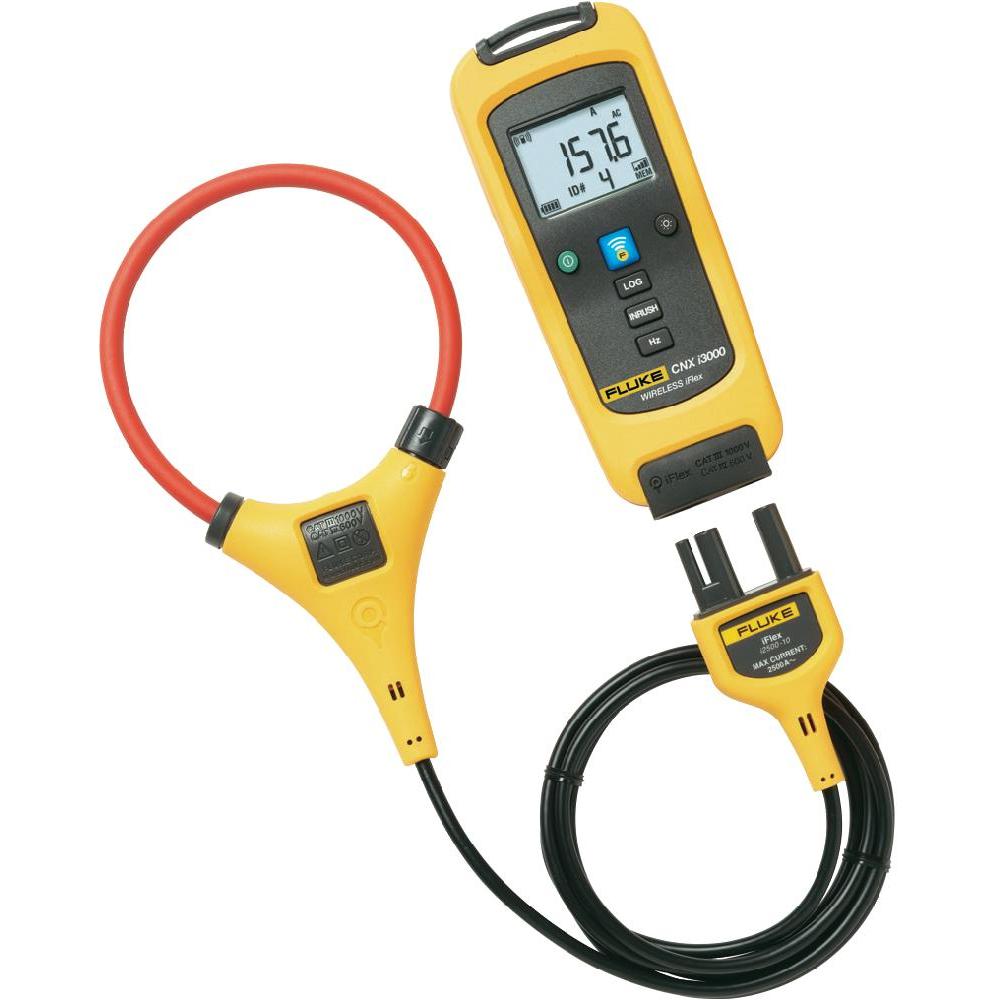

Wireless AC Flexible Current Clampmeter Fluke CNX i3000 iFlex

Code: Fluke CNX i3000 iFlex




Description

A True-RMS current meter that wirelessly relays measurements to the CNX 3000 Wireless Multimeter. The iFlex™ Wireless Current Module allows you to measure around awkward sized conductors and makes wire access easier.



The CNX i3000 iFlex AC Wireless Current Module is part of the Fluke team of wireless troubleshooting tools.

Connect the CNX i3000 iFlex AC Wireless Current Module to your test point, and view the results up to 20 meters away on the CNX Wireless Multimeter. You’ll save time, with less run-around, collecting multiple measurements. Use multiple modules for measurements on three-phase systems. Or use as a stand-alone measurement tool or combine with other CNX modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus, no more writing down data as the CNX i3000 Current Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.



The CNX i3000 iFlex AC Wireless Current Module has all the essentials to help you conveniently take current measurements.



  • True-RMS AC current measurements to 2500 A
  • 3% accuracy
  • Memory recording up to 65,000 readings
  • iFlex current probe allows you to get into tight, awkward spaces
  • Backlit LCD display
  • CAT IV 600 V, CAT III 1000 V





Using the optional PC adapter, the CNX wireless troubleshooting system can track up to 10 measurement modules simultaneously, with results downloaded for further analysis.



Standard accessories

Model Name

Description

CNX 3000

Fluke CNX 3000 Wireless Multimeter

·  True-RMS Wireless Multimeter

·  TL175 Test Leads

·  AC175 Alligator Clips

CNX v3000

Fluke CNX v3000 AC Wireless Voltage Module
·  True-RMS AC Voltage Module

·  TL224 Test Leads

·  AC285 Alligator Clips

·  Magnetic Hanging Strap

CNX i3000

Fluke CNX i3000 iFlex AC Wireless Current Module
·  True-RMS Flexible Current Meter 2500A

·  iFlex i2500-10 Flexible Current Probe

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Magnetic Hanging Strap

CNX a3000

Fluke CNX a3000 AC Wireless Current Clamp Module
·  True-RMS AC Clamp Meter 400A

CNX t3000

Fluke CNX t3000 K-Type Wireless Temperature Module
·  K-Type Thermocouple Thermometer

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

CNX i3000 Kit

Fluke CNX i3000 iFlex AC Current Measurement Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX i3000 iFlex AC Wireless Current Module

·  iFlex i2500-10 Flexible Current Probe

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX v3000 Kit

Fluke CNX v3000 AC Voltage Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX a3000 Kit

Fluke CNX a3000 AC Current Clamp Kit

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX a3000 AC Wireless Current Clamp Module

·  TL175 Test Leads

·  AC175 Alligator Clips

·  Soft Carrying Case

CNX t3000 Kit

Fluke CNX t3000 Temperature Measurement Kit
·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX t3000 K-Type Wireless Temperature Module

·  TL175 Test Leads

·  AC175 Alligator Clips

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

·  Soft Carrying Case

CNX 3000 GM

Fluke CNX 3000 General Maintenance System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  Fluke CNX i3000 iFlex AC Wireless Current Module

·  iFlex i2500-10 Flexible Current Probe

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Two (2) Magnetic Hanging Straps

·  Soft Carrying Case

CNX 3000 IND

Fluke CNX 3000 Industrial System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX v3000 AC Wireless Voltage Module

·  Three (3) Fluke CNX i3000 iFlex AC Wireless Current Modules

·  Three (3) iFlex i2500-10 Flexible Current Probes

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL224 Test Leads

·  TL175 Test Leads

·  AC175 Alligator Clips

·  AC285 Alligator Clips

·  Four (4) Magnetic Hanging Straps

CNX 3000 HVAC

Fluke CNX 3000 HVAC System

·  Fluke CNX 3000 Wireless Multimeter

·  Fluke CNX a3000 AC Wireless Current Clamp Module

·  Fluke CNX t3000 K-Type Wireless Temperature Module

·  Fluke CNX pc3000 Wireless PC Adapter and Software

·  TL175 Test Leads

·  AC175 Alligator Clips

·  80PK-1 K-Type Bead Thermocouple

·  Magnetic Hanging Strap

·  Soft Carrying Case



Recommended options

Cases and Holsters

CNX C3000

CNX C3000 Premium Modular Tool Bag
Webbed bag for customizable carrying system, when used with other CNX modular cases.

CNX C3001

CNX Small Modular Case C3001
Compatible with wireless modules Fluke CNX

CNX C3002

CNX C3002 Modular DMM 2-Compartment Soft Case

·  Compatible with Fluke CNX Wireless Multimeter

·  Inner pocket and carrying handle

CNX C3003

CNX C3003 Modular 3-Compartment Soft Case

·  Compatible with Fluke CNX wireless modules and meters

·  Three adjustable compartments, inner pocket, and carrying handle



PC Adapter and Software

CNX pc3000

Fluke CNX pc3000 PC Adapter
Fluke CNX sw3000 software



Temperature

80PK-1

80PK-1 Bead Probe



Test Leads

TL175

TL175 TwistGuard™ Test Leads
