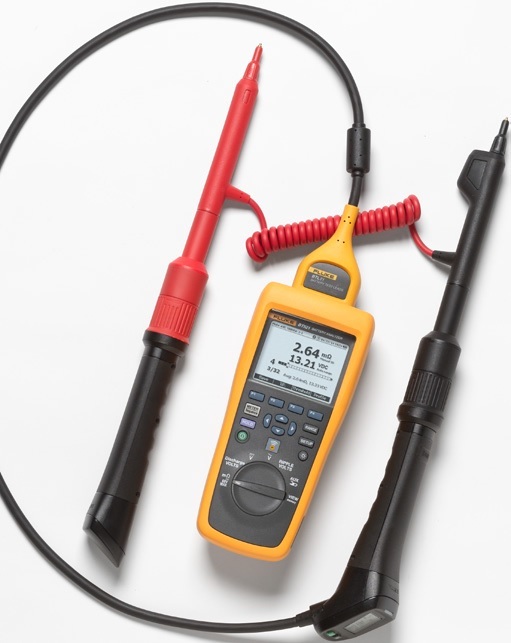

Internal Battery Resistance Analyzer Fluke BT520

Code: Fluke BT520




Datasheet PDF, 1.15 Mb

Description

Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.

The Fluke 500 Series Battery Analyzer is ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications. The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability. Fluke 500 Series Battery Analyzers cover a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system. 500 Series Battery Analyzers are designed for measurements on stationary batteries of all types.

  • Key measurements: Battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and battery temperature.
  • Sequence measurement mode: Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe).
  • Comprehensive logging: All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis.
  • Optimized user interface: Quick, guided setup ensures you're capturing the right data every time, and the combined visual and audio feedback cues reduce the risk of measurement confusion.
  • Threshold comparison: Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.
  • Ergonomic test leads: Rugged coaxial two pole kelvin test pins with remote SAVE button reduce test time and increase efficiency.
  • Test probe extenders: Long reach probes for double stacked cells.
  • Intelligent test probe set (BT520 and BT521): Integrated LCD display, infrared temperature measurement (BT521 only), flashlight, verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated save button.
  • Enhanced data analysis: Quickly compare trends, analyze results and create reports with included battery management software.
  • Easy reporting: Generate PDF report on the PC software with analysis graphics and data table or quick email format report with csv file on the mobile app.
  • Wireless communication: For data download and remote display while measuring. Browse and email measurement data via iOS app.
  • Battery life: 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation.
  • USB port: For fast data download to supplied data analysis and report management application software.
  • Highest safety rating in the industry: CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment.


Standard accessories

Model Name

Description

Fluke BT510

Fluke BT510 Battery Analyzer
Includes
:

  • Battery analyzer
  • 4-wire test pin (set)
  • BTL10 Basic Test Lead (set)
  • TL175 TwistGuard™ Test Leads with adapter
  • BP500 lithium-ion battery
  • BC500 AC charger
  • Mini-USB cable
  • Shoulder strap
  • Belt strap
  • Magnetic hanging strap
  • FlukeView® Battery Management Software
  • Soft carrying case
  • Spare fuses (2)

Fluke BT520

Fluke BT520 Battery Analyzer
Includes:

  • Battery analyzer
  • 4-wire test pin (set)
  • BTL10 Basic Test Lead (set)
  • TL175 TwistGuard™ Test Leads with adapter
  • L300 Attachable LED Flashlight (2)
  • BTL20 Intelligent Test Probe Set, with extender (no temperature sensor)
  • BP500 lithium-ion battery
  • BC500 AC charger
  • mini-USB cable
  • Shoulder strap
  • Belt strap
  • Magnetic hanging strap
  • FlukeView® Battery Management Software
  • Soft carrying case
  • Spare fuses (2)
  • Battery tags

Fluke BT521

Fluke BT521 Advanced Battery Analyzer
Includes:

  • Battery analyzer
  • 4-wire test pin (set)
  • BTL10 Basic Test Lead (set)
  • TL175 TwistGuard™ Test Leads with adapter
  • L300 Attachable LED Flashlight (2)
  • BTL21 Intelligent Test Probe Set, with extender and temperature sensor
  • i410 AC/DC Current Clamp
  • BP500 lithium-ion battery
  • BC500 AC charger
  • Mini-USB cable
  • Shoulder strap
  • Belt strap
  • Magnetic hanging strap
  • FlukeView® Battery Management Software
  • Soft carrying case
  • Spare fuses (2)
  • Battery tags


Recommended options



Test Probes

Fluke BTL20

Sonda de testare pentru analizor de baterii interactiv

Fluke BTL21

Sonda de testare pentru analizor de baterii interactiv cu senzor de temperatura



Batteries, Chargers and Adapters

Fluke BC500

Încarcator alimentare cu c.a.

Fluke BP500

Baterie litiu-ion de 3000 mAh

Fluke C500S

Cutie moale de transport (mica)



Cases and Holsters

Fluke BTL-A

Adaptor sonda de tensiune/curent

Fluke C500L

Cutie moale de transport (mare)



Current Clamps

i410

Cleste de curent CA/CC i410



Test Leads

Fluke BTL10

Borne de testare pentru analizor de baterii de baza



More products FLUKE

FLUKE 1625-2 GEO EARTH GROUND RESISTANCE TESTER

• 3- and 4-pole Fall-of-Potential, earth resistance loop testing
• 4-pole Soil Resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
• IP56 rated for outdoor use
• USB data storage and transfer
• Automatic Frequency Control (AFC)
• R* measurement - calculates earth ground impedance at 55 Hz



FLUKE MEMOBOX 1745 THREE PHASE POWER QUALITY LOGGER

• monitor & logging: V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD
• measures voltage & current harmonics, interharmonics, mains signaling, unbalance, frequency
• Plug and play
• Determines the root cause
• Monitors power for the long-term
• 0.1% voltage accuracy IEC61000-4-30 Class-A compliant
• five hour UPS
• IP50 advanced protection



INFRARED NON-CONTACT THERMOMETER FLUKE 61

• Bright laser beam provides easy targeting
• Display clearly supplies data at a glance
• Shock-absorbing holster increases ruggedness
• 0.2 °C (0. 5 °F) resolution up to 275 °C (525 °F)
• Backlight illuminates the screen in the dark
• Automatic sleep mode after 7 seconds extends battery life
• Alkaline batteries provide 4000 typical measurements

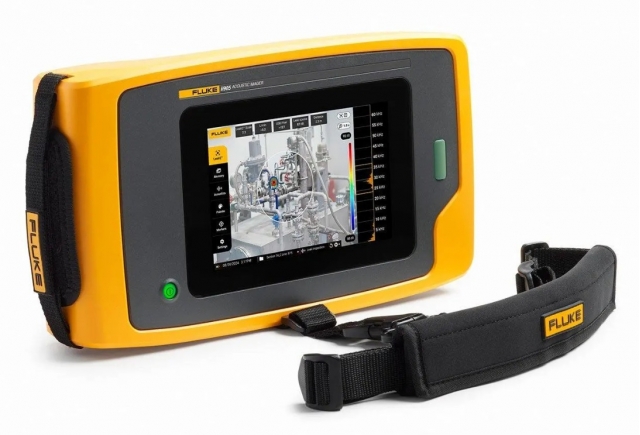

FLUKE II905 ACOUSTIC CAMERA IMAGER FOR INSPECTINA AND DETECTION COMPESSED AIR
