FLUKE TiS45 Infrared Camera 160x120

Code: FLUKE TiS45




Datasheet PDF, 1.63 Mb

Description

Models:

Fluke TiS10 80x60 pixels

Fluke TiS20 120x90 pixels

Fluke TiS40 160x120 pixels

Fluke TiS45 160x120 pixels

Fluke TiS50 220x165 pixels

Fluke TiS55 220x165 pixels

Fluke TiS60 260x195 pixels

Fluke TiS65 260x195 pixels

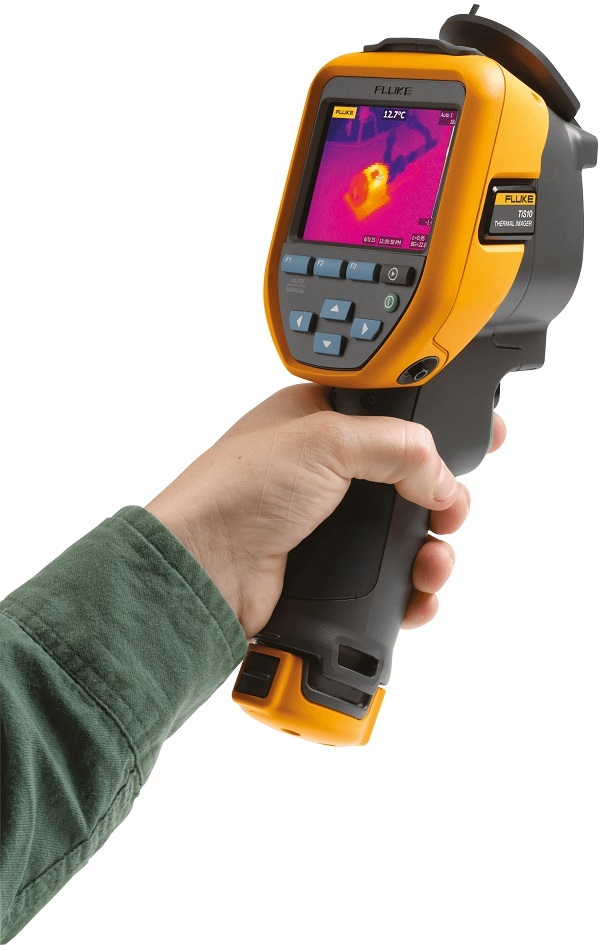

Fluke TiS45 Infrared Camera



  • Get the flexibility of manual focus to capture the best image possible of your target
  • Quality images - 160x120 resolution (19,200 pixels)
  • D:S of 257:1
  • Temperature measurement range -20 °C to 350 °C (-4 °F to 662 °F)
  • Find problems fast with exclusive IR-Fusion® Blending and PIP mode - capture the details you need to analyze problems and clearly identify the location
  • 3.5 inch, 320x240 LCD
  • 5 megapixel industrial performance digital camera
  • Smart battery system - lithium ion smart battery with five-segment LED charge level display
  • Email and share images in real time with Fluke Connect®
  • Stores thousands of images - 4 GB internal memory and 4 GB micro SD card


Standard accessories

Included Infrared cameras are shipped with a

universal AC power adapter,

 lithium ion smart battery (TiS75, TiS65/60 includes 2 each-other models 1 each), USB cable,

Micro SD card (TiS75, TiS65/60, TiS55, TiS45),

hard carrying case (TiS75, TiS65/60, TiS55/50, TiS45/40),

soft transport bag,

adjustable hand strap (TiS75, TiS65/60, TiS55/50, TiS45/40), and

quick reference guide and safety sheet.

Software is available via download at www.fluke.com/smartviewdownload.

TiS75, TiS65/60 models include a two-bay battery charger.





Recommended options

FLK-BLUETOOTH Bluetooth Headset

FLK-TI-TRIPOD3 Tripod Mounting Accessory

BOOK-ITP Introduction to Thermography Principles Book

FLK-TI-SBP3 Additional Smart Battery

FLK-TI-SBC3B Smart Battery Charger

TI-CAR CHARGER Car Charger
