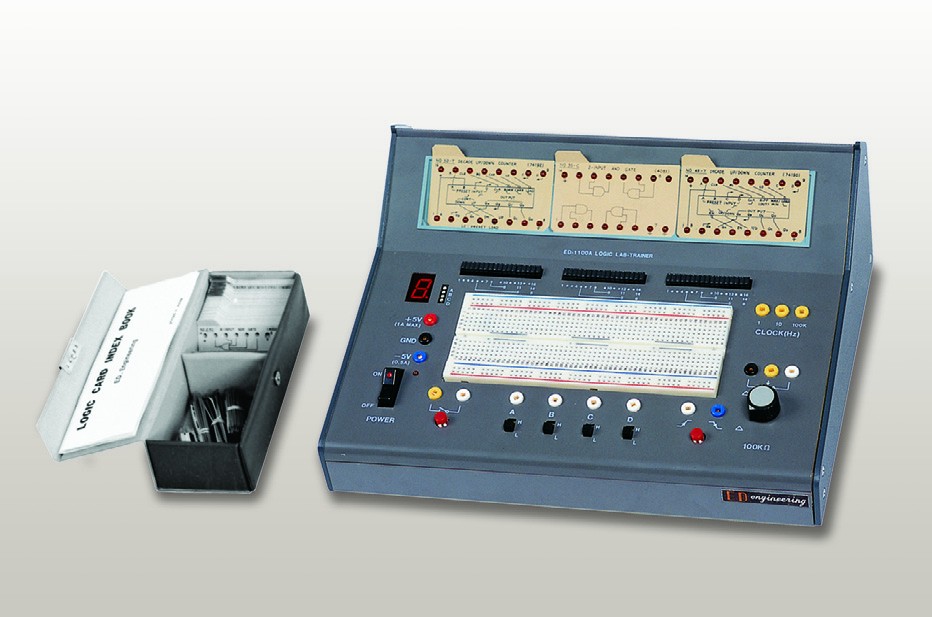

Logic Trainer ED-1100A

Code: ED-1100A




Datasheet PDF, 0.56 Mb

Description

SPECIFICATIONS

  • DC Output
    • +5V, -5V, 0.5A output(Ripple 10mV Max.)
  • Clock Pulse Output
    • 1 Hz, 10Hz, 100kHz(High : 4.5V, Low : 0.2V Approx.)
  • Logic Display
    • 3-stage Auto Logic Monitor(16LED x 3stage)
  • BCD Display : 1 digit(Logic "H" Active)
  • Logic Switch
    • 4Slide Switches(bounceless output)
    • Push Switch(positive & negative edge output)
  • Control Switch : 1 Push Switch(floating contact)
  • Bread Board : 1-IC Socket Board, 2-Bus strip
  • Input Voltage : AC 220V 50Hz/60Hz
  • Dimension : 255(W) x 110(H) x 205(D)mm
  • Logic Cards
    • TTL : 50ea, C-MOS : 65ea
  • Weight : 1.8kg



ACCESSORIES

  • Logic Card Box(CS-101) : 1ea
  • Experiment Jump Wire(5-Color) : 1set
  • Operating Manual : 1ea
  • Experiment manual : 1set



OPTION

  • Logic Clip Cord(16 Pin)
