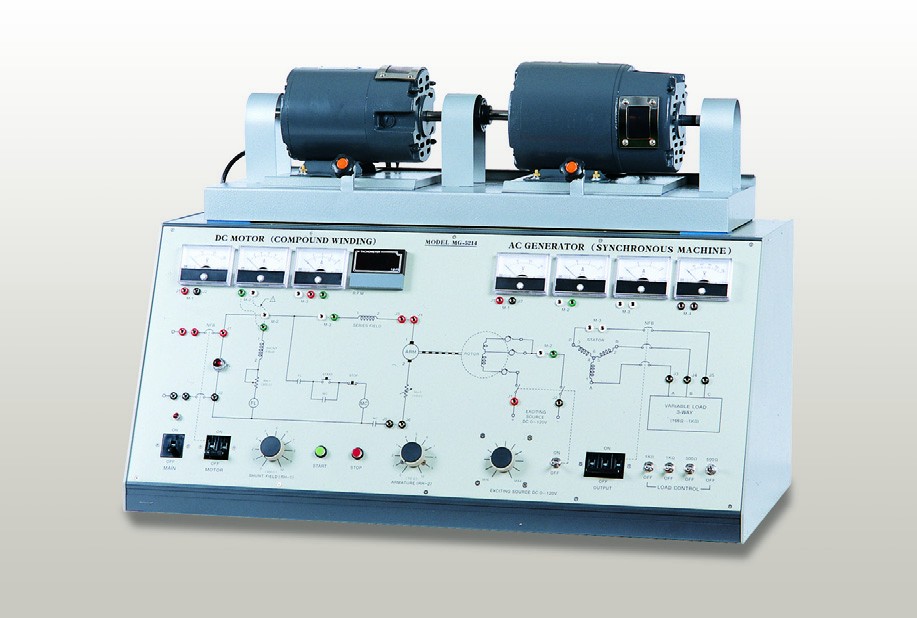

DC Motor/AC Generator MG-5214

Code: MG-5214




Datasheet PDF, 0.55 Mb

Description

MOTOR SECTION

  • Winding Type : Shunt/Compound
  • Speed : 1250~1800 RPM
  • Input Voltage : 120V, 3.6A
  • Horsepower : HP
  • Number of Poles : 2 poles
  • Shunt Field : 120V, 0.4A
  • Indication Meter : 2-current, 1-voltage, 1-RPM(digital)
  • Overload Trip : 4A
  • Exciting Power : DC 0~120V, 1A
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 2A Approx.
  • Load Resistance : 375?~2k?, 600W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, single phase
  • Rating : 30 minutes
  • Dimension : 960(W) x 670(H) x 480(D)mm
  • Weight : 89kg



GENERATOR SECTION

  • Winding Type : Synchronous Machine
  • Alternator Power : 120VA
  • Output Voltage : 200V, 3-phase, 4Wire
  • Speed : 1800 RPM
  • Frequency : 60Hz
  • Number of Poles : 4 poles



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
