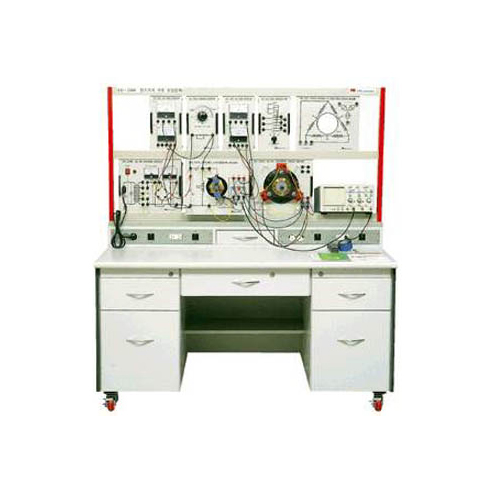

Electrical Machine Trainer ED-5300

Code: ED-5300




Datasheet PDF, 1.4 Mb


Description

BASIC EXRERIMENTS ON GENERATOR

  • Principles of the generator
  • Single-phase AC generator using permanent magnet
  • DC Generator using permanent magnet
  • Separately excited DC shunt-wound generator by field coil
  • Self-excited DC shunt-wound generator by field coil
  • Generator’s no-load saturation
  • Load characteristics of separately excited DC shunt-wound
  • generator
  • Revolving field, single-phase AC shunt-wound generator
  • Load characteristics of AC generator
  • Principles of 3-phase generator
  • Revolving field, 3-phase AC generator
  • Revolving armature-type 3-phase AC generator
  • Principles of rotary converter



BASIC EXRERIMENTS ON MOTOR

  • Principles of the motor
  • DC Motor using permanent magnet
  • DC series-wound motor using the field coil
  • DC shunt-wound motor by starter and field resistor
  • DC compound motor
  • AC commutator motor(universal motor)
  • Rotary field of 3-phase induction motor
  • Squirrel cage induction motor
  • 2-step speed control of induction motor
  • Repulsion motor
  • Split-phase motor by condenser
