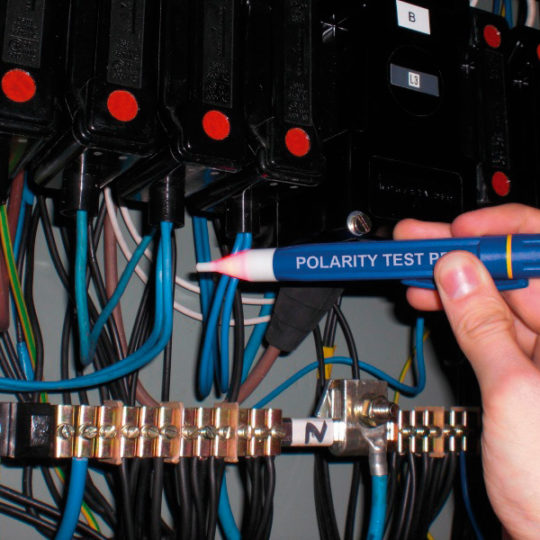

This self-testing kit comprises of two parts - a Polarity Test Pen™ plus a Test Pen Checker™, which automatically confirms that the pen is working correctly by simulating the electrical field produced by a live conductor. It is designed to give electrical engineers total confidence when looking for live conductors, particularly in bundles of cables and crowded enclosures.

The Polarity Test Pen is calibrated so its light and buzzer will only activate when the tip of the instrument is within 3mm of the live core of a standard conductor

It can therefore discriminate between individual live and non-live conductors and does not need current flow in the live conductor.

Features:

The kit comprises a Polarity Test Pen and a Test Pen Checker, which simulates the electrical field produced by a live conductor to confirm the pen is working.
Pen lights up and buzzes when it detects the electrical field surrounding a live LV insulated conductor
Lights up ONLY within 3mm of the live core of a standard conductor
Works with all standard 220-250V 50/60Hz supplies
Does not require current flow in the live conductor
Rugged construction with pen-style pocket clip
The pen is powered by two AAA batteries
To confirm proper operation of the pen, users simply insert it in the Test Pen Checker.
The Test Pen Checker can be used as a carry case for the Polarity Test Pen.
The Test Pen Checker is supplied with a clip-on lanyard.

Benefits:

Discriminates between live and non-live conductors - even in bundles of cables
More accurate than other standard conductor testers
Self-testing function ensures correct function and operator safety
Self-powered, portable and easy to use
Considered to be essential to operator safety

More products EA TECHNOLOGY

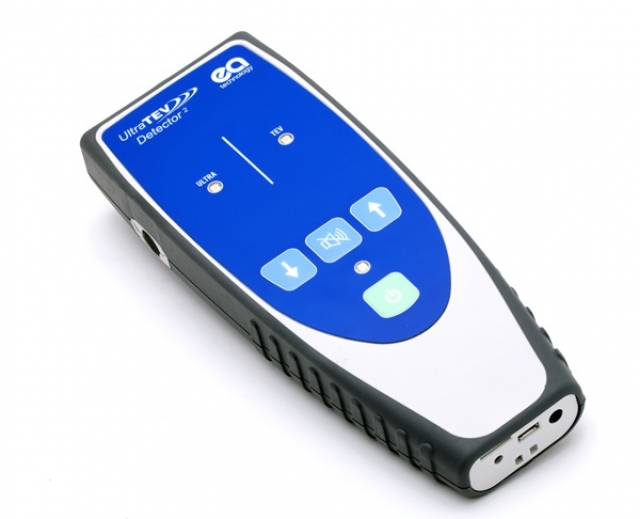

EA TECHNOLOGY ULTRATEV DETECTOR OF PARTIAL DISCHARGES

• Essential personal safety device
• Identify faults BEFORE they lead to failures
• Test for critical PD activity instantly
• Detect surface AND internal PD activity
• Minimal training requirement
• Low cost, high productivity

CABLEDATA COLLECTOR

• Detects and measures PD activity in single and 3 phase cables
• Works with all insulated cable types
• Expert cable condition analysis and reporting service
• Training available for analysis software purchasers
• Small, robust, portable and easy to use

POLARITY TEST PENS

• Discriminates between live and non-live conductors - even in bundles of cables
• More accurate than other standard conductor testers
• Self-testing function ensures correct function and operator safety
• Self-powered, portable and easy to use
• Considered to be essential to operator safety

ULTRATEV LOCATOR

• Dual probes allowing for time-of-flight PD location
• Multi-sensor, multi-function: ultrasonic and TEV, plus temperature, pressure and humidity
• Records the severity of PD for diagnostic analysis
• Multi-mode touch screen for ease of use

ALVIN RECLOSEIT

• Low cost equipment
• Low maintenance and lifetime cost
• Improved network performance
• Extended asset life: limited current flow on restart offers less stress on the asset

ULTRATEV ALARM

• Automatically transmits asset status updates via text or email
• Can be installed permanently or for a temporary survey
• No need for costly outages when installing the UltraTEV Alarm™
• Uses both Ultrasonic and Transient Earth Voltage (TEV) sensors for continuous monitoring

ALVIN LINKSENSE PROGRAMABLE ACTUATOR

• Safe and quick isolation of faults in either (manual or automatic modes)
• Internal temperature monitoring provides additional information within the linkbox environment
• Compatible with all major Link box manufacturers
• Fully sealed IP67

PD HAWK

• Uniquely fast & accurate
• Digital antenna
• Safe & easy to use
• Portable & rugged

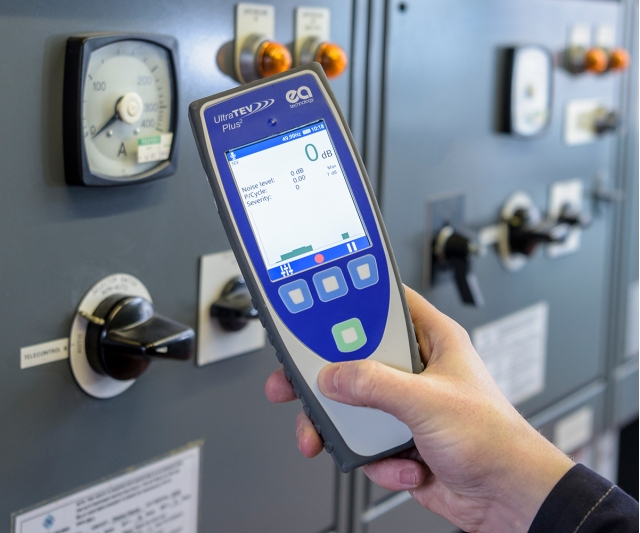

ULTRATEV PLUS PARTIAL DISCHARGE TESTER FOR ELECTRIC SYSTEMS, INSTALLATIONS, SWITCHGEARS
