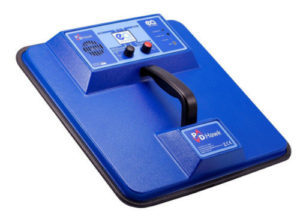

PD Hawk

Code: PD Hawk



Datasheet PDF, 1.62 Mb


Description

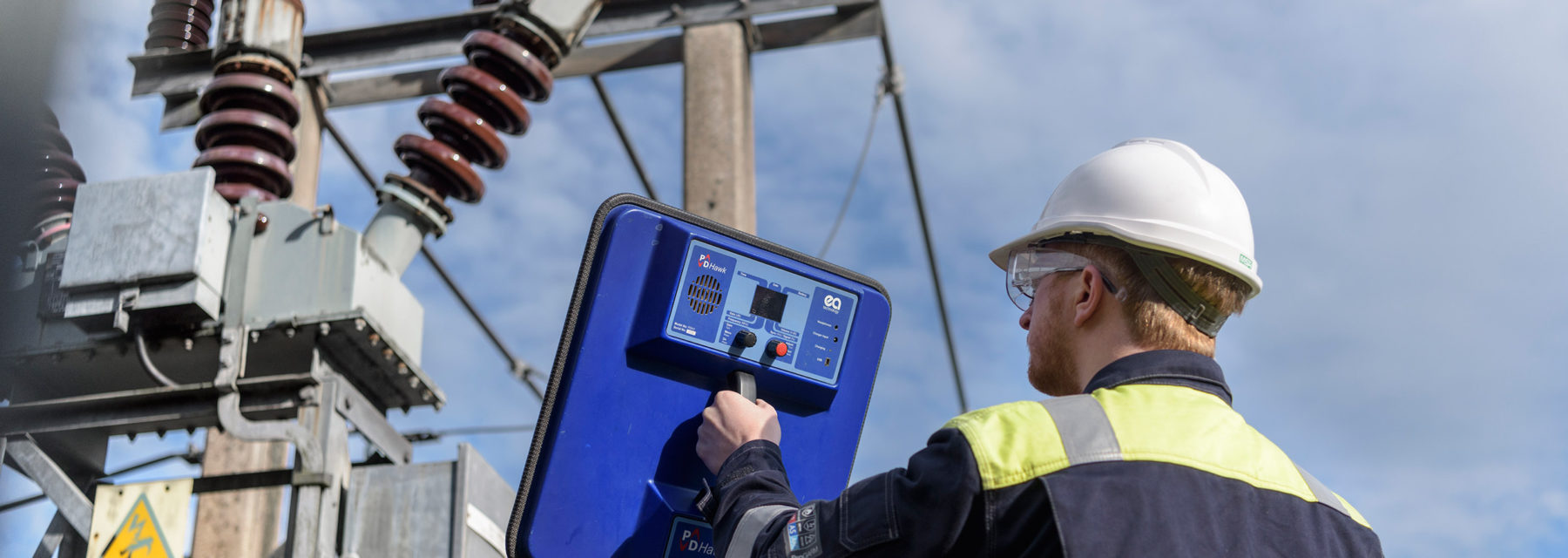

With its highly directional antenna and selectable measurement centre frequency the PD Hawk can easily be employed as a first pass safety tool for Switchyard entry or for the pinpointing and identification of individual sources as part of a full site survey.

Noise removal during PD measurements is often of concern, especially when employing UHF techniques. The PD Hawk addresses this by allowing a first pass sweep across its full 47MHz - 1GHz measurement band to allow the identification of ‘quiet’ frequencies. This simple and efficient first pass enables the user to tailor the measurement to the specific site allowing the identification of PD in subsequent measurements to be made with confidence.

The users’ confidence in PD identification and detection is further increased by the ability to listen to a heterodyned version of the emissions via the built-in speaker or headphones; whilst simultaneous being able to monitor the activity on the in-built display.

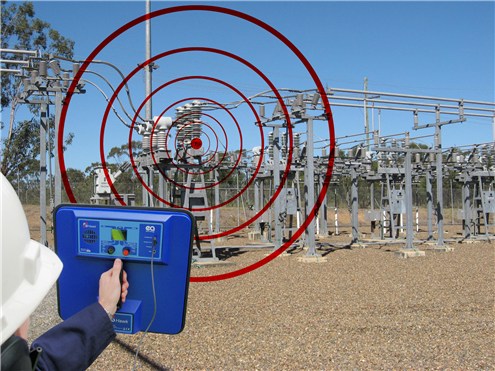

The directional antenna of the PD Hawk™ enables problems to be identified in individual switchyard assets before they fail and at a fraction of the cost of a single outage caused by undetected problems resulting in disruptive failure.



Features:

  • Uniquely fast & accurate
  • Digital antenna
  • Safe & easy to use
  • Portable & rugged
  • Android App allows the storage of data to put into reports at a later date, it also allows for results to be emailed at the time of test for immediate analysis.

Benefits:

  • Efficient coverage of large compounds allows safety first approach
  • Prevents costly failures & extends asset life
  • Rapid return on investment
  • Gathers valuable data on asset condition
  • Easy capture of data using mobile Android device


More products EA TECHNOLOGY

ULTRATEV MONITOR

• Provides valuable information on the actual condition of assets
• Enhances the effectiveness of asset management, resulting in lower cost, higher reliability energy networks
• Reduces unplanned outages
• Increases site safety


ULTRATEV LOCATOR

• Dual probes allowing for time-of-flight PD location
• Multi-sensor, multi-function: ultrasonic and TEV, plus temperature, pressure and humidity
• Records the severity of PD for diagnostic analysis
• Multi-mode touch screen for ease of use


ULTRATEV ALARM

• Automatically transmits asset status updates via text or email
• Can be installed permanently or for a temporary survey
• No need for costly outages when installing the UltraTEV Alarm™
• Uses both Ultrasonic and Transient Earth Voltage (TEV) sensors for continuous monitoring

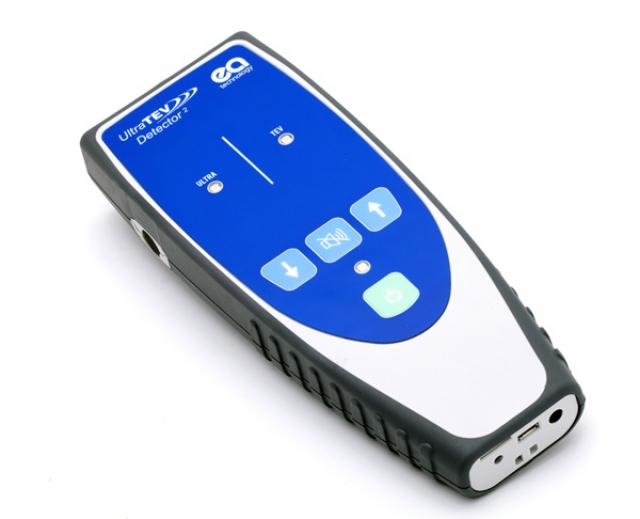

EA TECHNOLOGY ULTRATEV DETECTOR OF PARTIAL DISCHARGES

• Essential personal safety device
• Identify faults BEFORE they lead to failures
• Test for critical PD activity instantly
• Detect surface AND internal PD activity
• Minimal training requirement
• Low cost, high productivity


POLARITY TEST PENS

• Discriminates between live and non-live conductors - even in bundles of cables
• More accurate than other standard conductor testers
• Self-testing function ensures correct function and operator safety
• Self-powered, portable and easy to use
• Considered to be essential to operator safety


ALVIN LINKSENSE PROGRAMABLE ACTUATOR

• Safe and quick isolation of faults in either (manual or automatic modes)
• Internal temperature monitoring provides additional information within the linkbox environment
• Compatible with all major Link box manufacturers
• Fully sealed IP67


ALVIN RECLOSEIT

• Low cost equipment
• Low maintenance and lifetime cost
• Improved network performance
• Extended asset life: limited current flow on restart offers less stress on the asset


PD HAWK

• Uniquely fast & accurate
• Digital antenna
• Safe & easy to use
• Portable & rugged

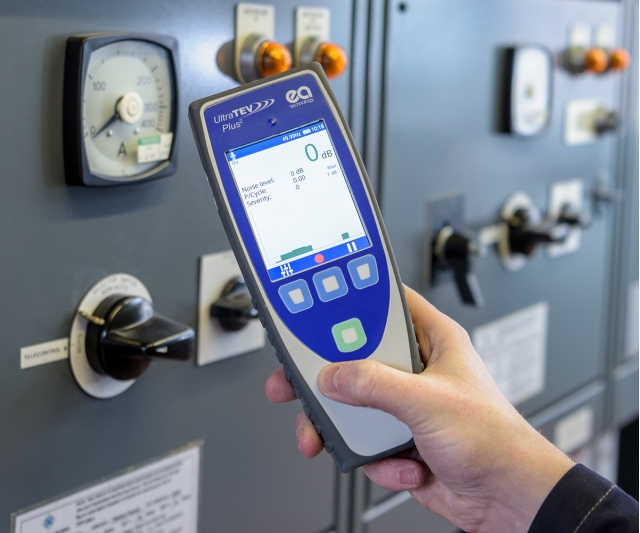

ULTRATEV PLUS PARTIAL DISCHARGE TESTER FOR ELECTRIC SYSTEMS, INSTALLATIONS, SWITCHGEARS

• The UltraTEV Plus is the most advanced PD detection instrument on the market.
• Menu-driven, backlit colour touchscreen and keyboard (can be used wearing gloves)
• Portable & rugged
• Compatible with all UltraTEV Plus+ accessories
• Long-life, rechargeable internal Lithium-Ion (Li-Ion battery)


CABLEDATA COLLECTOR

• Detects and measures PD activity in single and 3 phase cables
• Works with all insulated cable types
• Expert cable condition analysis and reporting service
• Training available for analysis software purchasers
• Small, robust, portable and easy to use
