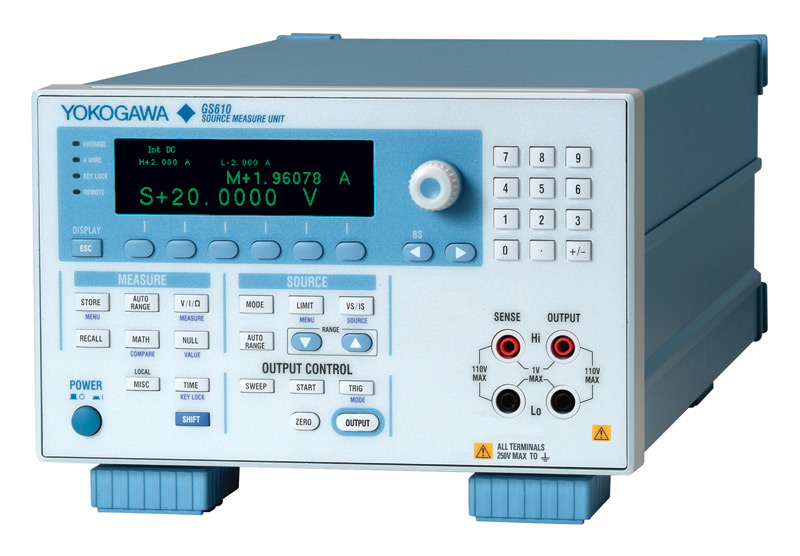

YOKOGAWA GS610 Source Measure Unit

Descriere

The GS610 is a highly accurate and highly functional programmable voltage/current source that incorporates voltage/current generation and measurement functions. The maximum output voltage and current are 110 V and 3.2 A, respectively. Evaluation of over a wide range of basic electrical characteristics is possible, because the GS610 can operate as a current source or a current sink.

Features:

• Source and sink operation up to 110 V/3.2 A (four-quadrant operation)
• Basic accuracy: ±0.02% (DC voltage generation)
• Sweep output at up to 100-µ intervals
• Comes with abundant sweep patterns (linear, logarithmic, and arbitrary)
• Stores up to 65535 points of source measure data in the internal memory
• Remote control and FTP using Web server function (Optional)
• Easy file operation with the USB storage function

Voltage/Current Generation and Measurement Range

Four-dimensional operation with source operation (current source) and sink operation (current sink) is possible at up to 110 V, 3.2 A, and 60 W.

The output and measurement resolutions are 5.5 digits.

Voltage generation/measurement range: 200 mV to 110 V
Current generation/measurement range: 20 µA to 3.2 A

Maximum output current:

• ±3.2 A & (at an output voltage of ±12 V or less)
• ±2 A (at an output voltage of ±30 V or less)
• ±1 A (at an output voltage of ±60 V or less)
• ±0.5 A (at an output voltage of ±110 V or less)

Generation and Measurement Functions

The GS610 is made up of a constant current source, a constant voltage source, a voltmeter, and an ammeter. Each function can be combined into numerous operation modes.

Operation modes:

• Voltage generation/current measurement (VS/IM);
• Voltage generation/voltage measurement (VS/VM);
• Current generation/voltage measurement (IS/VM);
• Current generation/current measurement (IS/IM);
• Voltage generation (VS);
• Current generation (IS);
• Resistance measurement (VS/IM or IS/VM)
