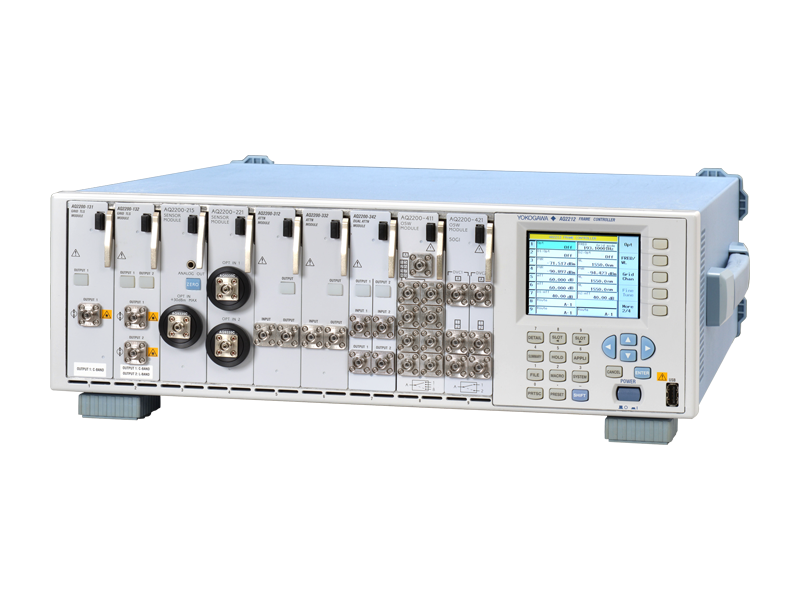

YOKOGAWA AQ2212 Frame Controller (9 Slots)

Cod: YOKOGAWA AQ2212 Frame Controller (9 Slots)




Brosura produs PDF, 7.22 Mb

Descriere

The AQ2211 and AQ2212 frame controllers are platforms for the AQ2200 Multi Application Test System. These frame controllers contain a variety of measurement applications that enable you to get the information you need without connecting an external controller PC. In addition, they have three different external interfaces, so you can always use the best interface for a particular measurement application.



Features:

  • Easy-to-view color display
  • USB port for data storage
  • Measurement module "hot-swapping" capability
  • Remote monitoring and measurement through a LAN
