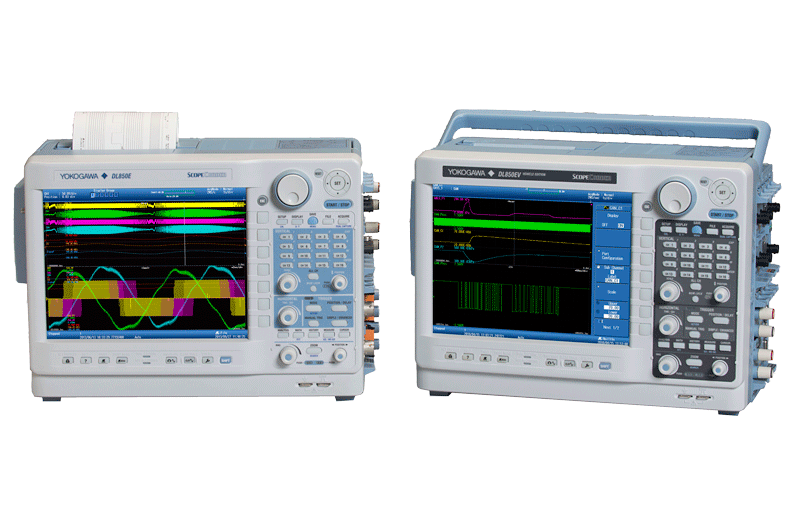

YOKOGAWA - DL850E DL850EV ScopeCorder

Cod: YOKOGAWA - DL850E DL850EV ScopeCorder




Brosura produs PDF, 5.67 Mb


Descriere

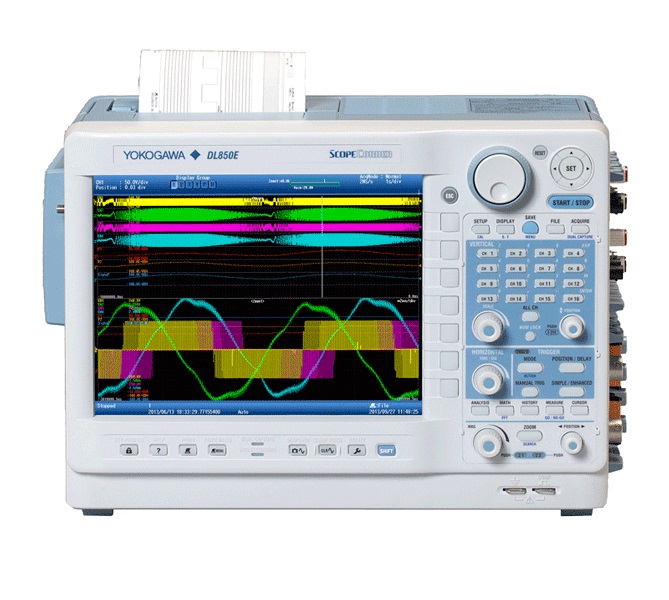

ScopeCorder DL850E combines a mixed signal oscilloscope and portable data acquisition recorder into a modular platform designed to capture both high-speed transients and low speed trends. Using flexible modular I/O with built-in signal conditioning, precisely measure electrical, physical sensor signals and CAN/ LIN / SENT serial bus for applications ranging from R&D research to in-vehicle data logging.

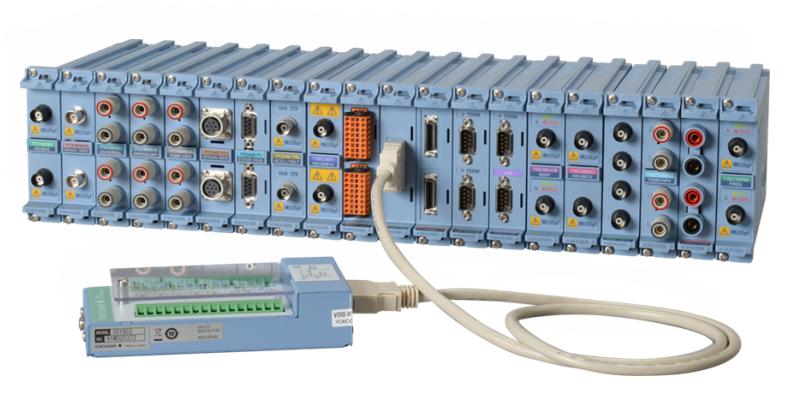

Flexible and Swappable Input Modules With Built-in Signal Conditioning

Choose from 20 types of input module and install up to 8 in a ScopeCorder at a time to configure a ScopeCorder up to 128 channels.

  • Voltage & Currents
  • Sensor Outputs
  • Temperature, Vibration/Acceleration, Strain, Frequency
  • Logic Signals & CAN / LIN and SENT

Precise Measurement of Fast Switching Signals Even in the Harshest Environments

Individually isolated and shielded input channels provide high-resolution and high sample rates.



Real-Time Evaluation of Dynamic Behavior within Power Applications

Trend calculations such as active power, power factor, integrated power, harmonics and more using the new power math option.



A Trustworthy Measurement Platform for Durability Testing

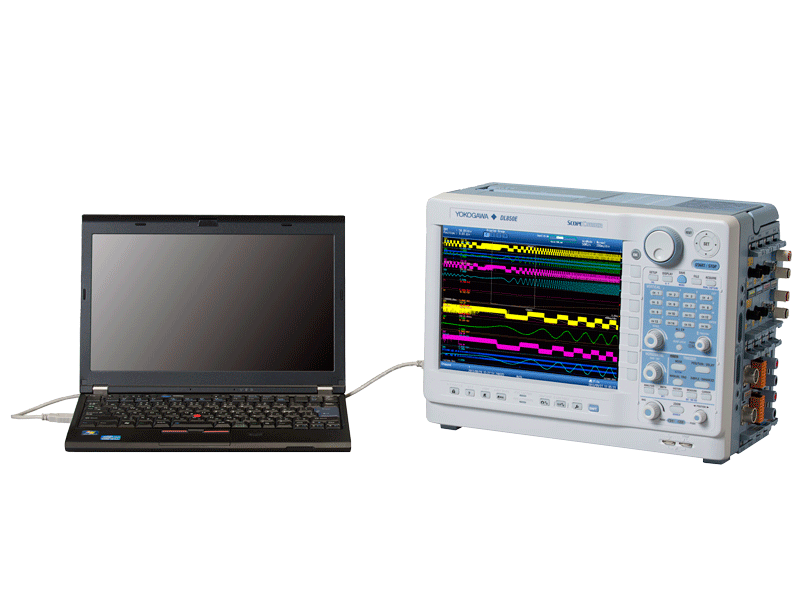

Measurement recording up to 200 days to the large 2 Gpoint acquisition memory, the internal hard disk and/or PC hard disk.



Reduce Time Spent on Fault Finding

Capture transient signals even during long term measurements using powerful triggers and unique features such as dual capture & history memory.



Fast and Large Acquisition Memory

A ScopeCorder is equipped with a large & fast acquisition memory up to 2Gpoint and enables high sample rates of up to 100MS/s on multiple channels simultaneously. This is ideal for viewing multiple inverter switching outputs simultaneously.

  • Standard memory 250MPoint
  • Expanded memory 1GPoint (/M1 Option)
  • Expanded memory 2GPoint (/M2 Option)



Giga Zoom Engine II

Zoom into 2 Billion samples in just a blink of the eye. Each ScopeCorder is equipped with the revolutionary Giga Zoom Engine II, a powerful processor designed for optimizing access to data seamlessly. It is possible to activate 2 zoom windows while displaying the entire original signal.
