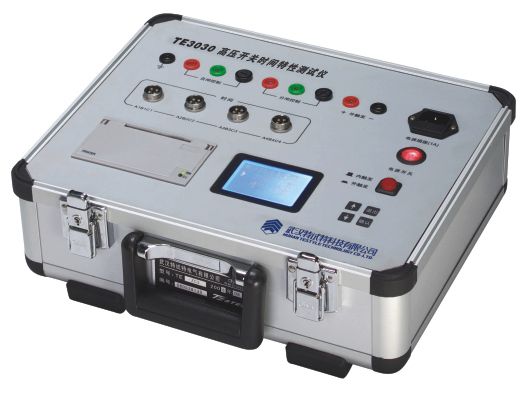

TE3030 High Voltage Circuit Breaker Characteristics Tester, a popular high voltage test equipment in China, it is widely used to test live tank oil, bulk-oil, vacuum, SF6 and other models, with different voltage level of high voltage circuit breaker, can also be used for opening and closing & contemporaneous performance of the low-voltage electrical appliances such as contactors, relays.In accordance with IEC standards IEC 62271-100:2008 High-voltage switchgear and control gear - Part 100: Alternating-current circuit-breakers .

(1) Simple to operate: characters LCD display, and menu operation, to print a variety of test data
(2) Special software and hardware anti-interference design, the test data is very reliable.
(3) A complete test items, can test opening and closing, bounce times, bounce time, losing (tripping) time and losing (tripping) contemporaneous performance.

Power Supply	Voltage : AC220V±10% Frequency : 50Hz±1Hz
Executive Standard	IEC 62271-100:2008 High-voltage switchgear and control gear - Part 100: Alternating-current circuit-breakers
Service condition	Ambient temperature : -10?~40? Relative humidity : =80%
Dimensions	Length350mmWidth280mmHeight160mm
Weight	4Kg(Exclude accessories)
Measurement Accuracy	The Measurement Accuracy of the instrument is ±(0.2%�reading+1 digit)
Security	Insulation resistance: under voltage DC500V >20MO
	Leakage current : <3.5mA
	Dielectric Strength: Power connection line on the chassis can withstand 1500V (50Hz RMS) 1 minute.
Test methods	Tripping(closing) test: test time=3s
	Test channel:12 circuit breakers time ,1 circuit breaker speed
	Resolution:100 Microseconds
