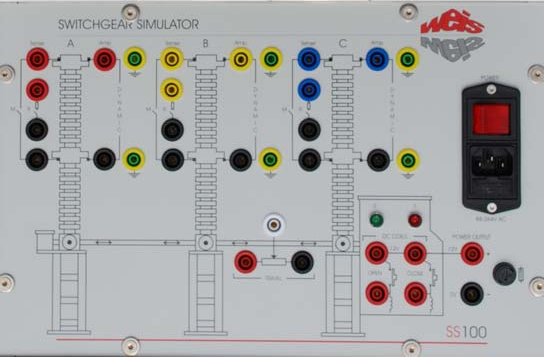

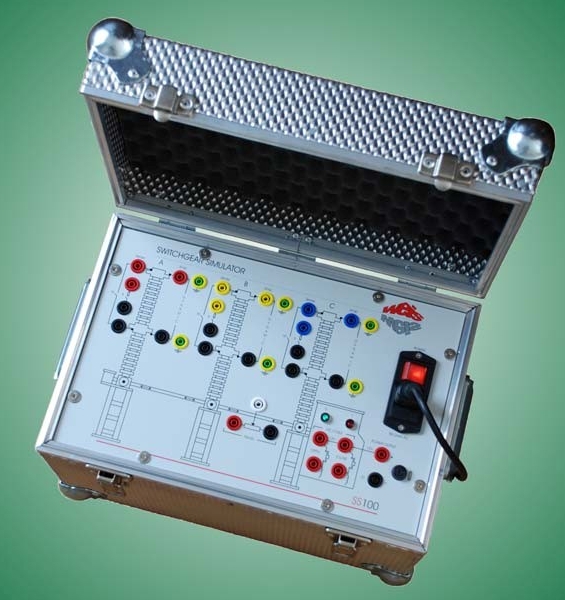

Simulator de test inrerupatoare si contacte rezistive Weis SS100

• can be performed coil operation, current measurement, main contact timing
• resistive contact timing, travel and velocity measurements, trip free testing
• dynamic timing with both ends earthed
• parallel contact switching resistor measurement
• Simulation of contact timing with 3 Main and 3 Resistive breaks



• 8 TO 32 ANALOGUE CHANNELS
• 16 TO 128 DIGITAL CHANNELS
• 12-BIT A/D RESOLUTION
• FAULT RECORDER VIEWER 32-BIT SOFTWARE FOR COMMUNICATION, CONFIGURATION AND ANALYSIS



• AC Power: 0..280V AC, 30A peak
• DC Power: 0..280V DC, 30A peak
• variable power source, mainly for Switchgear Testing
• nstrument intended for use in Power Station, Substation & industrial environments
• ideal alternative power source for testing the breaker
• minimum operating voltage testing of breaker coils



• typically 600A DC current output, limited to 750A DC, dependant on loop impedance
• Resistance Range: 0 to 199.9µ? or 0 to 1999µ?
• Resolution: 0.1 or 1µO (range dependant)
• self powered with Internal sealed rechargeable batteries



• ROBUST SWITCHGEAR TEST AND ANALYSIS SYSTEM FOR PORTABLE OR FACTORY USE
• SOFTWARE WIZARD TO SIMPLIFY TEST CONFIGURATION
• COMPUTED RESULTS WITH CUSTOM REPORT FORMAT FEATURE, REDUCING TEST TIME
• CREATE A ELECTRONIC LIBRARY OF BREAKER TEST SETTINGS AND SIGNATURES
• 12.1" HIGH-BRIGHT SUNLIGHT READABLE COLOUR TFT DISPLAY
• INDENPENDENT CONTROL OF TRIP AND CLOSE AC OR DC COILS PER PHASE WITH 5 OR 30AMP



• 100A or 200A pure DC current output
• Resistance Range: 0 to 199.9µ? or 0 to 1999µ?
• Resolution: 0.1 or 1µO (range dependant)
• self powered with Internal sealed rechargeable batteries



• Contact Resistance Threshold: 15 - 10,000 ohms
• Digital Resolution: 100µSec
• Up to a sequence of 3 operations detailing 3-phase information: Peak coil current, operate times and operate time spread (main / resistive), bounce time.
• Test times: Close, Open, Trip Free, Close-Open, Open-Close, Open-Close-Open.
• Coil operate times: Initial delay, trip coil "on-time", close coil "on-time", delay time between closing and opening, delay time between opening and closing.
• Backlit 4 line x 40 character LCD display, Alpha / numeric keypad
• Built in printer, RJ45 network port, RS232, Audible buzzer, PS2 socket, VGA port
• extremely light-weight & quick tool to check basic Circuit Breaker Timing
• intended for use in Power Station, Substation & industrial environments



• AC Power: 0..280V AC, 50A peak
• DC Power: 0..280V DC, 50A peak
• variable power source, mainly for Switchgear Testing
• nstrument intended for use in Power Station, Substation & industrial environments
• ideal alternative power source for testing the breaker
• minimum operating voltage testing of breaker coils



• 100A continuous or pulsed current output
• high current pulsed output, 1200A maximum at 4V
• Range: 0 to 1.999 or 19.99mO (selectable)
• Resolution: 1 or 10µO (range selected)
• self powered with Internal sealed rechargeable batteries



• designed for the testing of protective relay equipment
• for use in high voltage substations and industrial environments
• Output parameters are displayed on a large backlit LCD display
• True RMS AC Measurement
