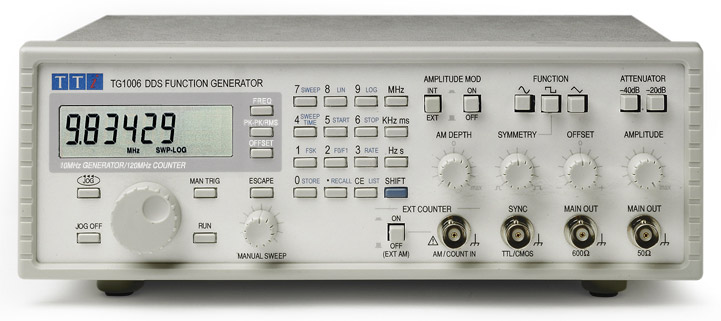

Generator digital de functii 10 MHz cu Frecventmetru TTi TG1006

Cod: TTi TG1006




Brosura produs PDF, 0.45 Mb

Descriere

  • 0.001Hz to 10MHz frequency range
  • 6 digits or 1mHz resolution
  • 1ppm stability and 10ppm one year accuracy
  • Low distortion, high spectral purity sine waves
  • Internal phase continuous sweep, lin or log
  • Unique manual sweep gives quasi-analog control
  • AM and FSK modes, frequency list (10 steps)
  • 2mV to 20V pk-pk from 50 or 600 Ohms
  • Built-in seven digit 120MHz frequency counter
  • Low cost
