Generator analogic de functii 20 MHz TTi TG120

• 0.03Hz to 3MHz frequency range
• External seven digit 120MHz counter
• Simultaneous display of frequency & amplitude
• High waveform quality at all frequencies & levels
• 2mV to 20V pk-pk from 50 Ohms or 600 Ohms



• 0.1Hz to 10MHz frequency range
• Independent control of pulse frequency, width and delay
• 50ns minimum pulse width
• Squarewave, double pulse & delayed pulse modes
• Free-run, gated and triggered modes
• 50 Ohm output: 0.1V to 10V amplitude



• 1 µHz to 25 MHz range(sine and square)
• 1 µHz resolution
• 128K points at up to 125MS/s Arbitrary waveforms
• True pulse generator with variable delay and variable rise/fall

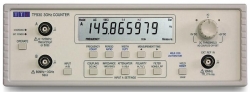

• Frequency, period, pulse width, frequency ratio, duty cycle, and event counter modes
• DC to 6000MHz range, 0.001mHz resolution
• High impedance measurement up to 125 MHz
• AC or DC coupling, 1M/50Ohm selection, polarity invert
• Switchable attenuator, threshold control



• Wide voltage and current range, 0 to 80 V and 0 to 80 A
• 300 watts continuous dissipation at 40 degrees C
• Versatile solution for testing dc power sources



• 10 MHz to 1 GHz frequency range
• 1 kHz setability, +/-2ppm frequency stability
• -127 dBm to +7dBm amplitude, 0.1dB steps
• FM modulation, internal or external



• Up to 60 volts and up to 50 amps maximum
• PowerFlex design gives variable voltage & current combinations
• Higher current capability at lower voltages



• 0.03Hz to 3MHz frequency range
• External seven digit 120MHz counter
• Precision internal lin/log sweep
• Internal/external AM up to 100%
• Simultaneous display of frequency & amplitude
• High waveform quality at all frequencies & levels
• 2mV to 20V pk-pk from 50 Ohms or 600 Ohms



• 1 µHz to 50 MHz range(sine and square)
• 1 µHz resolution
• 128K points at up to 125MS/s Arbitrary waveforms
• True pulse generator with variable delay and variable rise/fall



• 30W to 130W Linear, Single, Dual & Triple Output
• Independent digital voltage and current meters for each output
• 4 digit resolution
• Switchable local or remote sensing
• Constant voltage or constant current operation
