Certificator CAT6 retele cablu LAN cf.ISO Clasa E Ideal Industries LanTEK II-350 33-991
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Ideal-Industries LanTEK-II-350 33-991



Brosura produs PDF, 0.66 Mb


Descriere

Product

number

Productname

ISO Class certifier and Adapters

33-991

LanTEK II-350

TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6 adapters

33-992

LanTEK II-500

TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6Aadapters

33-993

LanTEK II-1000

TIA/EIA Cat. 7A, ISO Class F/FA certifier w/ Cat. 6Aadapters



  • Frequency range of 350 MHz
  • LAN cable certification to ISO Class E / Category 6 standard





  • Fast test speeds - 11-second Class D/Cat 5e and 14-second Class E/Cat 6 autotest times that include full graphical data storage
  • Patented test method - certify with off-the-shelf patch cords eliminating the need for expensive permanent link adapters
  • Unique FiberTEK® FDX modules - fastest and easiest fibre certification
  • DualMODE function - certify to two different standards with one press of the Autotest button
  • Maximum reporting power with the new IDEAL DataCENTER (IDC) software
  • Enormous memory capacity - save an astonishing 1,700 ISO Category 6 / Class E results with graphs
  • Smart lithium battery technology - amazing 18 hours of field use

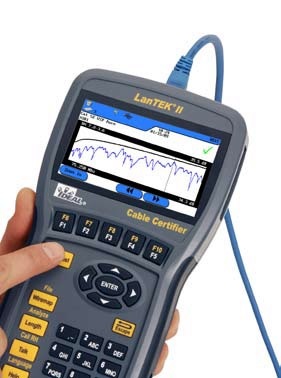

  • 11 cm widescreen display - superb with 160° viewing angle
  • Accuracy independently verified by ETL
  • Contents:
  • LanTEK® II Display and Remote Handset, two smart lithium ion batteries, two 110-240V power adapters
    with US/EU/UK plugs, lockable semi-rigid carrying case, Cat6A F/FTP patch cords, USB cable, IDEAL
  • DataCENTER data management and reporting software, two headsets, hanging straps, calibration, and ETL accuracy certificate, quick reference guide, user manual on CD.


Accesorii standard

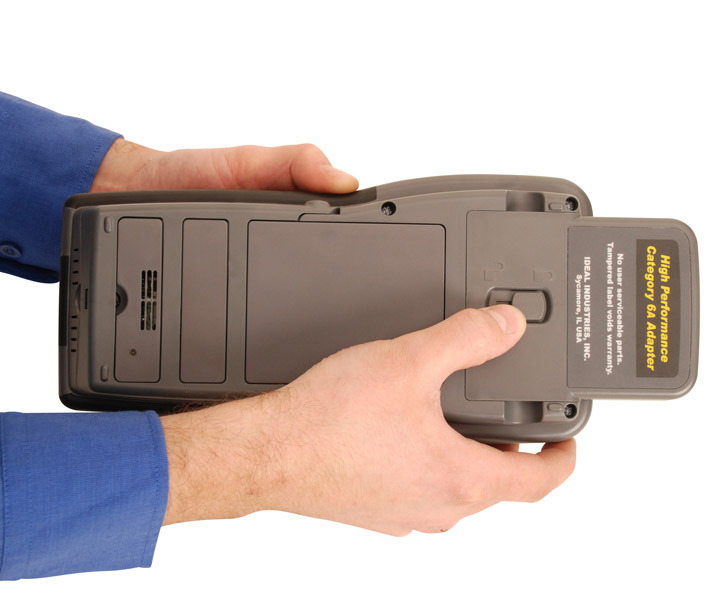

33-991 LanTEK II-350: TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6 adapters

33-992 LanTEK II-500: TIA/EIA Cat. 6A, ISO Class EA certifier w/ Cat. 6A adapters

33-993 LanTEK II-1000: TIA/EIA Cat, 7A, ISO Class F/FA certifier w/ Cat. 6A adapters

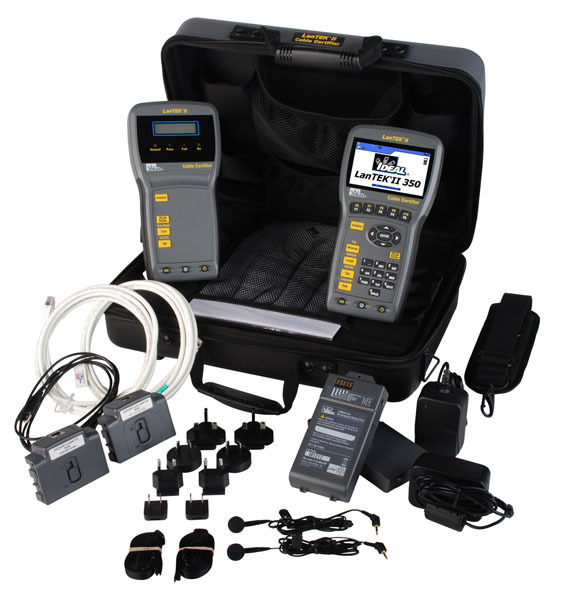

Contents:

  • LanTEK® II Display
  • Remote Handset
  • 2 x smart lithium ion batteries
  • 2 x 110-240V power adapters with US/EU/UK plugs,
  • lockable semi-rigid carrying case,
  • Cat. 6A F/FTP patch cords,
  • USB cable,
  • IDEAL DataCENTER data management and reporting software,
  • 2 x  headsets,
  • hanging straps,
  • calibration and ETL accuracy certificate,
  • quick reference guide,
  • user manual on CD.







Optiuni recomandate

33-990-FA01 FiberTEK® FDX Multimode (850/1300nm) kit with LED light sources for standard multi-mode fiber, 850nm LED, 1300nm LED



33-990-FA02 FiberTEK® FDX Multimode (850/1300nm) kit with VCSEL/laser light sources for laser optimized fiber, 850nm VCSEL, 1300nm FP laser



33-990-FA03 FiberTEK® FDX Single mode (1310/1550nm) kit with laser light sources for single mode fiber, 1310nm FP laser, 1550nm FP laser



33-990-FA04 FiberTEK® FDX Combination MM/SM kit with LED MM sources and laser SM sources (33-990-FA01 & 33-990-FA03)



33-990-FA05 FiberTEK® FDX Combination MM/SM kit with VCSEL/laser MM sources and laser SM sources (33-990-FA02 & 33-990-FA03)



Contents:

  • 2 x  FiberTEK® FDX modules,
  • semi-rigid carrying case,
  • SC, FC, ST adapters for modules (2 ea),
  • SC-SC patch cords (MM kits: 3 x 62.5µm, 3 x 50 µm;  SM kits: 3 x 9 µm) compliant to ISO/IEC 14763-3 standard,
  • quick reference guide,
  • electronic operation manual.
