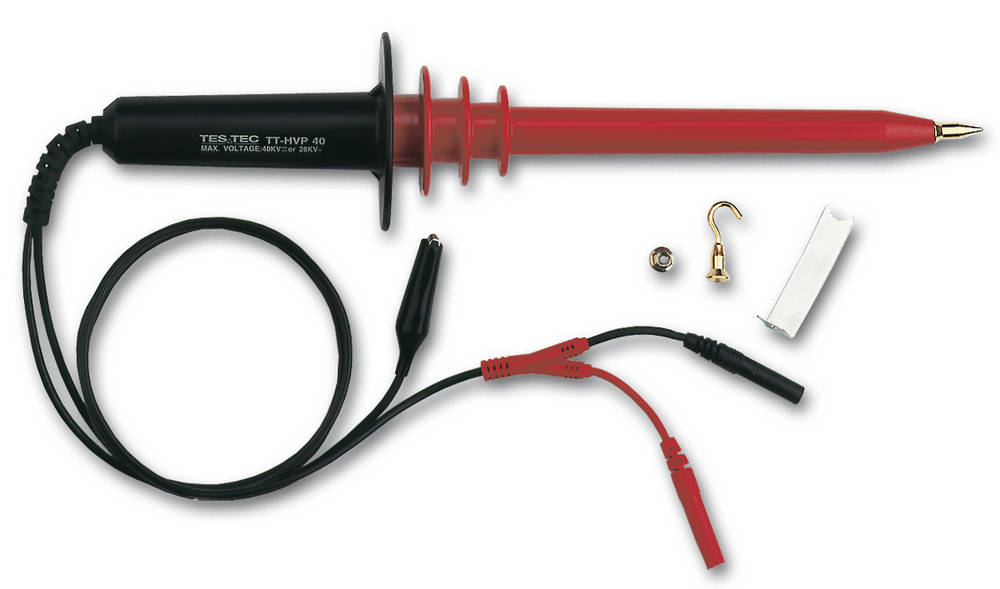

Sonda inalta tensiune osciloscop 40kV Testec TT-HVP40

Cod: Testec TT-HVP40

Descriere

TT-HVP 40 1000:1, 300Hz

Attenuation Ratio: x1000 @ 10 Ω, x2000 @ 1 Ω

Input Impedance: 1000 Ω

Bandwidth: 300 Hz (-3dB)

Max. Input Voltage: DC 40kV, AC 28kVrms (0..300Hz)

Cable Length: 1,0 m

Dimensions (L x W x H): 350mm x 75mm x 75mm

IEC1010: CAT I Pollution Degree 2

Alte produse TESTEC

SONDA ACTIVA DIFERENTIALA OSCILOSCOP 25MHZ TESTEC TT-SI

• TT-SI 9001 1:10 / 1:100, 25MHz
• TT-SI 9002 1:20 / 1:200, 25MHz

SONDA PASIVA OSCILOSCOP ATENUARE 10X TESTEC TT-MF200

• TT-MF 212 10:1 - 1,2m, 250MHz
• TT-MF 216 10:1 - 1,6m, 220MHz
• TT-MF 220 10:1 - 2,0m, 190MHz

SONDA DE CURENT OSCILOSCOP INALTA PRECIZIE DC..5MHZ TTI I-PROBER 520

• I-prober 520 - PCB track Touch & Measure
• Current measurement from insulated probing of conductor
• Suitable for observation and measurement of current in PCB tracks, component leads and ground planes
• Wide dynamic range of 10mA to 20A peak to peak
• Wide bandwidth of DC to 5MHz
• Low noise figure equivalent to <6mA rms at full B/W

SONDA TENSIUNE OSCILOSCOP ATENUARE 1X/10X TESTEC TT-HF300

• TT-HF 312 1:1/10:1 - 1,2m, 30MHz/300MHz
• TT-HF 320 1:1/10:1 - 2,0m, 15MHz/230MHz

SONDA ACTIVA DIFERENTIALA OSCILOSCOP 200MHZ TESTEC TT-SI200

• TT-SI 200 1:10, 200MHz
• Bandwidth: 200MHz
• Attenuation Ratio: : x10
• Accuracy: �± 1%
• Rise Time: 1,75ns
• Input Impedance: 500kW / 7pF

SONDA INALTA TENSIUNE OSCILOSCOP CU READOUT ATENUARE 100X TESTEC TT-HV

• TT-HV 150RA Readout 100:1, 300MHz
• TT-HV 151RA Readout 100:1, 200MHz
• TT-HV 250RA Readout 100:1, 300MHz
• TT-HV 250RA Readout 100:1, 300MHz

SONDA ACTIVA DIFERENTIALA INALTA TENSIUNE PENTRU OSCILOSCOP 70MHZ TESTEC TT-SI9010

• TT-SI 9010 1:100 / 1:1000, 70MHz
• TT-SI 9010A 1:100 / 1:1000, 70MHz

SONDA PASIVA OSCILOSCOP ATENUARE 1X/10X TESTEC TT-MF300

• TT-MF 312 1:1/10:1 1,2m, 20MHz/250MHz
• TT-MF 316 1:1/10:1 - 1,6m, 13MHz/220MHz
• TT-MF 320 1:1/10:1 - 2,0m, 10MHz/190MHz

SONDA TENSIUNE OSCILOSCOP ATENUARE 10X FRECVENTA INALTA TESTEC TT-HF400

• TT-HF 412 10:1 - 1,2m, 350MHz
• TT-HF 420 10:1 - 2,0m, 270MHz

SONDA DE TEST SMD-URI PENTRU MULTIMETRU, RLC-METRU TESTEC TT-22100

• TT-22100 Cable Length: 100cm, Connector: 2x 4mm Plug
• TT-22110 Max. Current: 2A, Connector: BNC-Plug
