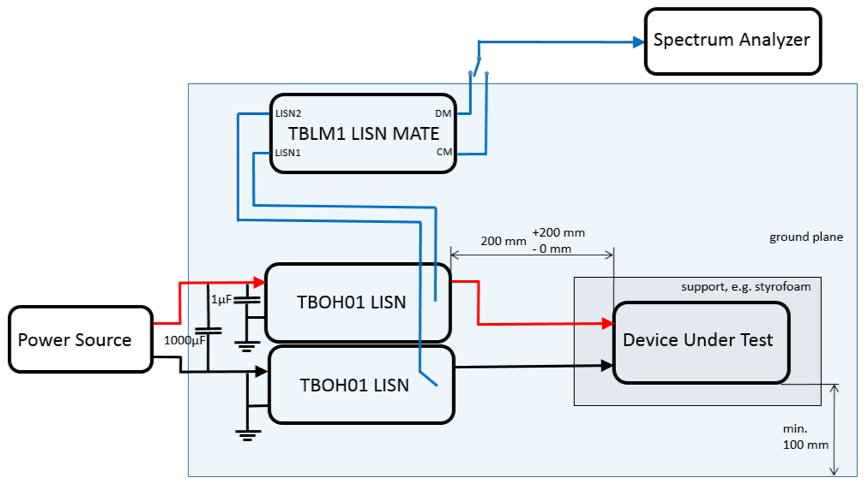

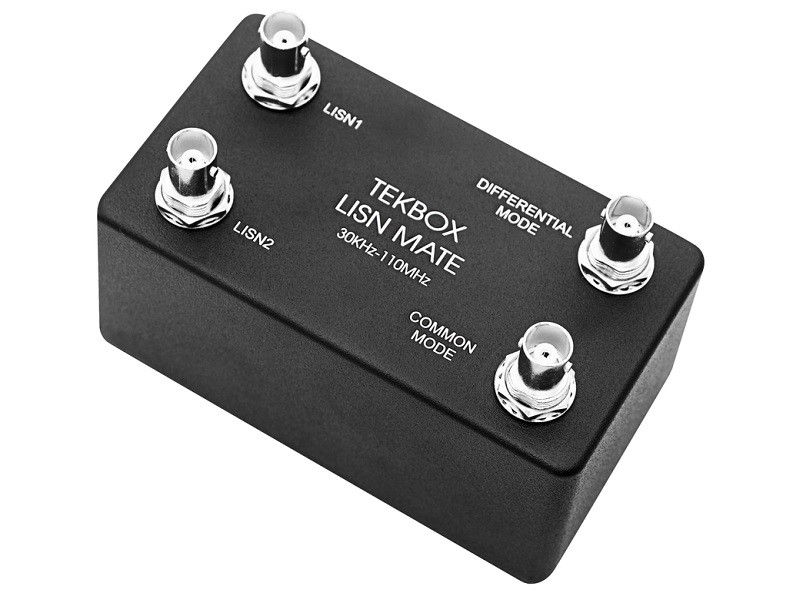

The TBLM1 LISN Mate is a companion device for LISNs, which splits the conducted noise signal into its common mode and differential mode components. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line.

The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate splits it into the common mode and differential mode components, with each signal component available at a separate BNC port.

Features:

Frequency range: 30 kHz ½ 110 MHz
Maximum RF level at any BNC port: 27dBm
Maximum DC current at any BNC port: 30 mA
