SV 105B Triaxial Hand-Arm Accelerometer

Cod: SVANTEK SV 105B




Brosura produs PDF, 0.11 Mb


Descriere

SV 105B Triaxial Hand-Arm Accelerometer is is dedicated to Human Vibration measurements performed according to ISO 5349-2 with SV 106A six channel analyser.

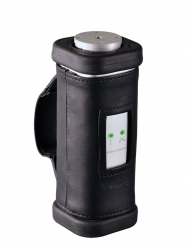

For in-situ checks and peridic verification of the SV 105B the SA 105B adapter (option) is necessary. The accelerometer has TEDS memory that remembers the calibration factor transferred to SV 106A instrument.

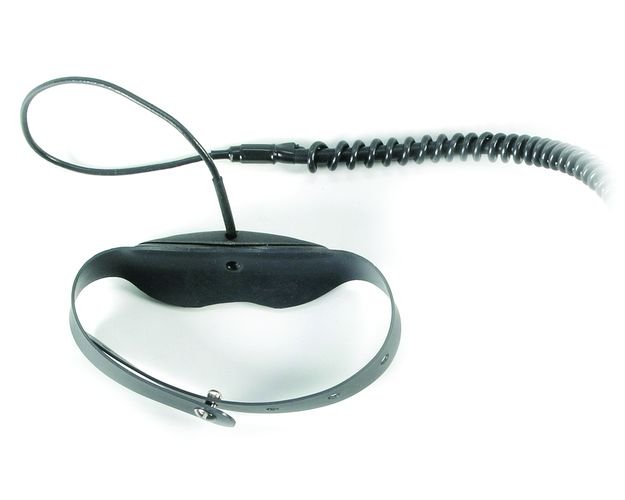

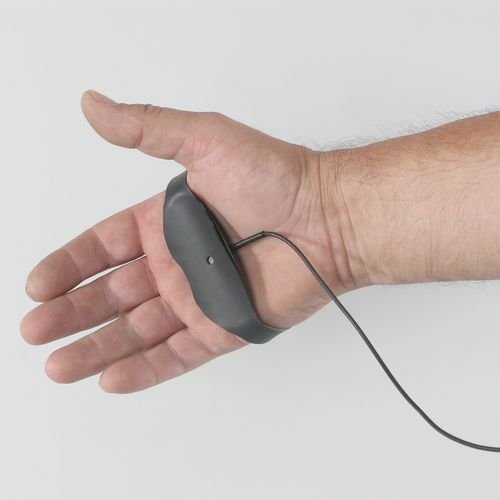

Accelerometer is supplied with three adapters to perfectly match the grip of different vibrating tools: SA 150B, SA 151B and SA 152B. Each adapter includes an adjustable rubber strap for firm and comfortable attaching the accelerometer to the human½s hand. This solution significantly limits disturbances to the operator who doesn½t have to worry about holding the accelerometer.



Features:

  • Meets ISO 8041 and ISO 5349
  • Low-power consumption
  • No disturbance to operator
  • Dedicated to SV 106A instrument
  • TEDS memory
