Silverwing - RMS2 U Sistem mapare zone corozive cu ultrasunete

Descriere

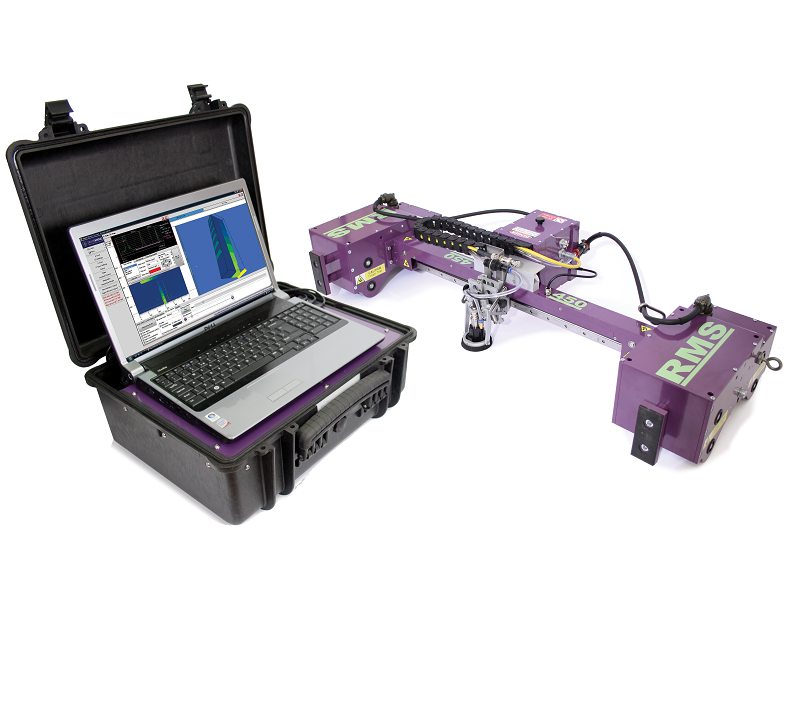

RMS2 is a high-speed, high-accuracy remote-access ultrasonic corrosion mapping system. It is designed to assess the condition storage tanks, pipelines, pressure vessels, and other critical equipment. It fits well in inspection programs supporting integrity management processes, ensuring effective and safe operation.

Features:

• Automated/Remote-access UT scanner
• High-speed ultrasonic testing
• High probability of corrosion detection with up to 0.5 mm (0.02 in) scan grid
• Import inspection data to CMAP
• Range of scanning heads
• Inspection confidence
• Field-proven durability and reliability
• Helps reduce maintenance costs by minimizing use of scaffolding
• No paint removal required
• Real-time image display
• Wide range of applications up to 200 °C (392 °F)
• Inspect materials as thick as 150 mm (5.9 in)
• 3D data view for internal/external profiles
• Can be used on any ferrous item from 152.4 mm (6in) NB to flat plates
• Longitudinal scanning head for increased productivity on crude oil transfer lines, slug catchers, and the like
• Up to 50 m (164 ft) long × 1 m (3.3 ft) wide scan data acquisitions, feasible in one location

Ultrasonic Scanners:

RMS2-600

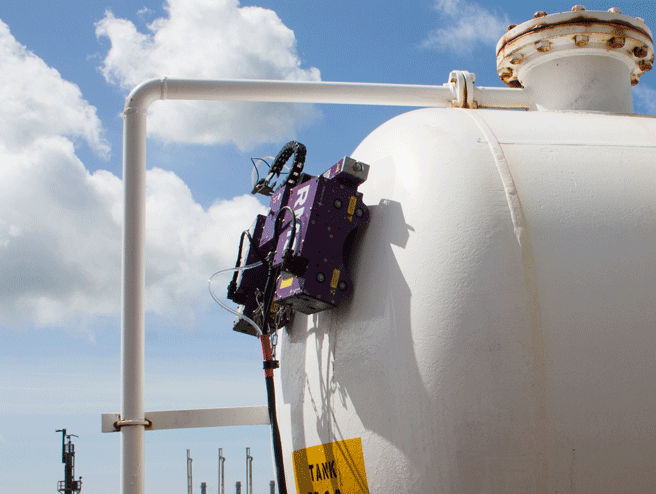

The RMS2-600 scanner head is designed to maximize scanning rates on large surfaces such as tank shells, pressure vessels, and other structures.

• 600 mm (23.6 in) scan bridge
• Designed to inspect large surfaces
• Storage tank shells, horizontal tanks, pressure vessels, spheres, ship hulls, large structures

RMS2-450

The RMS2-450 scanner head is designed for circumferential operation on curved surfaces from 152 mm (6 in) in diameter to flat surfaces.

• 450 mm (17.7 in) scan bridge
• Designed to inspect the circumference of curved surfaces
• Pipelines, pressure vessels, horizontal tanks, other structures where circumferential inspection is necessary

RMS2-300

The RMS2-300 scanner head is a general-purpose scanner to inspect areas with limited access or other applications where smaller scan widths are necessary.

• 300 mm (11.8 in) scan bridge
• Designed to inspect limited-access areas
• Storage tank shells, horizontal storage tanks, pressure vessels , spheres, ship hulls, large structures

RMS2-ARC

The RMS-ARC 24 -36 and 36-48 are designed to operate longitudinally on pipes 610-1219 mm (24-48 in) in diameter. The combination of longitudinal pipe scans and 60° width is a major improvement to ultrasonic testing (UT) efficiency in pipeline applications, while maintaining the high data quality associated for which RMS2 is known for.

• Up to 1 m (3.3 ft) scan bridge
• Designed to inspect pipe 610-1219 mm (24-48 in) in diameter longitudinally
• Pipelines, slug catchers
