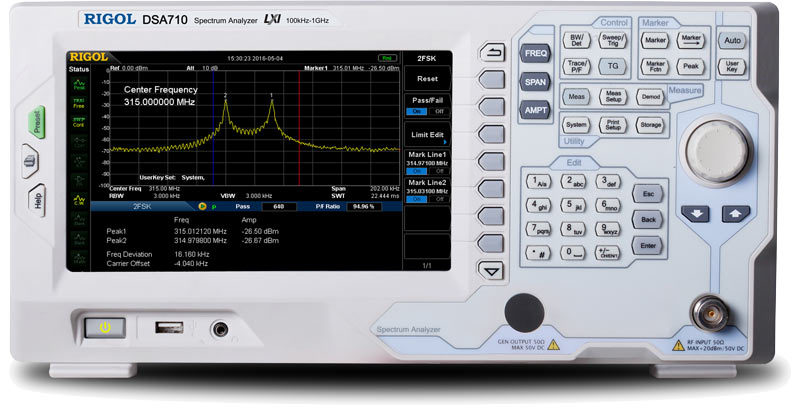

RIGOL DSA710 Analizor de spectru 1GHz

Cod: RIGOL DSA710



Brosura produs PDF, 5.49 Mb

Descriere

DSA705          100 kHz to 500MHz Spectrum Analyzer

DSA710          100 kHz to 1 GHz Spectrum Analyzer



? All-Digital IF Technology

? Frequency Range from 100 kHz up to 1 GHz

? Min. -130 dBm Displayed Average Noise Level (Typ.)

? Min. <-80 dBc/Hz @ 10 kHz Offset Phase Noise

? Level Measurement Uncertainty <1.5 dB

? 100 Hz Minimum Resolution Bandwidth

? Advanced Measurement Functions (Opt.)

? EMI Filter & Quasi-Peak Detector Kit (Opt.)

? PC Software (Opt.)

? Optional RF TX/RX Training Kit

? Optional RF Accessories (Cable, Adaptor, Attenuator ...)

? Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)

? 8 Inch WVGA (800×480) Display

? Compact Size, Light Weight Design



Accesorii standard

Spectrum analyzer, 100 kHz to 500 MHz (with preamplifier) DSA705

Spectrum analyzer, 100 kHz to 1 GHz (with preamplifier) DSA710

Standard accessories:

quick guide (hard copy) -

power cable -



Optiuni recomandate

Options

EMI filter & quasi-peak detector EMI-DSA800

advanced measurement kit AMK-DSA800

DSA PC software Ultra Spectrum

signal seamless capture SSC-DSA



Optional accessories

include: N-SMA cable, BNC-BNC cable, N-BNC adaptor, N-SMA adaptor, 75 O to 50 O adaptor, 900 MHz/1.8 GHz antenna (2pcs), 2.4 GHz antenna (2pcs) DSA Utility Kit



include: N(F)-N(F) adaptor (1pcs), N(M)-N(M) adaptor (1pcs), N(M)-SMA(F) adaptor (2pcs), N(M)-BNC(F) adaptor (2pcs), SMA(F)-SMA(F) adaptor (1pcs), SMA(M)-SMA(M) adaptor (1pcs), BNC T type adaptor (1pcs), 50 O SMA load (1pcs), 50 O BNC impedance adaptor

(1pcs) RF Adaptor Kit



include: 50 O to 75 O adaptor (2pcs) RF CATV Kit

include: 6dB attenuator (1pcs), 10dB attenuator (2pcs) RF Attenuator Kit

30dB high power attenuator, max. power 100W ATT03301H

N(M)-N(M) RF cable CB-NM-NM-75-L-12G

N(M)-SMA(M) RF cable CB-NM-SMAM-75-L-12G

RF demo kit (transmitter) TX1000

RF demo kit (receiver) RX1000

near field probe NFP-3

EMI pre-compliance test software S1210 EMI Precompliance Software

rack mount kit RM-DSA800

soft carrying bag BAG-G1

USB cable CB-USBA-USBB-FF-150

USB to GPIB interface converter for instrument USB-GPIB





Alte produse RIGOL

RIGOL DP832 DP832A SURSA TRIPLA REGLABILA

• DP832A/ DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, 195W
• DP831A/ DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, 160W
• DP821A/ DP821: 2 outputs, 60V/1A || 8V/10A, 140W
• DP811A/ DP811: 1 output, 20V/10A or 40V/5A, 200W


OSCILOSCOP 12-BIT RIGOL DHO1000

• DHO1072 70 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1074 70 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit
• DHO1102 100 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1104 100 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit
• DHO1202 200 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1204 200 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit


OSCILOSCOP DIGITAL RIGOL DS2000A

• DS2072A 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2102A 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2202A 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2302A 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
•
• DS2072A-S 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2102A-S 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2202A-S 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2302A-S 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator


RIGOL DG5351 DG5352 GENERATOR SEMNALE ARBITRARE 350MHZ

• DG5352 350 MHz, 2 ch, 14 bit
• DG5351 350 MHz, 1 ch, 14 bit
• DG5252 250 MHz, 2 ch, 14 bit
• DG5251 250 MHz, 1 ch, 14 bit
• DG5102 100 MHz, 2 ch, 14 bit
• DG5101 100 MHz, 1 ch, 14 bit
• DG5072 70 MHz, 2 ch, 14 bit
• DG5071 70 Mhz, 1 ch, 14 bit


RIGOL DSA1030A ANALIZOR DE SPECTRU 3GHZ

• DSA1030A-TG 9 kHz-3 GHz, w. PreAmp, w. Tracking Generator&EMI-Q-P
• DSA1030A 9 kHz-3 GHz, w. -PreAmp, -EMI-Q-P, -AMK


OSCILOSCOP 12-BIT RIGOL DHO900

• DHO924S 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO924 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit
• DHO914S 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO914 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit


OSCILOSCOP DIGITAL 4 CANALE RIGOL DS1000Z

• DS1054Z 4-Channel, 50MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1074Z 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1104Z 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1074Z-S 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator
• DS1104Z-S 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator


RIGOL DM3058 MULTIMETRU DIGITAL DE PRECIZIE

• DM3068 6 1/2 digit DMM
• DM3058E 5 1/2 digit DMM
• DM3058 5 1/2 digit DMM


RIGOL DG4062 GENERATOR DE FUNCTII 60MHZ 2-CANALE

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s


RIGOL DSA1030 ANALIZOR DE SPECTRU 3GHZ

• DSA1030 9 kHZ to 3 GHz, incl. EMI-Q-P
• DSA1030-TG 9 kHz to 3 GHz, incl. TG, EMI-Q-P
• DSA1030-PA 9 kHz to 3 GHz, incl. EMI-Q-P, Pre-Amp.
• DSA1030-PA-TG 9 kHZ to 3 GHz, incl. TG, EMI-Q-P, Pre-Amp.
