16 channels logic analyzer, mixed test, pattern cursor test and data memory
2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7"� TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

Model	DS1102D		DS1052D
Bandwidth	100 MHz		50 MHz
Analog Channels	2
Vertical Sensitivity	2 mV/div - 10V/div
Real-time Sample Rate	1 GSa/s�¼�each channel�¼��¼�500 MSa/s�¼�dual channels�¼�
Equivalent Sample Rate	25 GSa/s		10 GSa/s
Memory Depth	Mode	capture rate	common	long memory
	one channel	1 GSa/s	16 kpts	N/A
		500 MSa/s	16 kpts	1 Mpts
	dual channels	500 MSa/s 250 MSa/s or less	8 kpts 8 kpts	N.A. 512 kpts
Standard Interface	USB Host & Device, RS-232, P/F Out
Vertical Resolution	8 bits
Math	�¼�, �¼�, �-, FFT
Max Input Voltage	All inputs 1Ω"-15pF 300 V RMS CATâ��
Cursor Measurements	Manual, Track and Auto Measure modes

Accesorii standard

Standard Accessories

 Probe�-2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes

 A Power Cord that fits the standard of destination country

 A Data Cable (DS1000D series)

 An Active Logic Head (DS1000D series)

 20 Logic Testing Nips (DS1000D series)

 20 Logic Testing leads (DS1000D series)

 A CD-ROM (including User"™s Guide and Application Software)

 A Quick Guide

Optiuni recomandate

Optional Accessories

 BNC Cable

 USB Data Cable

 RS232 Cable

 USB-GPIB Adapter

 DS1000E, DS1000D soft carrying case

Alte produse RIGOL

RIGOL DSA832 ANALIZOR DE SPECTRU 3.2GHZ

• DSA815 9 kHz to 1.5 GHz
• DSA832 9 kHz to 3.2 GHz
• DSA875 9 kHz to 7.5 GHz
• DSA815-TG 9 kHz to 1.5 GHz, incl. Tracking Generator
• DSA832-TG 9 kHZ to 3.2 GHz, incl. Tracking Generator
• DSA875-TG 9 kHz to 7.5 GHz, incl. Tracking Generator

RIGOL DSG3030 GENERATOR SEMNAL RF 3GHZ

• DSG3030 9 kHZ to 3 GHz
• DSG3060 9 kHZ to 6 GHz

RIGOL DG4162 GENERATOR DE FUNCTII 160MHZ 2-CANALE

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

RIGOL DG4062 GENERATOR DE FUNCTII 60MHZ 2-CANALE

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

RIGOL DG4162 GENERATOR DE FUNCTII 160MHZ 2-CANALE

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

RIGOL DM858E MULTIMETRU DIGITAL 5.5-DIGIT CU TOUCH-SCREEN

• Max. reading rate: 125 readings/s
• Up to 500,000 points logging memory to record and analyze more data
• 5�½-digit reading resolution (120,000 counts)
• 7'' color touch screen, displaying dual-measurement results concurrently

RIGOL DM3068 MULTIMETRU DIGITAL DE PRECIZIE

• DM3068 6 1/2 digit DMM
• DM3058E 5 1/2 digit DMM
• DM3058 5 1/2 digit DMM

OSCILOSCOP DIGITAL RIGOL MSO2000A

• MSO2072A 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2102A 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2202A 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2302A 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
•
• MSO2072A-S 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2102A-S 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2202A-S 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2302A-S 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator

OSCILOSCOP 12-BIT RIGOL DHO900

• DHO924S 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO924 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit
• DHO914S 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO914 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit

RIGOL DSG830 GENERATOR SEMNAL RF 3GHZ

• DSG815 9 kHZ to 1,5 GHz
• DSG830 9 kHZ to 3 GHz

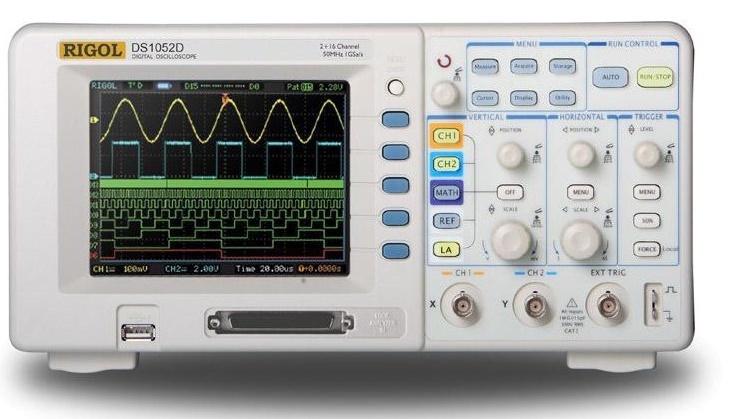

Osciloscop digital Rigol DS1052DPRODUS OBSOLET ( * SCOS DIN UZ )
