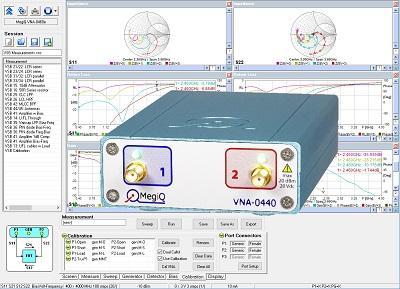

MegiQ VNA-0440 4GHz 2-port Analizor vectorial retea

Cod: MegiQ VNA-0440

Brosura produs 1

PDF, 0.58 Mb

Descriere

The VNA-0440 is full bi-directional 2-port Vector Network Analyzer that is controlled from a PC through a USB connector.

This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.

With its small size it can also be used near the antenna inside a large device or installation. It's also ideal for on-site measurements.

Features:

2-port bidirectional VNA
Measure S11, S12, S21, S22
Frequency 400MHz to 4GHz (6GHz)
Power -30 to +5dBm
Sweep up to 20001 points
Port calibrated
Full 12-term normalization
Parametric sweeps
Match Circuit Calculator
Deembedding functions
Calkit manager
