Cable Phasing Meter Megger - 830220-1
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Megger - 830220-1




Brosura produs PDF, 0.03 Mb

Descriere

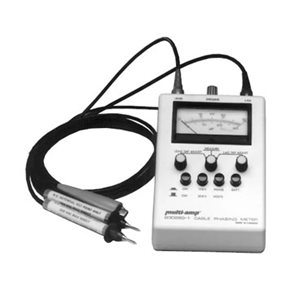

The Model 830220-1 Cable Phasing Meter offers a safe and quick method of measuring voltage and determining phase rotation of underground distribution systems using the capacitance test point of elbow connectors. Most manufacturers of high-voltage cable terminators incorporate capacitance test points into their elbow connectors. These test points are designed for measuring purposes.



Features:

  • Operates at low voltage
  • Battery operated
  • Measures voltage up to 30 kV
