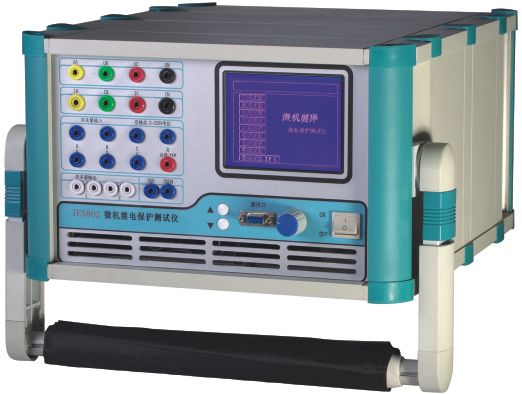

The successful development of TE5802 Microprocessor-based Protective Relay Tester has solved the problem of the traditional test apparatus and test methods can not satisfy the needs of the new protection device, can operated stand-alone , also can be connected with the laptop for operation. With powerful features, excellent interface, rotate type mouse operation to replace the traditional complicated keyboard, only one knob to complete all of the data set, function modification or switch.In accordance with IEC standards IEC 60255-11 2008(Ed.2.0) Measuring relays and protection equipment-Part 11.

(1) Applicable to the calibration of a variety of single, three-phase electromagnetic, electronic, microprocessor-based relay device.
(2) Single machine can complete a variety of calibrations; more complicated work can be completed through connecting to a laptop.
(3) In addition to four-phase voltage source and three-phase current source, it also has one circuit special adjustable DC power supply output.

Special power supply output	DC 80~250V adjustable
Executive Standard	IEC 60255-11_2008(Ed.2.0) Measuring relays and protection equipment-Part 11
The Switches Quantity	7 circuits input
Dimensions	450�340�200mm
Weight	20kg
Test function	Dual mode of operation, can operate stand-alone or connect with a computer
Time test	0~9999.9999s
Resolution	0.1ms
Superposition of harmonic	0~9times
Probe length	line: 920mm probe: 350mm
Four-phase voltage output	AC 0~120V/phase
Four-phase voltage output	DC 0~±160V/phase
Three-phase current output	AC 0~40A/phase
Three-phase current output	DC 0~±10A/phase
AC output phase	Range: 0~360°
AC output phase	Arbitrary angle, accuracy <0.5 °
AC output frequency	Range:20~300Hz
Accuracy	<0.01Hz
