	KS803	KS813	KS823	KS833
AC Standard Sources	?	?	?	?
DC Standard Sources	?	?	?	?
Harmonic Standard Sources	?	?	?	?
Indicator Test	?	?	?	?
Transmitter Test	?	?	?	?
Energy Meter Test	?	?	?	?

3-Phase AC Standard Source 750V / 25A
Harmonic Standard Source 2..31
Indicating Meter Test

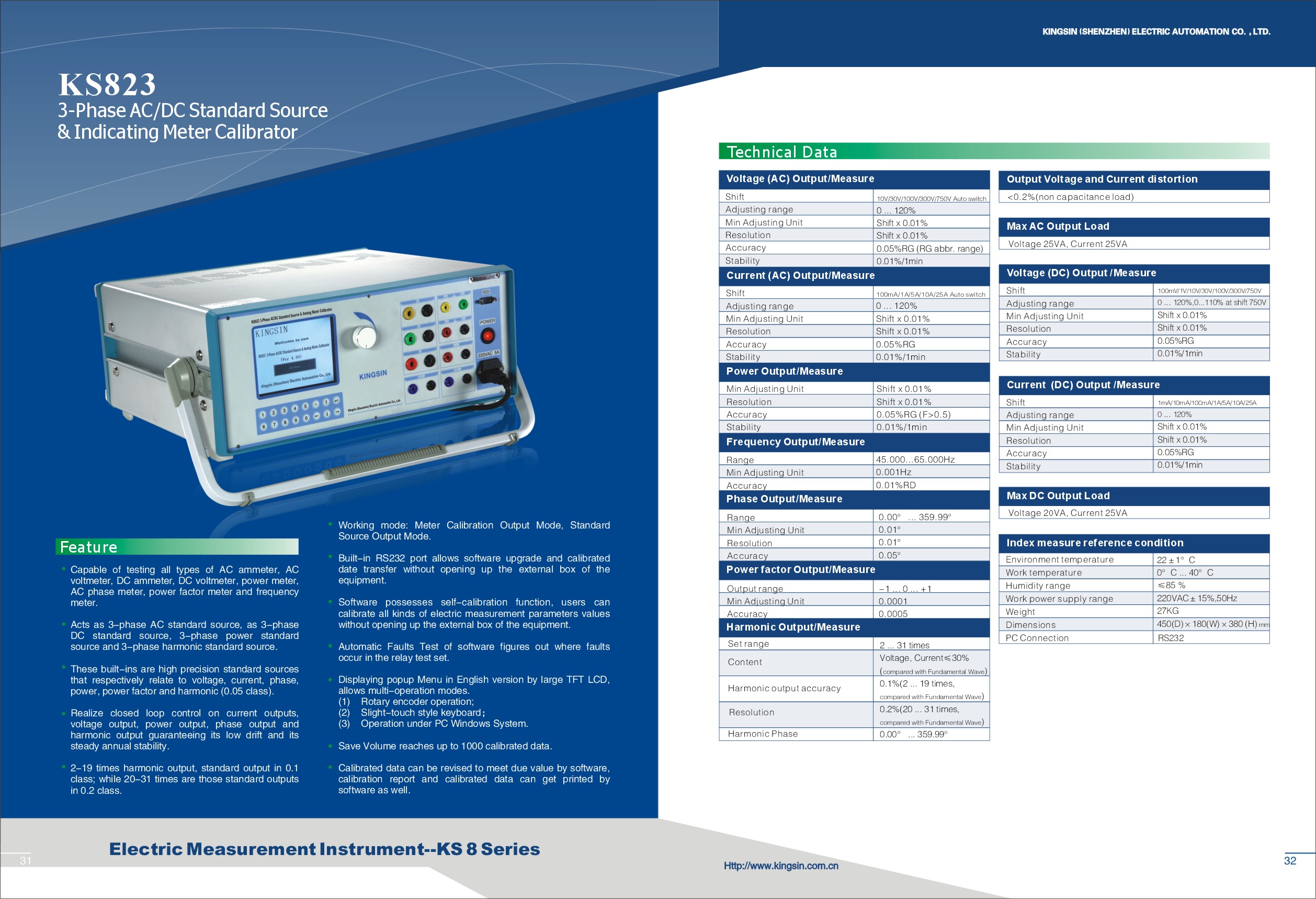

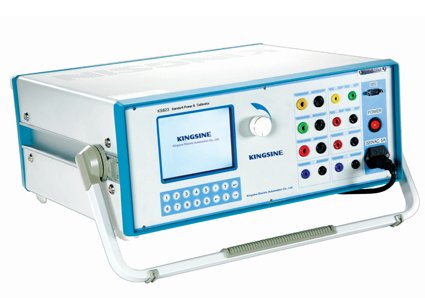

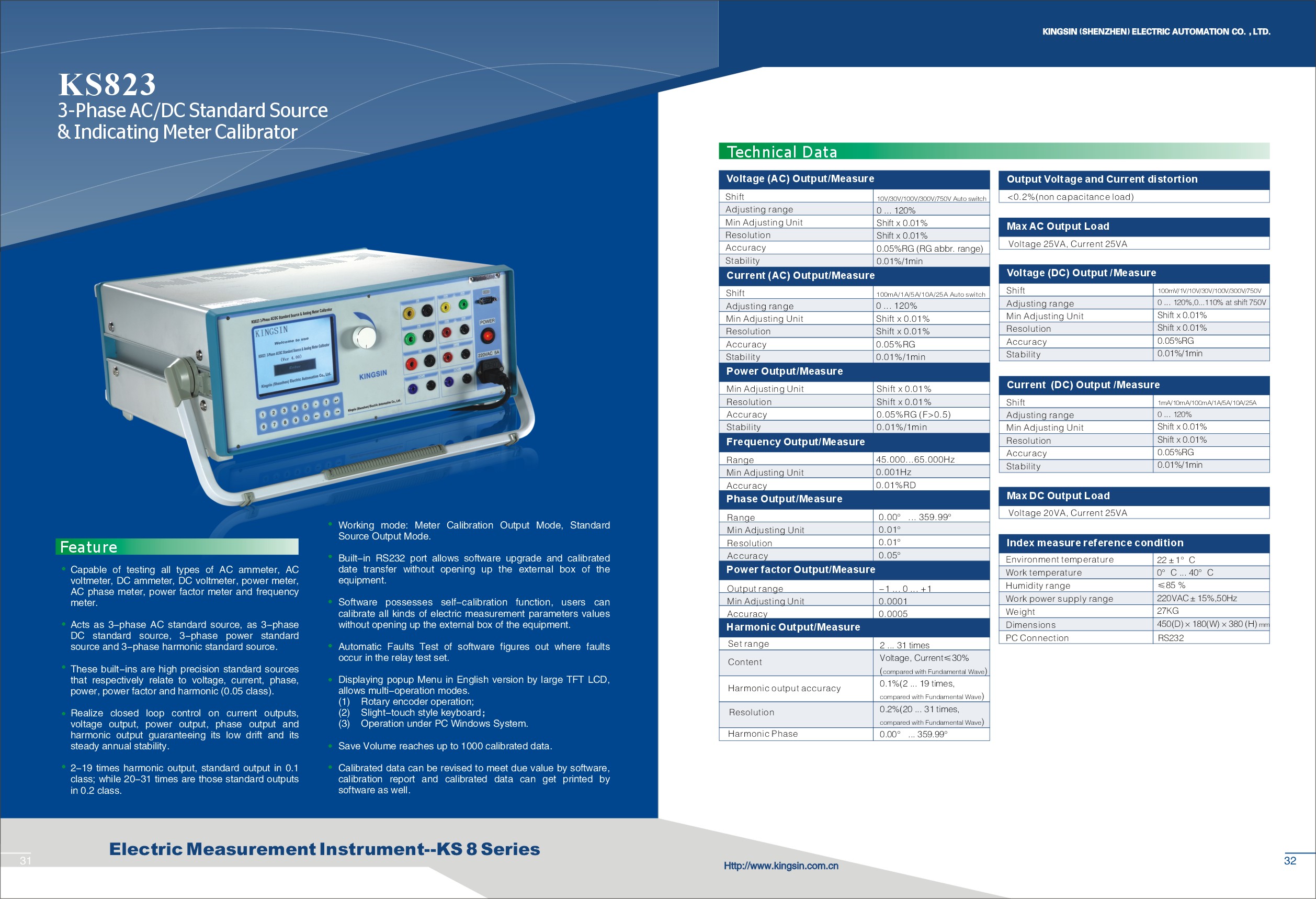

0.05 Accuracy KS823
0.1 Accuracy KS823B

Capable of calibrating all kinds of indicating instruments such as DC meters,AC meters, phase meters, frequency meters, power meters, power factor meters, multimeters, energy meters and electric measurement transducers, etc
Automatic calibration mode and manual calibration mode are built-in of KS833.
These built-ins are high precision standard sources that respectively relate to voltage, current, phase, power factor and harmonic
Capable of outputting standard voltage, current, phase, active power, cross-phase reactive power and true reactice power, make use of software to realize closed loop control on all outputs guaranteeing its low drift and its annual stability
Current generator provides the function of open-circuit protection and open-circuit alert in itself
Can freely output 2-31 times harmonics, including: Standard output at Grade 0.1 for 2nd-19th harmonics, and satandard output of Grade 0.2 for 20th-31st harmonics.
Large LCD display, all English pop-up menus for these operations
rotary encoder operation
slight-touch keyboard operation
operation under PC Windows System
Built-in RS232 port, allows software upgrade without opening up the external box of the equipment; and calibrated data can be uploaded into PC computer at users’ convenience
The shock and impact resistance external box is made of high intensity aluminum alloy
reliable high-power heating radiator units, the equipment is durable to use

Alte produse KINGSINE

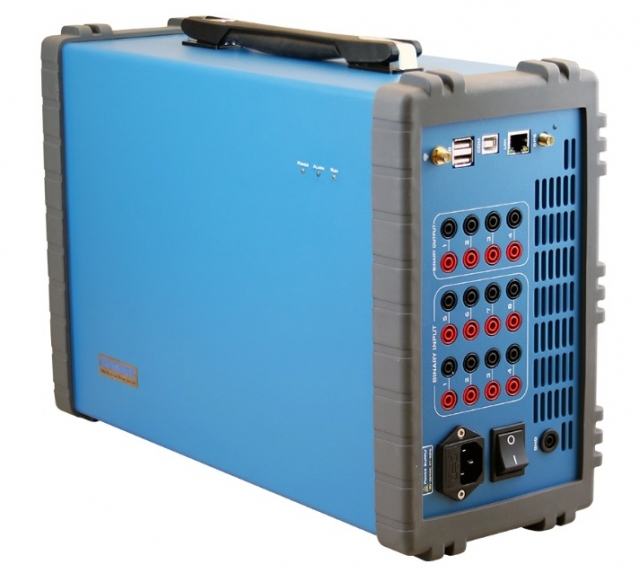

TRUSA TESTAT RELEELE DE PROTECTIE KINGSINE KF85P

• Ieșiri analogice 6x35A@425VA max și 6x310V@105VA max.
• Greutate 10 kg, ușor de transportat în avion.
• Ieșire semnale de nivel scăzut, testare contor de energie, calibrare traductoare și capacitate de testare IEC61850 opțional.
• Port fibră 8x100/1000Mbit pentru simulări IEC61850 SMV și GOOSE.

SURSA TRIFAZICA DE PUTERE AC PRECIZIE 0.05 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

SURSA TRIFAZATA AC/DC & CALIBRATOR CONTOARE ELECTRICE KINGSINE KS833/ KS833B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• Transducer Calibration
• Energy Meter Calibration
• 0.05 Accuracy KS833
• 0.1 Accuracy KS833B

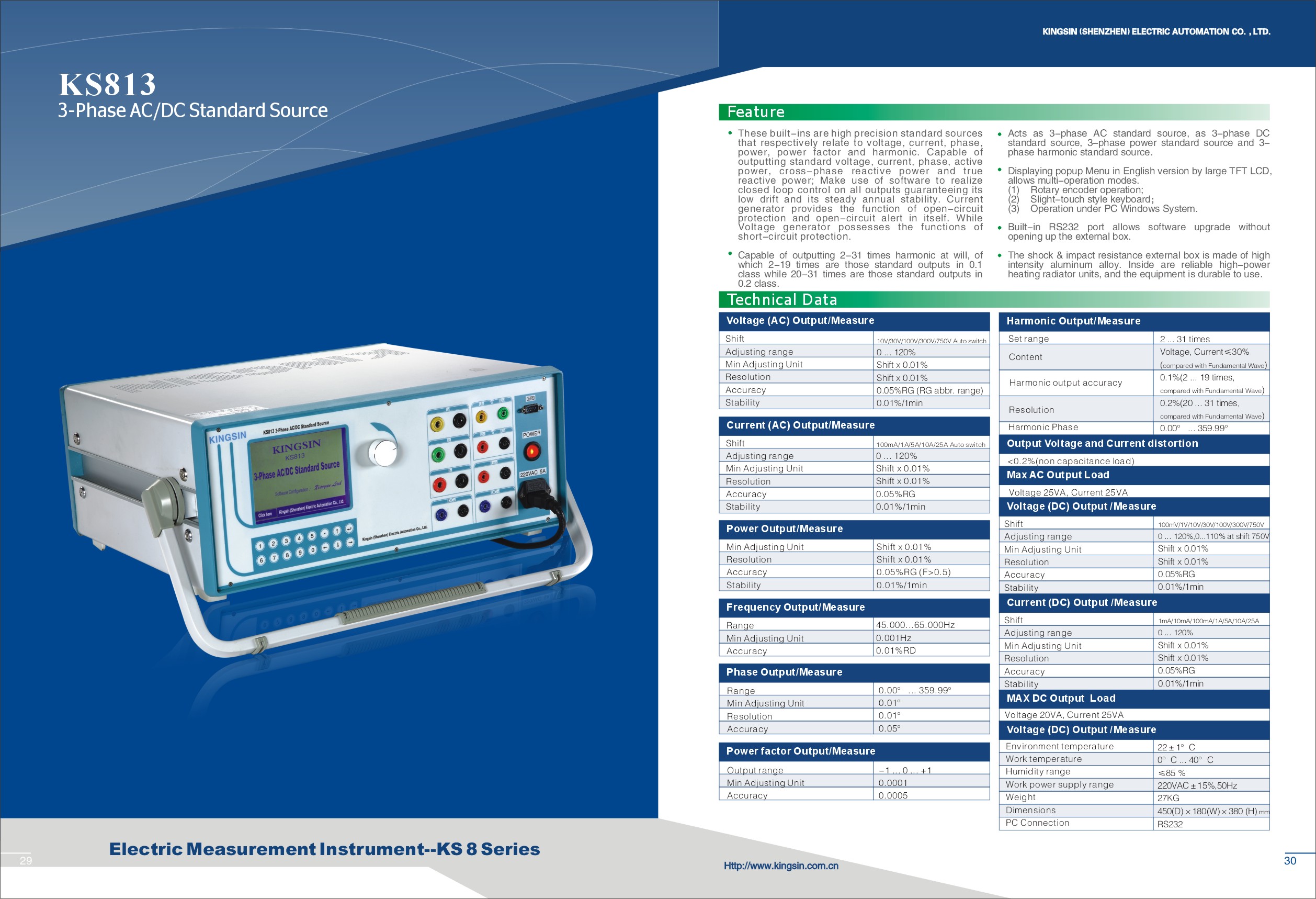

SURSA TRIFAZATA DE PUTERE AC/DC 750V/ 25A KINGSINE KS813/ KS813B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B

ANALIZOR TRANSFORMATOARE, TESTARE RAPORT TRANSFORMARE, CARACTERISTICA VOLT-AMPER KINGSINE KT200

• modularization design and plug-in frame
• TFT LCD display screen with clear and beautiful software interface design
• AC/DC current input for wide range
• up to 30kV transformer
• PT Test

CONTOR ETALON TRIFAZAT PRECIZIE 0.05% KINGSINE KS706

• Single/three-phase active/reactive meter calibration
• Three-phase active/reactive KWh meter calibration
• Able to measure current, voltage, frequency, phase, power, energy
• Harmonic analysis
• CT & PT ratio & secondary load measurement
• Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
• Apply in the electric power & inspection department
• Colorful LCD: 6.4 inch, resolution 640X480

TESTER RELEE DE PROTECTIE 1 CANAL MAX.1200VA 300V 200A KINGSINE K511

• All-in-one design with LCD display
• Adopt DSP control to ensure the system more reliable
• Max. AC output 200A, Max. power output 1200VA
• Save the test report automatically (max. 1024)

SURSA TRIFAZICA DE PUTERE AC PRECIZIE 0.05 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

SURSA TRIFAZATA DE PUTERE AC/DC 750V/ 25A KINGSINE KS813/ KS813B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B

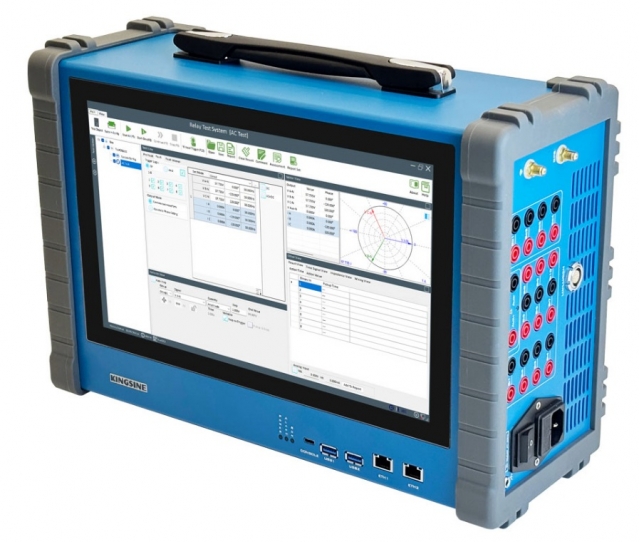

TRUSA UNIVERSALA PORTABILA TESTER RELEE DE PROTECTIE KINGSINE KF86P

• Ieșiri analogice 6x35A@425VA max și 6x310V@105VA max.
• Greutate 10 kg, ușor de transportat în avion.
• Ieșire semnale de nivel scăzut, testare contor de energie, calibrare traductoare și capacitate de testare IEC61850 opțional
• Port fibră 8x100/1000Mbit pentru simulări IEC61850 SMV și GOOSE
• Capacitate de testare end-to-end sincronizată GPS și IRIG-B încorporate
