Pompa pneumatica calibrare presiune Fluke 700PTP-1

Cod: Fluke 700PTP-1




Brosura produs PDF, 1.63 Mb


Descriere

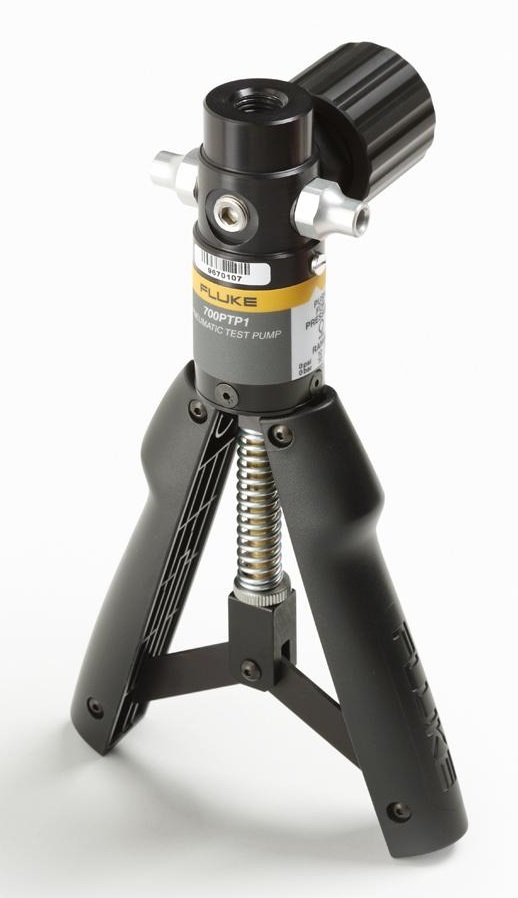

The Fluke-700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.



For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.



•                     Pump can be easily cleaned without disassembly

•                     The vernier can be used as a stand-alone low pressure calibration source

•                     Two pressure ports allowing simultaneous connection:

•                     ¼ -NPT female fitting for the reference gauge or pressure module

•                     ¼" NPT female fitting for the unit under test

•                     Adjustable stroke length can be set to limit the pressure per stroke





Accesorii standard

Includes:



•                     1/4 in NPT male to 1/4 in BSP female

•                     1 meter of hose

•                     (2) 1/8 in NPT male quick connects

•                     1/8 NPT female to 1/4 in BSP female

•                     Seal Kit

•                     Instruction sheet



Optiuni recomandate



700G/TRACK Data logging software and cable

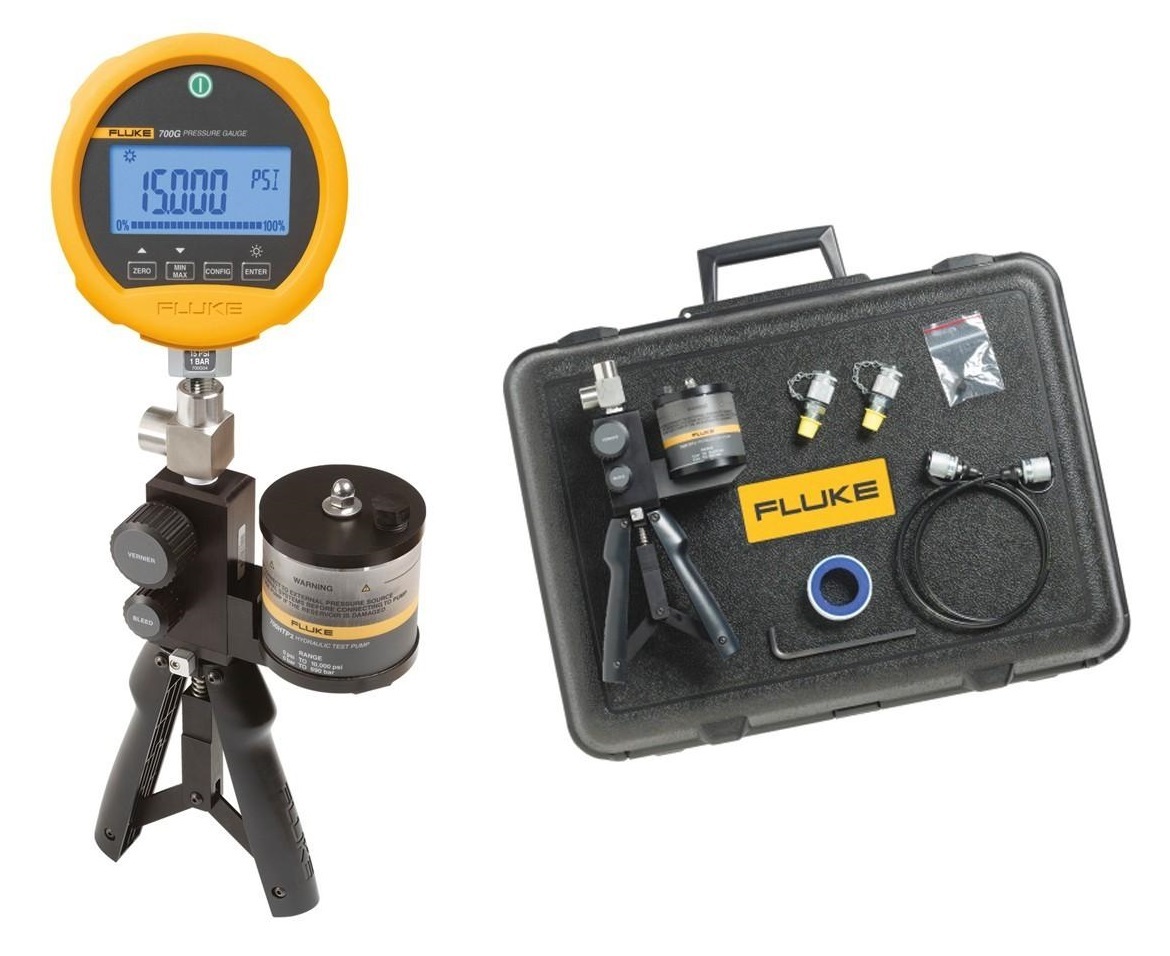

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR


Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter



Fluke-700G01 Pressure Gauge, �+-10 inH2O    -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, �+-30 inH2O    -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, �+-15 PSIG  -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG   -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG  -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG  -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG  -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG  -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG  -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG  -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA  0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA  0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA  0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG  -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG  -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG  -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG  -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG  -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG  -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG  -0.97 to 690 bar





700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR



Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
