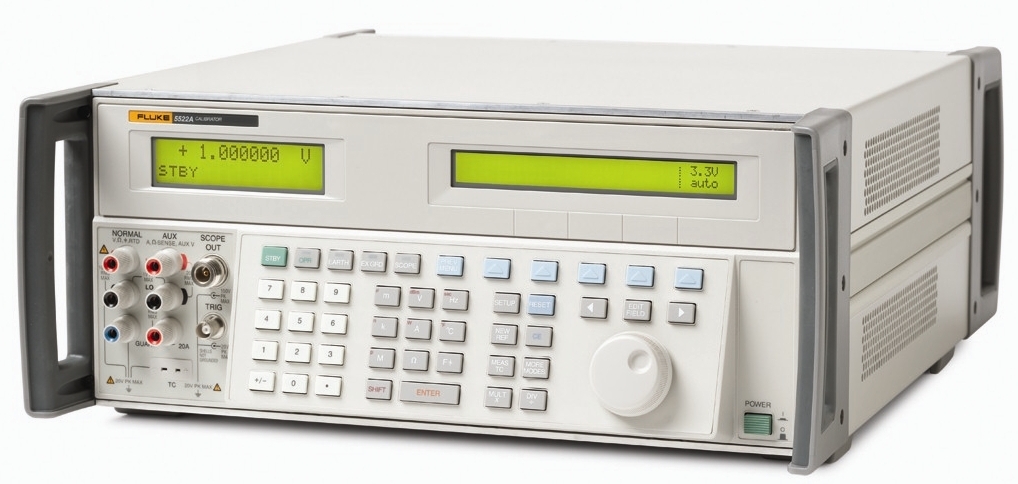

Calibrator multifunctional aparate de masura Fluke 5522A

Cod: Fluke 5522A




Brosura produs PDF, 1.15 Mb


Descriere

Robust, transportable wide workload coverage



The 5522A Multi-Product Calibrator addresses a wide calibration workload and comes with internal and external protection features that protect it against damage and make it easier to transport for on-site or mobile calibration. The 5522A can also be fully automated with MET/CAL® Plus Calibration Management Software. It is the ideal calibrator for metrology professionals who need to calibrate many different types of electronic equipment and want a transportable instrument that offers them a high return on investment.

The 5522A sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs. The 5522A can also measure thermocouple temperature, and pressure using one of 29 Fluke 700 Series pressure modules. Two options add the capability to calibrate oscilloscopes either 600 MHz or 1.1 GHz. And the 5520A-PQ Power Quality Option enables the 5522A to calibrate power quality instrumentation to the standards of the IEC and other regulatory agencies.

The 5522A calibrator covers many of the electronic test tools you use to keep your company up and running, including:



  • Handheld and bench meters (analog and digital) up to 6 ½ digits
  • Current clamps and clamp meters
  • Thermocouples and RTDs
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Panel meters
  • Graphical multimeters
  • Power quality analyzers (with option)
  • Analog or digital handheld and bench oscilloscopes to 600 MHz or 1.1 GHz (with options)
  • …and more, including pressure gauges and transducers and three-phase power meters





5522A features at a glance

  • Calibrates a wide variety of electrical test equipment
  • Robust protection circuits prevent costly damage from operator error
  • Redesigned carrying handles make the 5522A easy to transport
  • Rugged carrying case with built-in handles and wheels and removable front/rear access doors for in-situ calibration in almost any environment
  • Remarkably affordable


Accesorii standard

Model Name

Description

5522A

Multiproduct Calibrator

5522A/6

Multiproduct Calibrator with 600 MHz
Oscilloscope Calibration Option

5522A/1GHZ

Multiproduct Calibrator with 1100 MHz
Oscilloscope Calibration Option

5522A-PQ

Multiproduct Calibrator with Power Quality Option

5522A-PQ/6

Multiproduct Calibrator with Power Quality and
600 MHz Oscilloscope Calibration Options

5522A-PQ/1GHZ

Multiproduct Calibrator with Power Quality and
1100 MHz Oscilloscope Calibration Options



Cases and holsters

55XX/CASE

Transit Case with Wheels





Optiuni recomandate

Industrial Test Leads, Probes and Clips

5520A-525A/LEADS

5520A-525A/LEADS test lead set



Software

MET/CAL Plus Version 7.3

MET/CAL® Plus Calibration Management Software Version 7.3



Rack Mounts & Hardware

5500A/HNDL

5500A/HNDL Side handle

Y5537

Y5537 Rack mount kit



Options

5500A/COIL

5500A/COIL 50 Turn Current Coil

Fluke-700Pxx

Pressure Module Series
