Camera termoviziune infrarosu monitorizare securitate Flir Seria HRC
PRODUS OBSOLET ( * SCOS DIN UZ )

Descriere

The HRC-Series are equipped with a highly reliable, mid-wave, cooled detector which offers extremely long range detection in all weather conditions. The cameras offer a continuous optical and electronic zoom. This offers excellent situational awareness while also giving the possibility to zoom in at suspect activities, and have a closer look, once they are detected. The HRC-Series can be integrated into existing networks or used as a stand alone unit.

The HRC-Series offer extreme long range detection and excellent image quality, in the darkest of nights, through smoke and dust. You can detect a man-size target several kilometers away. All thermal imaging cameras are extremely suited for border and coastal surveillance but also for mid-range threat detection.

Cooled detector
The HRC-Series are equipped with a mid-wave, cooled detector. A thermal imaging camera with a cooled detector gives you the advantage that you can see and detect potential threats much farther away than with an uncooled detector. But there is more. Objects which are at a close distance can be seen with much more detail. You can see what people are carrying. There is no need anymore to send someone out in the field to take a closer look since small details can clearly be seen on the thermal image.

According to his needs and preferences, the user can choose a FLIR HRC-Series that is either equipped with a cooled Indium Antimonide (InSb) or a cooled Mercury Cadmium Telluride (MCT) detector.

Crisp, high resolution thermal images: 640 x 480 pixels
All thermal imaging cameras are equipped with a cooled Mid-Wave InfraRed (MWIR) detector (InSb or MCT) that produces ultra-sharp thermal images of 640 x 480 pixels. This will satisfy users that want to see the smallest of detail and demand the best possible image quality.

It allows the user to see more detail and detect more and smaller objects from a farther distance. Coupled with high sensitivity, the HRC-Series offer extremely long range performance and excellent image quality.

Four different versions available
-     HRC-E: Equipped with a 22 x 275 mm lens. It zooms between a 25° field of view and a 2° field of view.
-     HRC-S: Equipped with a 39 x 490 mm lens. It zooms between a 14.1° field of view and a 1.1° field of view.
-     HRC-U: Equipped with a 59 x 735 mm lens. It zooms between a 9.4° field of view and a 0.75° field of view.
-     HRC-X: Equipped with a 88 x 1100 mm lens. It zooms between a 6.3° field of view and a 0.5° field of view.

Continuous optical and digital zoom on the thermal image
The HRC-Series thermal imaging cameras are equipped with powerful continuous optical zoom capability on the thermal image. It offers excellent situational awareness but also the possibility to zoom-in, and see more detail, once a target has been detected. This way operators can see farther recognize more detail and react more quickly to security threats. The advantage of continuously zooming compared to other systems that are using a rotating lens system is that there is no switch or swapping between the different images. You can gradually zoom in while keeping your focus all the time.

All systems are also equipped with an up to 16x continuous digital zoom.

Advanced image processing
FLIR Systems has developed a powerful algorithm that helps to overcome the problem of finding low contrast targets in high dynamic range scenes. Advanced Digital Detail Enhancement (DDE) assures clear, properly contrasted thermal images. DDE delivers a high contrast image even in extremely dynamic thermal scenes. It provides high quality thermal imaging in any night- or daytime environmental conditions.

Auto focus
The HRC-Series contain an exclusive auto focus feature which delivers crisp, clear images at the press of a button. Focus is kept while zooming in or out. The system allows you to experience better situational awareness in the wide field of view, while maintaining detailed recognition capabilities in the narrow field of view.

Easy and fast to install
All cameras incorporate easily with common power and video interfaces found in existing and new security systems. They can be easily integrated into any existing infrastructure providing early detection and visibility 24/7 all the year round. The images from the ­640 x 480 pixels detector can be displayed on virtually any existing display that accepts standard composite video.

Portability
All systems are configured to be either fixed mounted or field transportable for fast deployment. They can be mounted on a standard tripod. A single operator can set up

the system in minutes, making it ideal for mobile operations and quick deployments.

Designed for use in harsh environments
All systems are extremely rugged. Their vital core is well protected against humidity and water. They all operate between -32°C and +55°C. All HRC-Series are Commercially Developed, Military Qualified (CDMQ). They comply with various Mil-Std.

Multiple installation options
Various options exist to connect the HRC-Series and integrate them in your existing systems. All cameras can be configured for stand alone use, as part of a network or in a hybrid configuration with local and network based control:
- Serial Configuration: Simply connect the HRC-Series over serial to your remote control panel or use the Joystick Control Unit.
- TCP/IP configuration: all HRC MS cameras can be integrated in any existing TCP/IP network and controlled over a PC. No need to put extra cables. Using this configuration, you can monitor all activity in a protected area over the internet. Even when you are thousands of kilometers away.

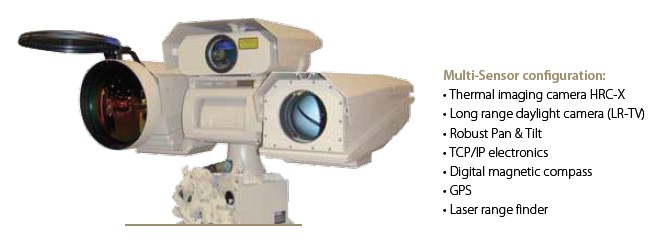

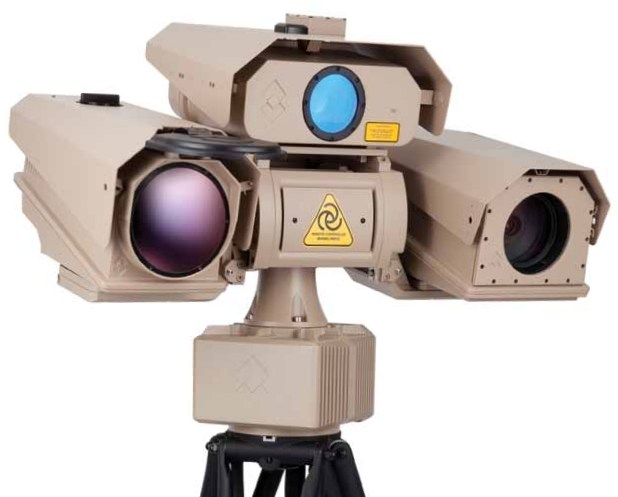

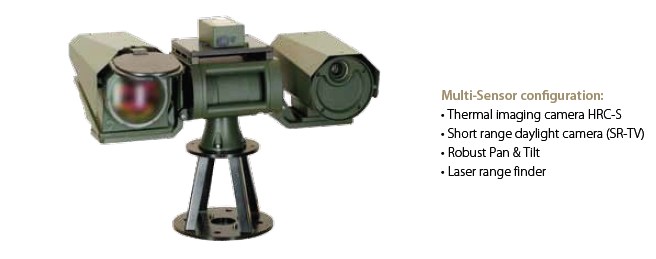

HRC-Series Multi-Sensor systems

Daylight camera specific

HRC-Series Thermal imaging camera only

Technical Specifications

IMAGING PERFORMANCE
Detector type	MWIR: Indium Antimonide (InSb) or Mercury Cadmium Telluride (MCT): 640 x 480 pixels
Spectral range	3 to 5 µm
Field of View	12.5x continuous zoom and four preset positions
Image frequency	50 Hz (PAL), 60 Hz (NTSC)
Focus	Automatic or Manual
Continuous Digital Zoom	Yes, up to 16x
Selectable preset focus distance	Yes: Allows to command the lens to a given focus position
Focus athermalisation	Yes
Image processing	Tunable Digital Detail Enhancement (DDE), Histogram Equilazition
SYSTEM FEATURES
Remote Control	RS-232, RS-485 and Ethernet
Palettes	black hot / white hot; different color palettes
Still image capture	JPEG and FFF 14bit
Built-in Test (BIT)	Yes
IMAGE PRESENTATION
Video	PAL / NTSC selectable
POWER
Input Voltage	28 V +/- 4V
Consumption	35 W typical (running after cooldown), < 125 W maximum with heaters
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range	-32°C to +55°C
Storage temperature range	-45°C to +70°C
Automatic Window defrost	Yes
EMC / EMD	CE tested which requires compliance with the following procedures: Emission: EN61000-6-4:2007 Immunity: EN61000-6-2:2005 FCC 47 CFR part 15 Class B
Rain	Mil-Std-810F, 506.4 - procedure II
Humidity	Mil-Std-810F, 507.4
Sand/dust	Mil-Std-810F, 510.4 - procedure II
Ice/ freezing rain	Mil-Std-810F, 521.2 - procedure I
Shock	Mil-Std-810F, 516.5 - procedure I
Vibration	Mil-Std-810C, 514.2 - procedure VIII, Sinus Min. of 10mm and 1.0 g, 1- 5-1 Hz
Solar radiation	Mil-Std-810F, 505.4 - procedure I, cycle A1
Emission	EN61000-6-4:2007
Immunity	EN61000-6-2:2005
IP rating	IP66
INTERFACES
Ethernet	Command and control all functions and still images
RS-232	Command and control all functions
RS-485	Command and control all functions
Standard Package:	Thermal imaging camera, power supply, hand control, junction   Accesorii standard TYPICAL CONFIGURATION PACKAGE HRC-E MS / HRC-S MS / HRC-U MS / HRC-X MS Thermal imaging camera, daylight camera, Pan & Tilt, power supply with cables, operator manual, shipping cases.   Optiuni recomandate Optionally available Laser Range Finder Erbium glass or Nd:YAG+OPO system, eye safe / 80 m - 20 km Geo Positioning GPS optionally available Digital Magnetic Compass Optionally available Automatic Video Tracker including e-stab Optionally available   Alte produse FLIR FLIR C5 CAMERA INFRAROSU COMPACTA • Rezoluție termică 160 × 120 • Măsoară temperaturi de până la 400°C (752°F) • Contrast reglabil cu o singură atingere pentru nivel/interval   FLIR E86 CAMERA INFRARED 464X348 • Imagistică termică 464 × 348 • Măsoară temperaturi de până la 550°C (1022°F) • Focalizare automată asistată de laser   FLIR T560 CAMERA INFRAROSU DE PRECIZIE • Rezoluție termică de 640 × 480 • Măsoară temperaturi de până la 1500°C (2732°F) • Contrast reglabil cu o singură atingere pentru nivel/interval   FLIR E5-PRO CAMERA TERMICA INFRARED • Rezoluție termică 160 × 120 • Măsoară temperaturi de până la 400°C (752°F) • Sensibilitate termică <60 mK   FLIR I65 CAMERA TERMICA INFRAROSU CU APLICATIE SI LTE • Cameră de termoviziune cu funcție LTE, activată prin aplicație • Rezoluție termică de 480 × 640 • <40 mK NETD   FLIR TG165-X CAMERA INFRAROSU • Rezoluție termică 80 × 60 • -25°C până la 300°C (-13°F până la 572°F) • Interpretați imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare   FLIR SI2-LD CAMERA ACUSTICA DETECTIE SCAPARI AER SI DEFECTE MECANICE RULMENTI • Detectează, localizează și măsoară scurgerile de aer comprimat și gaze; • inclusiv detectarea defecțiunilor la rulmenți, de la o distanță de până la 200 m (656 ft) • Măsurare și analiză a costurilor încorporate pentru gaze industriale, inclusiv amoniac, hidrogen, CO2, metan, heliu și argon • Operare cu o singură mână cu reglare automată, zoom 8x și o cameră digitală de 12 MP • Modul de defecțiune mecanică, selecția automată și optimizarea filtrelor simplifică găsirea problemelor mecanice critice, cum ar fi defecțiunile la rulmenți   FLIR I64 CAMERA TERMOVIZIUNE INFRAROSU 480X640PXL • Cameră de termoviziune cu funcție de aplicație • Rezoluție termică de 480 × 640 • <40 mK NETD   FLIR T1020 CAMERA TERMOVIZIUNE HD 1024X768 • Rezoluție termică 1024 × 768 • Măsoară temperaturi de până la 2000°C (3632°F) • <20 mK NETD   FLIR C8 CAMERA INFRAROSU COMPACTA • Rezoluție termică 320 × 240 • Măsoară temperaturi de până la 450°C (842°F) • Contrast reglabil cu o singură atingere pentru nivel/interval   Contact • Date GDPR • Termeni utilizare • Politica cookies • Confidentialitate • Livrare si plata • Cum comanzi? Copyright © DISTEK TEST 2010 - 2026 ⇧ Top
