Camera termala infrarosu pentru navigatie si marina Flir Navigator II
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir Navigator II




Descriere

FLIR Navigator II



The Navigator II is an economic, fixed mounted thermal imager. It provides crisp, clear thermal imagery in total darkness, light fog, and smoke. It features the same thermal imaging technology found in many of FLIR's most sophisticated marine systems, but is packaged for users who have navigation as their primary application. Unlike other night vision systems that require low amounts of light to generate an image, the Navigator II needs no light at all.





The Navigator II comes at an extremely affordable price. As from now on, price is no longer an object to use thermal imaging on board of your vessel.

The Navigator II provides crisp, clear thermal imaging, 320 x 240 pixels. This allows the user to see more detail and detect more and smaller items.

The Navigator II is equipped with a 19 mm wide angle lens. Not only does it give you an extremely wide field of view (36°), it also eliminates the need for stabilization of the system.

The Navigator II is an extremely rugged system. Its vital core is well protected, IP66 rated, against humidity and water. The Navigator II can be cleaned with a hose just like any other equipment. The Navigator operates between -25°C and +55°C.

Extremely lightweight, the Navigator II can be installed at any position on board. They can be mounted at an optimal observation point providing maximum field of view.

The Navigator II is extremely easy to integrate on board of a yacht. The images from the Navigator’s 320 x 240 pixels detector can be displayed on virtually any existing multifunction (i.e. chart plotter) display that accepts composite video.





Navigator II Specifications



IMAGING PERFORMANCE

Detector type

Focal Plane Array (FPA), uncooled microbolometer 320 x 240 pixels

Spectral range

7.5 to 13µm

Field of view

36° (H) x 27° (V) with 19 mm lens

Spatial resolution (IFOV)

2 mrad

Thermal sensitivity

100 mK at +25°C

Image frequency*

7.5Hz (NTSC) or 8.3 Hz (PAL)*

Focus

Fixed

Image processing

Digital Detail Enhancement (DDE)





IMAGE PRESENTATION

Video output

NTSC or PAL composite video

Connector types

BNC (1) provides video output
BNC to RCA adapter included





POWER

Requirements

12 V DC +30% / -10%

Consumption

3 W nominal, 30 W peak





ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-25°C to +55°C

Storage temperature range

-50°C to +80°C

Automatic window defrost

Yes

Humidity

100% relative humidity salt spray

Sand/dust, icing

Mil-Std-810E

Encapsulation

IP66

Shock

IEC 60068-2-27 and Mil-Std-810

Vibration

Mil-Std-810E





PHYSICAL CHARACTERISTICS

Camera Weight

3.0 kg

Camera Size

18.8 cm tall x 10.2 cm wide x 18.5 cm deep

Shipping weight (camera + packaging)

5.0 kg

Shipping size (camera + packaging) (L x W x H)

36 cm x 41 cm x 21 cm





  • 30 Hz NTSC or 25 Hz PAL available. Subject to approval of the US Department of Commerce for use outside the USA.

    The Navigator is backed up by two years of full warranty


Accesorii standard

STANDARD PACKAGE

Thermal imager with 7.6 m of cable and power switch - Operator manual



Alte produse FLIR

FLIR I65 CAMERA TERMICA INFRAROSU CU APLICATIE SI LTE

• Cameră de termoviziune cu funcție LTE, activată prin aplicație
• Rezoluție termică de 480 × 640
• <40 mK NETD

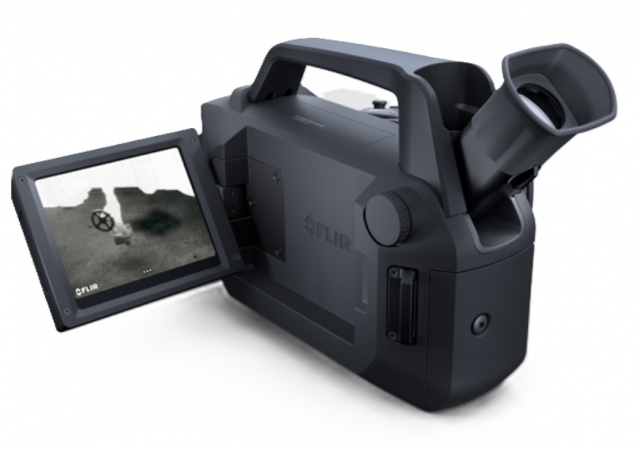

FLIR G346 CAMERA TERMOVIZIUNE INFRAROSU DETECTIE EMISII MONOXID DE CARBON CO OXID DE AZOT N2O

• FLIR G346 este o cameră inovatoare de imagistică a gazelor (OGI)
• utilizată pentru a detecta monoxidul de carbon (CO), oxidul de azot (N₂O) și alte gaze periculoase și dăunătoare mediului în fabricile de oțel și instalațiile industriale de producție.

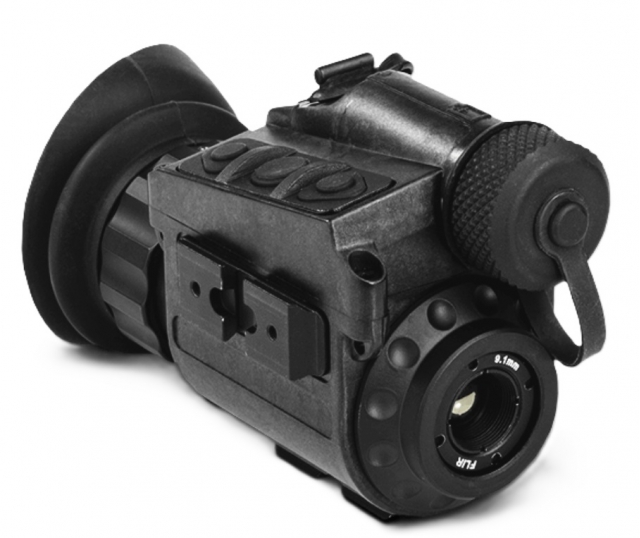

FLIR BREACH PTQ136 MONOCULAR INFRAROSU PENRTRU FORTELE DE ORDINE

• Construit pentru rigorile forțelor de ordine
• FLIR Breach PTQ136 detectează căldura suspecților și a obiectelor în întuneric total.

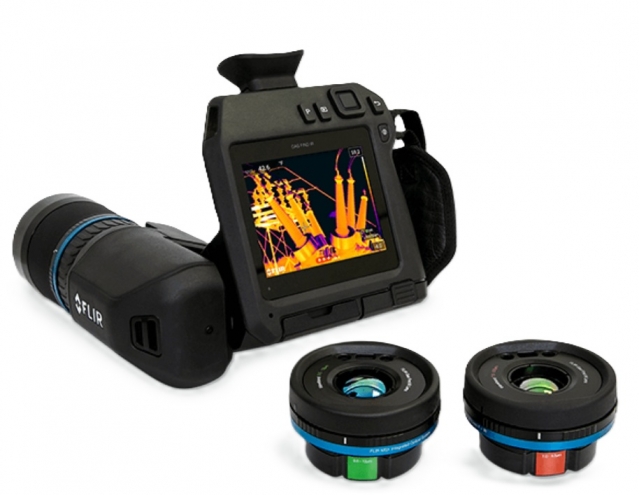

FLIR GF77 CAMERA EMISII DE GAZE METAN HEXAFLUORURA DE SULF AMONIAC ETILENA GAZ INDUSTRIAL

• Detectează scurgeri de gaze la substații și multe altele
• FLIR GF77 este o cameră optică de imagistică a gazelor nerăcită inovatoare
•  opțiuni de lentile interschimbabile, care detectează metan, hexafluorură de sulf (SF6), etilenă, amoniac și alte emisii de gaze.

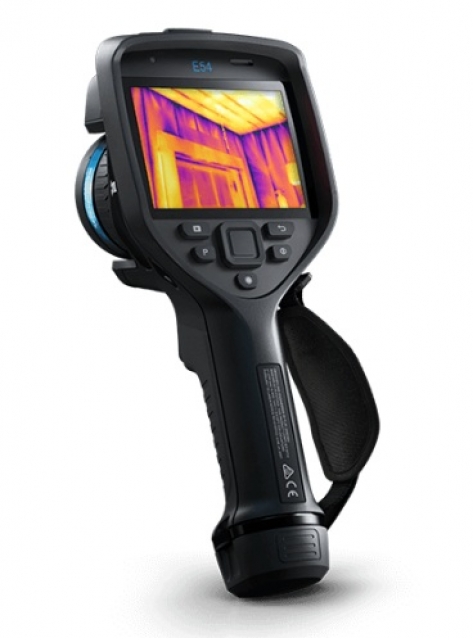

FLIR E54 CAMERA TERMICA 320X240PXL

• Imagini termice 320 × 240
• Măsoară temperaturi de până la 550°C (1022°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval



FLIR I64 CAMERA TERMOVIZIUNE INFRAROSU 480X640PXL

• Cameră de termoviziune cu funcție de aplicație
• Rezoluție termică de 480 × 640
• <40 mK NETD

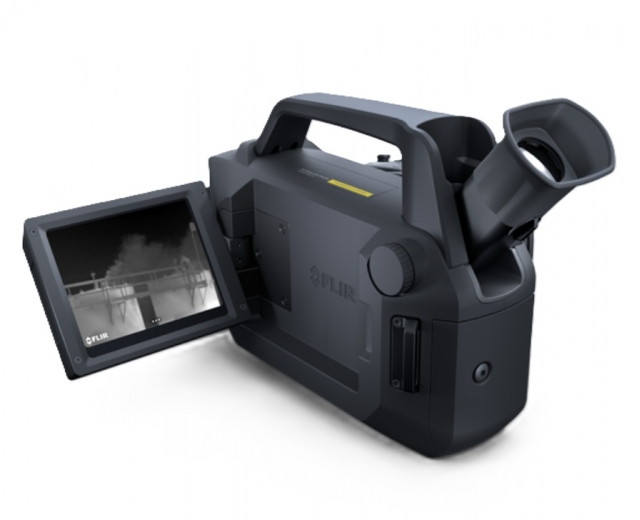

FLIR GX320 G620 GX620 CAMERA INSPECTIE OPTICA EMISII GAZE HIDROCARBURI METAN COMPUSI ORGANICI VOLATILI VOC PETROL

• FLIR Gx320, G620 și Gx620 sunt camere inovatoare de imagistică optică a gazelor (OGI)
• concepute pentru a detecta emisiile de hidrocarburi, metan (CH₄) și alte compuși organici volatili (COV) din mai multe etape ale lanțului de aprovizionare cu petrol și gaze, precum și din alte piețe industriale

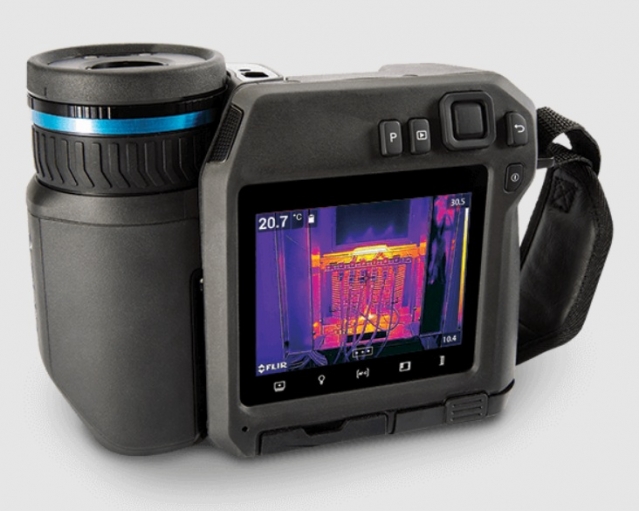

FLIR T560 CAMERA INFRAROSU DE PRECIZIE

• Rezoluție termică de 640 × 480
• Măsoară temperaturi de până la 1500°C (2732°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval

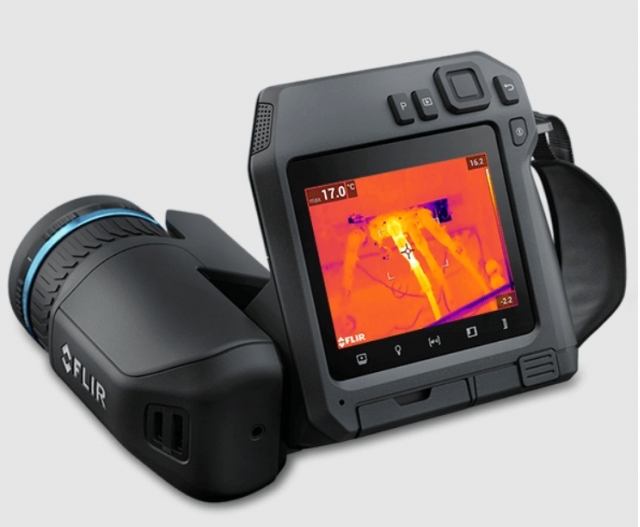

FLIR T540 CAMERA TERMALA INFRAROSU
