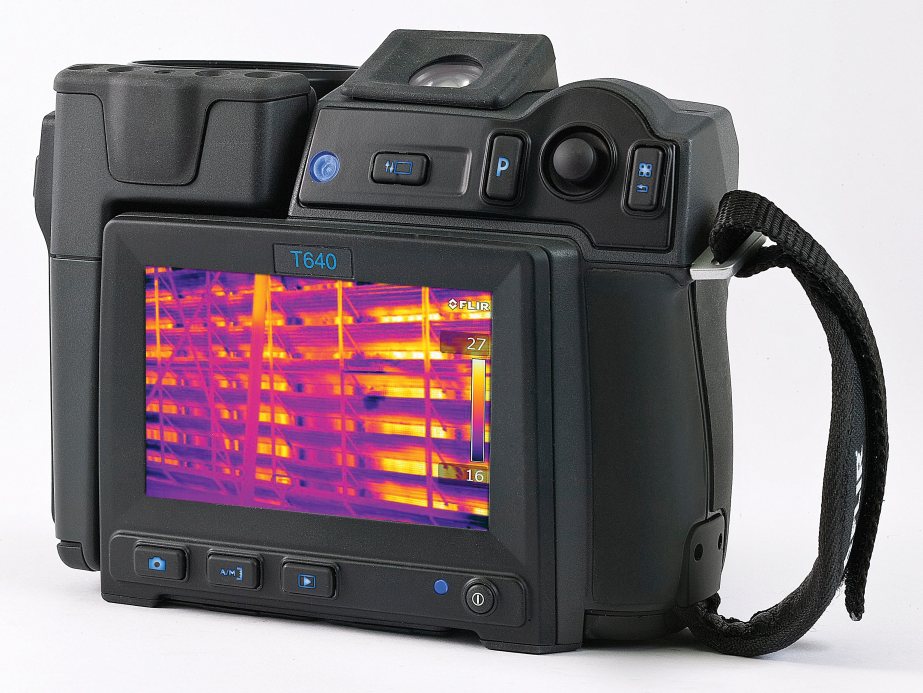

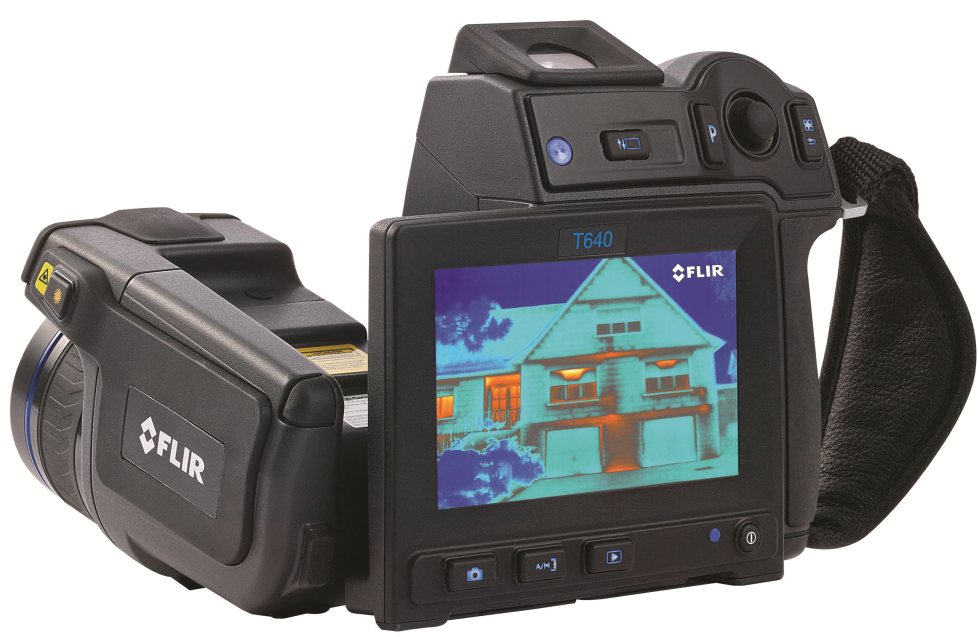

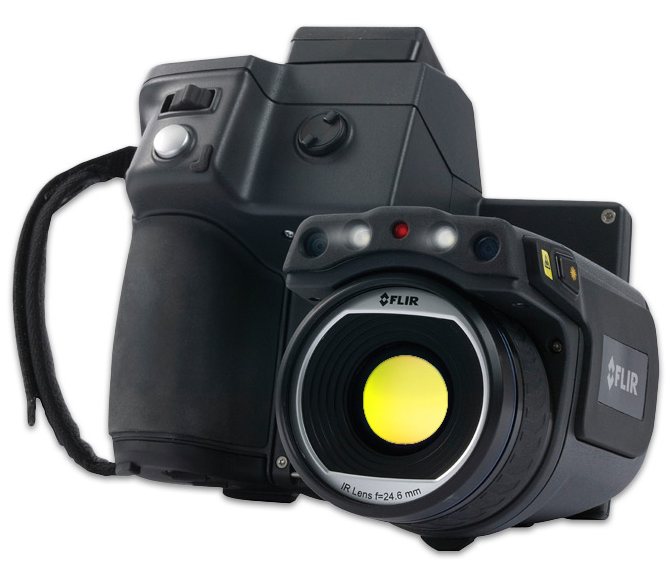

Camera de termoviziune inspectie cladiri 640 x 480 pixeli Flir T640bx T620bx
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir T640bx T620bx




Brosura produs PDF, 1.08 Mb


Descriere

The FLIR T640bx / T620bx combine the ergonomics and flexibility of the FLIR T-Series with the extremely high image quality of the P-Series. The FLIR T640bx / FLIR T620bx offer a crisp thermal image of 640 x 480 pixels on which the smallest of details can be seen. An intuitive user interface supported by state-of-the-art touch-screen technology make the FLIR T640bx /FLIR T620bx extremely easy to use.



640x480 pixel resolution
The high definition 640x480 pixels detector generates crisp and clear detailed images that are easy to interpret, resulting in reliable inspections with higher accuracy.



High sensitivity
The T640bx allows you to see temperature differences as small as 0.04°C.



Tiltable IR unit
The tiltable IR unit gives you great flexibility and allows you to work faster and in a comfortable position during your inspections.



Large bright 4.3 inch LCD screen
The high quality LCD screen presents sharp and bright images also in outdoor environments.



Viewfinder (FLIR T640bx)
The high-resolution viewfinder is ideal for outdoor use or when the LCD screen is not used.



High quality visual camera
An integrated 5 megapixel visual camera generates crisp visual images in all conditions.



Automatic- and manual focus
The FLIR T640bx/FLIR T620bx have a manual focus on the lens as well as a quick one shot autofocus.



Laser Pointer
The position of the laser pointer is highlighted on the IR-image, which helps you associate the hot spot in the image with the physical target.



Flexible interfaces

Easy access to Digital Video Interface, USB for connecting external devices, USB2 for PC communication and a direct connection to charge the battery inside the camera.



MPEG-4 video
Create visual and infrared non radiometric MPEG-4 video files.



FLIR Thermal Fusion

Merges visual and thermal images for better analysis.



Picture-in-picture
Create an infrared overlay on your visual image.Adapts automatically to different lenses with different field of view. Moveable and resizable.



Touch screen
The LCD touch screen brings interactivity and user comfort to  a new level. In combination with the large backlit buttons and joystick control the T640bx/T620bx is very easy to use.



Sketch annotations
Include a sketch with the IR image of the inspected object, just draw it on the touch screen.



Text and voice annotations
Text comments can be selected form a list. A Bluetooth headset can be connected to make voice annotations.



Digital zoom
The FLIR T640bx is equipped with a 1-8x continuous digital zoom and the T620bx with a 1-4x zoom.



MeterLink™
FLIR MeterLink technology simplifies the work in electrical or building inspections by making it possible to transfer, via Bluetooth®, the data acquired by an Extech clampmeter or multifunction moisture meter into the thermal imaging camera. The MeterLink technology saves time and eliminates the risk of erroneous records or notes.



Humidity Alarm/Insulation Alarm
The Relative Humidity Alarm alerts you to the areas where there is a risk of condensation. An Insulation Alarm shows the insulation performance of the building structure. By inputting relevant values into the camera the areas that fail to fulfill requirements will appear as colored.



Wifi
Transfer images wirelessly to a smart phone or tablet PC. Connect directly to the device or via a local network.





FLIR T640bx / FLIR T620bx Model Comparison



FLIR T620bx

 FLIR T640bx

Thermal sensitivity: 50 mk

Thermal sensitivity: 40 mk

LCD display only

Viewfinder and LCD display

1-4x continuous, digital zoom

1-8x continuous, digital zoom



Line profile function



Measurement presets



Accesorii standard

  • FLIR T620bx / T640bx:
  • Hard transport case
  • thermal imaging camera with lens
  • Battery (2)
  • Battery charger
  • Large eyecap
  • Tripod adaptor
  • Neck strap
  • Lens cap
  • Bluetooth® headset
  • Calibration certificate
  • FLIR Tools™ PC software CD-ROM
  • Memory card with adaptor
  • Power supply incl. multiplugs
  • Printed Getting Started Guide
  • Printed important information guide
  • USB cable
  • User documentation CD-ROM
  • HDMI cable (2)
  • Warranty extension card or Registration card
