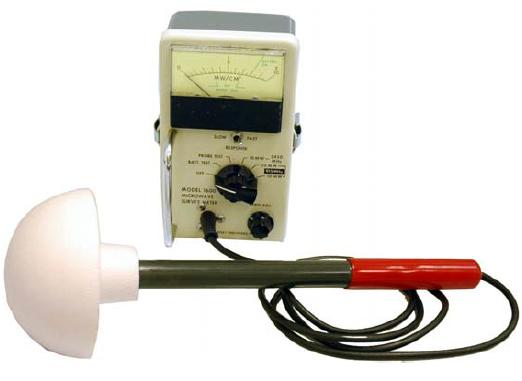

Frequency Minimum	915 MHz
Frequency Maximum	2450 MHz
Maximum Power Density	2.0 W/cm²
Range	2450 MHz: 0-10 mW/cm² 915 MHz: 0-10 mW/cm², 0-20 mW/cm²

Accesorii standard

Heavy Duty Carrying Case
User Manual

Optiuni recomandate

Plastic Beaker, 600 ml.

Alte produse ETS-LINDGREN

ANTENA ACTIVA BUCLA DE RECEPTIE 10 KHZ..30 MHZ ETS-LINDGREN 6502

• Frequency Minimum 10 kHz
• Frequency Maximum 30 MHz
• 1 dB Comp. Point 5 V/m
• Connectors BNC (f)
• Dynamic Range 125 dB @ 1 MHz, 85dB @ 10 kHz
• Impedance (Nominal) 50 ?
• Pattern Type omnidirectional
• Polarization linear

ANTENA BUCLA PASIVA DE TESTAT ECRANARE SI IMUNITATE RADIATII 20 HZ..5 MHZ ETS-LINDGREN 6511

• Frequency Minimum 20 Hz
• Frequency Maximum 5 MHz
• Connectors BNC (f)
• Maximum Input Power 20 W
• Pattern Type omnidirectional
• Polarization linear

ANTENA LOG-PERIODICA LINIAR POLARIZATA DE MARE PUTERE 200..1 GHZ ETS-LINDGREN 3152

• Frequency Minimum 200 MHz
• Frequency Maximum 1000 MHz
• Input Impedance 50 ?
• SWR 1.5:1 average, 2:1 maximum
• Maximum RF input power 1 kW
• RF Connector N Type
• Pneumatically Driven Polarization
• Ideal for Immunity Testing Per 2004/144/EC and ISO-11451-2

ANTENA LOG-PERIODICA LINIAR POLARIZATA DE MARE PUTERE 20..220 MHZ ETS-LINDGREN 3151

• 20 MHz to 220 MHz frequency range
• High power feed handles up to 5 kW RF input power
• Space saving design features tophat-loaded, low-frequency elements
• Mounted on wheeled base for easy mobility

FILTRE RFI/ EMI CONTROL LINIE PENTRU SISTEME ALARMA, DETECTIE SI MONITORIZARE ETS-LINDGREN N296X/ N2972

• Tubular, flat-pack or modular design
• Attenuation from 100dB at 10kHz
• Suitable for EMI, EMP and Tempest protection
• 24V DC and 250V AC/DC options

ANTENA LOG-PERIODICA POLARITATE LINIARA DUBLA 100 MHZ..1.1 GHZ ETS-LINDGREN 3145BDP

• Frequency Range 100 MHz - 1.1 GHz
• Input Impedance 50 ?
• VSWR 1.5:1 average, 3.5:1 maximum
• Maximum RF input power 800 W
• Stainless Steel Construction
• Dual Linearly Polarized

ANTENA HORN LINIAR POLARIZATA OCTAVA 1..8 GHZ ETS-LINDGREN 3161

• Frequency Minimum 1 GHz
• Frequency Maximum 8 GHz
• Pattern Type directional
• Polarization linear
• Constant Antenna Factor Over Frequency
• Complete with Feed, Waveguide, Mount

CELULA GTEM TEST, MASURA, INCERCARI EMISII RADIATII ELECTROMAGNETICE SI IMUNITATE EMC ETS-LINDGREN 5411

• Frequency: DC - 20 GHz (RI) 2 9 kHz - 5 GHz (RE) 1
• Post Production
• For all Phases of EMC Testing - Design Qualification - Pre-Compliance
• Full Compliance IEC 61000-4-3 ANSI C63.4

INCINTA ECRANATA TESTARE DISPOZITIVE WIRELESS ETS-LINDGREN 5247

• Roll-About Casters
• Portable RF Shielded Enclosure for OTA measurements
• >80 dB Typical RF Isolation
• RF Absorber Lined
• Dual Polarized Horn Antenna
• 700 MHz - 10 GHz Frequency Range
• Linear & Circular Polarization

ANTENA LOG-PERIODICA DIRECTIVA BANDA LARGA 200 MHZ..5 GHZ ETS-LINDGREN 3147

• Frequency Minimum 200 MHz
• Frequency Maximum 5 GHz
• Impedance (Nominal) 50 Ohm
• Maximum Continuous Power 80 W
• Pattern Type directional
• Peak Power 100.0 W
• VSWR 1.2:1
