Handstrap & Safety Lanyard Mount
Optional Fiber Optic Link
Interchangeable Probe Heads
Fitted Carry Case
Small/Lightweight for minimal field perturbance
Broadband Frequency Range
Economical Solution to Broadcast/Telecom Safety Monitoring Needs & Environmental Monitoring
One Hand Operation

Electrical Specifications

Averaging Modes	Linear, RMS, Spatial
Internal Memory	> 65,000 data points
Operating Time	> 20 hrs; 4-AA Batteries
Overload	> 1200 V/m
Resolution	0.01 V/m
User Selectable Units	V/m, A/m, T, mW/cm²

Accesorii standard

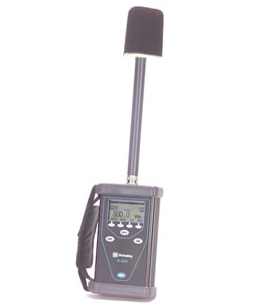

Model HI-2200 Metering Unit

¼ X 20 Tripod Mount
Handgrip Strap
Shoulder Harness
RS-232 Data Interface Cable (9-pin D-sub connector)
Data Upload Software (Free download from our website)
User Manual
Fitted Carry Case
One Year Warranty

Optiuni recomandate

Probe View II PC Software

Optical Remote Data Link

Additional Probes

Electrical Specifications For Additional Probes

Model	Dynamic Range	Frequency Range	Sensor Detection Type
C300	< 1% - 999% of FCC std	100 kHz - 8 GHz	E-Field % of FCC std
C310	< 1% - 999% of ICNIRP	100 kHz - 8 GHz	E-Field % of ICNIRP std
E100	0.3 - 800 V/m	100 kHz - 5 GHz	E-Field isotropic
H200	30 mA/m - 10 A/m	5 MHz - 300 MHz	H-Field isotropic
H210	0.3 - 30 A/m	300 kHz - 30 MHz	H-Field isotropic
