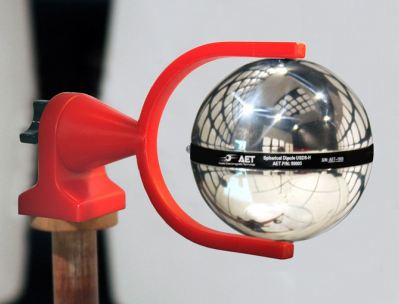

Dipol sferic universal generare radiatii electromagnetice EMI ETS-Lindgren USDS

Cod: ETS-Lindgren USDS




Brosura produs PDF, 0.27 Mb

Descriere

  • Portable EMI Source for Quick Test Site Characterization and Site-to-Site Comparisons
  • Horizontal and Vertical Polarizations
  • Selectable Pulse Mode for Testing Quasi-Peak Detectors
  • 10 MHz - 10 GHz Frequency Range
  • Four Switch Selectable Fundamental Frequencies: 10 MHz, 64 MHz, 100 MHz,133 MHz
  • Minimum Output Level of 35 dBuV/m Over Most Frequencies in Most Test Environments

Applications
  • Test Environment Characterization: The USDS can be used for assessment of semi-anechoic chambers, shielded rooms and enclosures, open area test sites, GTEMs, and complex RF test environments.
  • Site Comparisons: Companies with multiple labs will appreciate that the USDS can be used to make site-to-site comparison. Comparisons can all be made between different environment types, GTEM to chamber for example.
  • Shielding Effectiveness Testing: The compact 10 cm diameter of the radiating element allows the USDS to be used in small enclosures.


Accesorii standard

  • Manual
  • Internal Battery Board (AET P/N 20028) provides a Nominal Operating Time of 3-4 Hours (Recharge- able NI-MH AAA Batteries Not Included)
  • AC Battery Charger
  • Bundled Spherical Dipole Yoke Tripod Adapter Assembly (AET P/N 90016-02)
  • Universal Spherical Dipole Source (USDS-H) Comb Generator with Four Selectable Clocks (AET P/N 90005-01)
  • Model USDS-HE; Bundled System (AET P/N 90025-02)


Optiuni recomandate

  • Additional Internal Battery Board for Extended Operation (AET P/N 20028). Provides a Total Nominal Operating Time of 6-8 Hours When Used with Included Battery Board.
