Deviser S900 Series Signal PROFILER

Cod: Deviser S900 Series




Brosura produs PDF, 10.61 Mb

Descriere

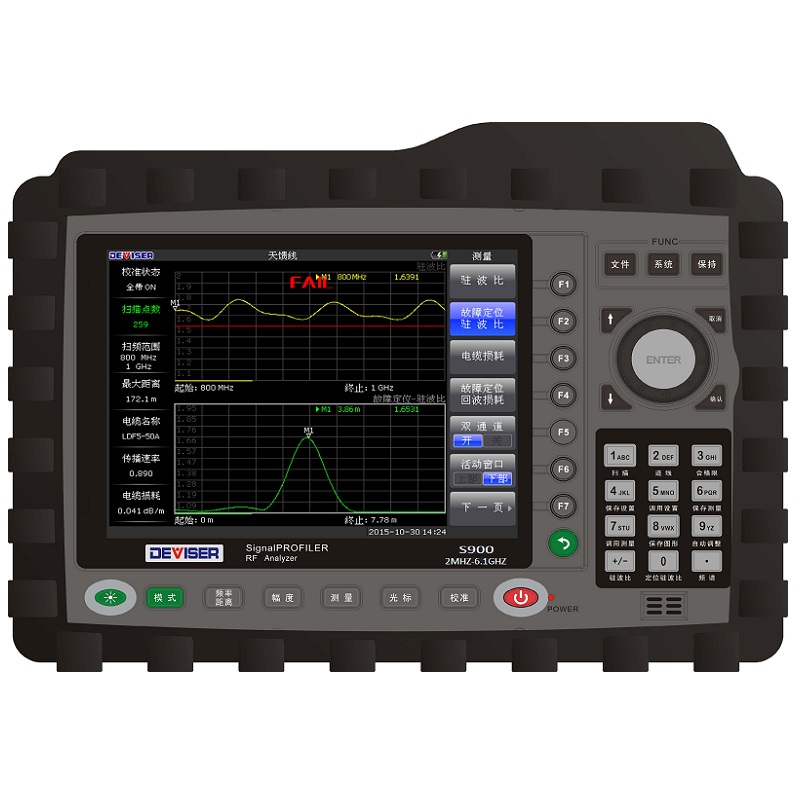

The SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/optical power measurements in a single instrument. As a multi-functional instrument, the SignalPROFILER can be configured to meet your specific test needs at the time of purchase or at a later date as your test needs evolve. Additional measurement capability can be added on the fly in the field in a matter of seconds. Designed specifically for wireless communication field engineers and technicians who install, maintain and troubleshoot wireless communication sites, the SignalPROFILER was developed to get the job done right ½ the first time ½ with multiple cutting edge features that deliver accurate results, improve productivity and reduce OPEX and CAPEX.



Features:

  • RF, fiber and wireless signal quality testing ½ in a single instrument
  • Perform traditional RF feedline tests, inspect fiber connectors with auto pass/fall results and measure RF/Optical power
  • Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
  • Test MIMO 4x4 antenna performance
  • Detect signal degradation and system performance over time with trace overlay
  • Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions


Alte produse DEVISER

DEVISER AE500 CWDM CHANNEL ANALYZER

• Analyze 8 CWDM channels simultaneously
• All day testing with field replaceable batteries
• Create test profiles for general functions such as relative power measurement
• Store up to 400 groups of data, and manage results with Toolbox management software



DEVISER DS2831 DIGITAL TV SPECTRUM ANALYZER

• Analog TV and SC-QAM: troubleshoot typical analog interference and distortions as well as SC-QAM performance
• Time-Domain EVS Measurements: uncover interference from LTE signals under downstream QAM carriers with no service interruptions
• Characterize OFDM carrier performance and DOCSIS 3.1 cable modem performance
• 7½ Capacitive Touchscreen: with excellent touch response and 7 hours of operating time



DEVISER EP310 SERIES PON POWER METER

• Simultaneously verifies the power levels of all PON wavelengths (1310 nm, 1490nm, and 1550nm)
• Pass/fail analysis helps user quickly interpret results and ensures consistent PON turn-up
• Green light/red light LED helps user easily identify pass/fail results
• Rugged unit is water- and shock-resistant



ANALIZOR OTDR LOCATOR DEFECTE FIBRA OPTICA DEVISER AE2300

• 1310/1550 nm Wavelength
• Up to 36dB dynamic Range
• High Accuracy
• Fast Test
• Easy Operation
• Small Size and ideal for field
• Long Working Time



DEVISER E7000B CABLE & ANTENNA ANALYZER

• Reduce test time with dual measurement display to make two measurements simultaneously
• Detect signal degradation and system performance over time with trace overlay
• Instant Pass/Fail status



SURSA SEMNAL TV FRECVENTE FIXE DEVISER DS5103

• 20 MHz / 40 MHz Output Frequency
• Frequency Output simultaneity
• Output level is adjustable.
• Small dimension,light weight



DEVISER S700 SERIES CABLE & ANTENNA ANALYZER

• Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions
• Easily set up measurements with over 100 preset wireless frequency bands and cable types
• Reduce test time with dual measurement display to make two measurements simultaneously



TESTER CERTIFICARE SI CALIFICARE RETEA CABLU UTP SI COAXIAL CAT3 CAT5E CAT6 DEVISER TC500

• Designed for Ethernet systems
• Contains a main unit and a remote unit
• measures the speed and performance on CAT3, CAT5e and CAT6 cables
• according to ANSI/TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification
• Tone generator
• Two additional functions: Ping and BER Test
• Store at least 100 results
• Toolbox software to analyze the results on PC



ANALIZOR DE CABLU SI ANTENA 25MHZ..4.4/6GHZ DEVISER E7000

• E7000A: 25 MHz to 4400 MHz
• E7100A: 25 MHz to 6000 MHz
• Spectrum Analyzer Option 100kHz to 3000 MHz
• Return Loss/VSWR
• Cable Loss
• Distance-To-Fault
• 1-Port Phase
• Smith Chart
• 2-ports Transmission Measurements(With E7000-SA Option)
• USB Power Meter Sensor Option
• GPS Receiver Option



ANALIZOR VECTORIAL DE RETEA 300 KHZ..1.3 GHZ DEVISER NA7100

• Frequency Range 300KHz~1.3GHz
• 75 or 50 ohm
• Two channels, Four traces display
• Logarithm amplitude, Linearity amplitude, Phase, Group delay, Real part, Imaginary part
• Smith chart, Pole chart
• Transmission, Insertion Loss, Gain, Insertion Phase, Isolation
• Return Loss, VSWR, Impedance
• USB, parallel, RS-232 and VGA,LAN interface
