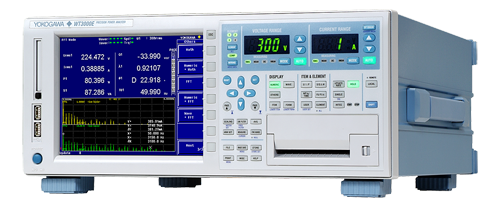

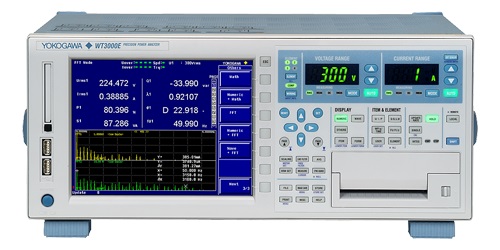

YOKOGAWA - WT3000E Precision Power Analyzer

Code: YOKOGAWA - WT3000E Precision Power Analyzer




Datasheet PDF, 4.56 Mb


Description

Offering the world’s best power measurement accuracy, the WT3000E provides engineers with a solution for testing and verifying product efficiency. The WT3000E is ideal for the design and testing of Solar Inverters, Motor Drives, Lighting Systems, Uninterruptible Power Supplies, Transformer Testing, Aircraft Power Systems, and other power conversion devices.



Features:

  • Basic power accuracy: 0.01% of reading
  • Both 2 A and 30 A input elements can be installed in a single unit
  • Good readability: 8.4-inch LCD and the range indicator LEDs
  • Simultaneous measurement with 2 units (Up to 8 power input elements)
  • Store function: 50 ms data storing interval
  • Multiple computer interface: GP-IB, Ethernet, RS-232 and USB
  • Advanced computation function: Waveform computation, FFT analysis, waveform sampling data saving.
  • The latest IEC61000-3-2 and IEC61000-3-12: Harmonic measurement
  • The latest IEC61000-3-3 and IEC61000-3-11: Voltage fluctuation / flicker measurement

Yokogawa's highest-precision power analyzer



The WT3000E is a member of the WT series of power analyzers which are designed to meet a variety of user needs. The WT3000E has the highest precision of all the Yokogawa power analyzers in the WT series. The WT300E/WT500 series are high price-performance models popular for production line applications. The WT1800E allows measurement data to be viewed in a variety of ways, including numerical value display, waveform display, and trend display capabilities.
