YOKOGAWA - Process Calibrator CA300 Series CA310 CA320 CA330

Code: YOKOGAWA CA300 CA310 CA320 CA330




Datasheet PDF, 3.99 Mb


Description

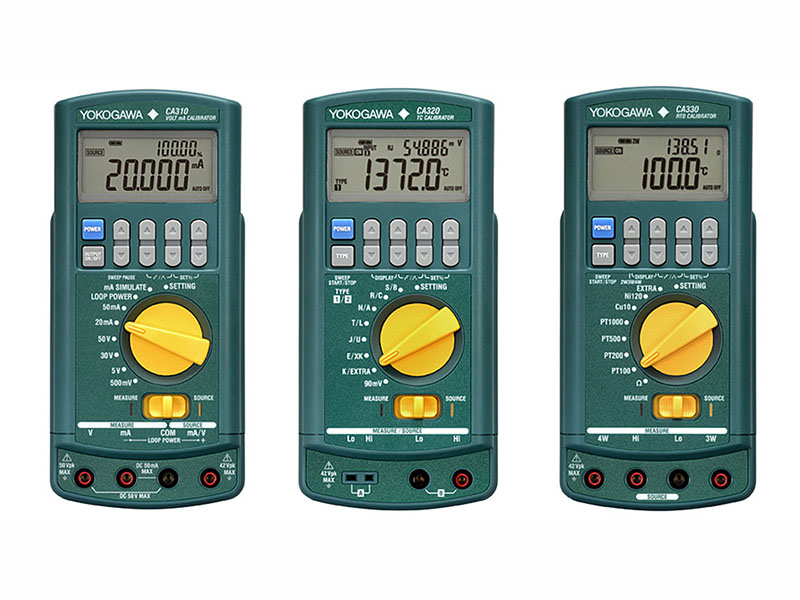

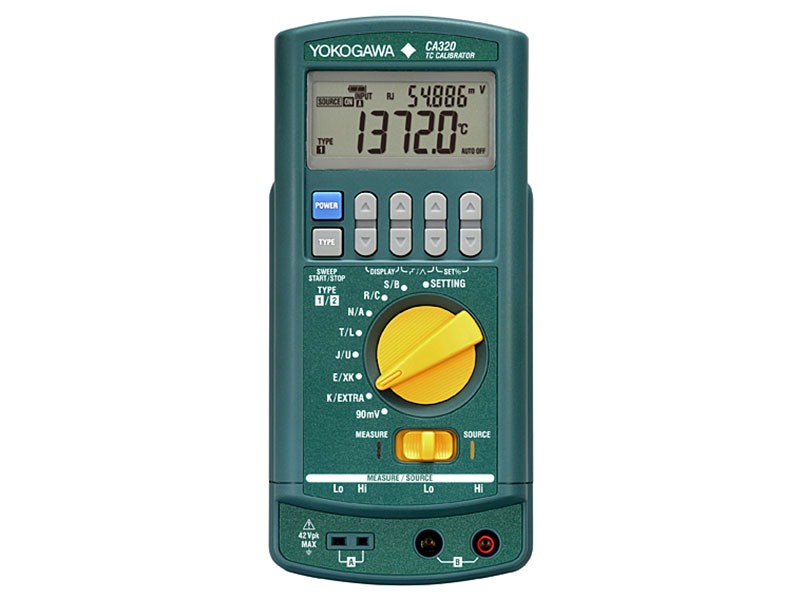

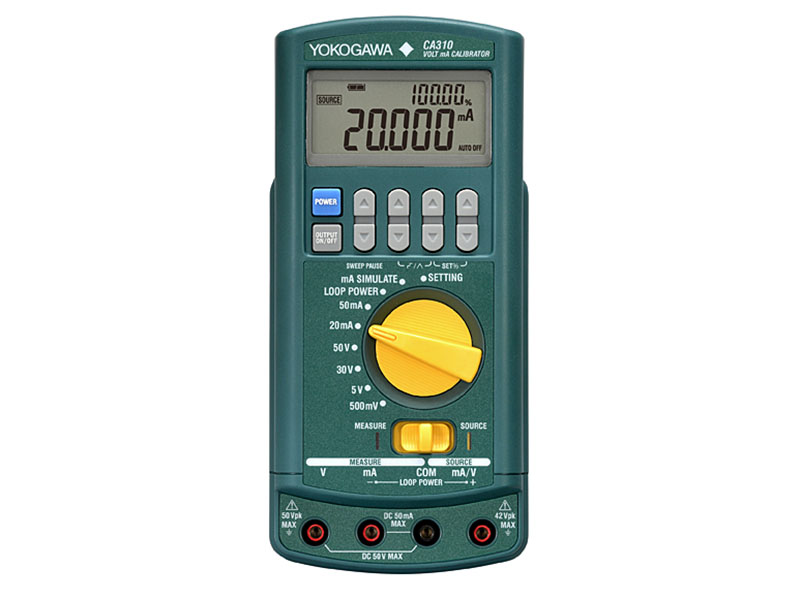

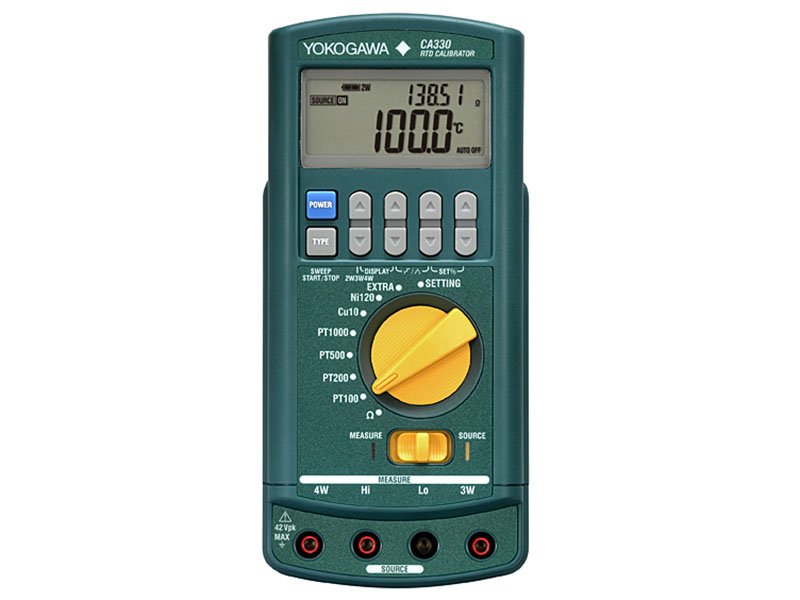

The CA300 Series is a high accuracy source and measure portable handheld calibrator used to inspect and maintain the accuracy of control devices such as temperature controllers, temperature transmitters, temperature sensors and other process devices which are used in process plants, industry machinery, and manufacturing. Available in 3 models, the CA310, CA320, and CA330 provide an ergonomic and friendly user-interface making it easy to use.



Features:

  • Basic Accuracy: 0.015% (Source&Meas. accuracy of Voltage mA)
  • 20 mA SIMULATE (SINK) function
  • Simultaneously supplies 24V loop power and measure output signal with high accuracy
  • HART/BRAIN comm. resistance (250O) embedded
  • Sub display displays span% of the source value
  • Corresponds to various types of source pattern (Step sweep/ Linear sweep/ Manual step/ Span check)
