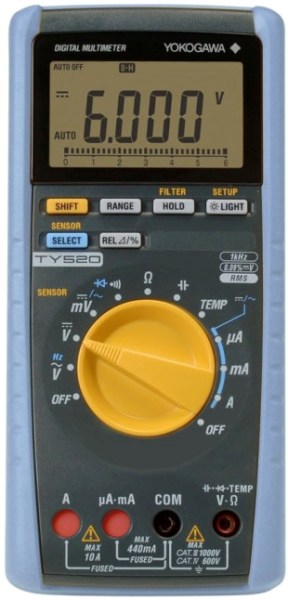

YOKOGAWA Digital Multimeter TY520

Code: YOKOGAWA Digital Multimeter TY520




Datasheet PDF, 1.46 Mb

Description

3.5-digit (6000-count dual display, 31-segment bar graph display), RMS type Measurement Functions: Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature



Features:

  • High Precision
  • Basic accuracy 0.09%
  • True RMS measurement
  • Ensured Field Site Safety
  • Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • New Functions for Yokogawa Middle Class DMMs
  • Current direct reading function provided by current clamp sensor (optional)
  • Low-pass Filter (LPF)
  • Logging-mode memory for 1600 data
  • USB communication, application software (Optional DMM communication package) TY530 only
  • Closed Case Calibration
  • 3-year Warranty
