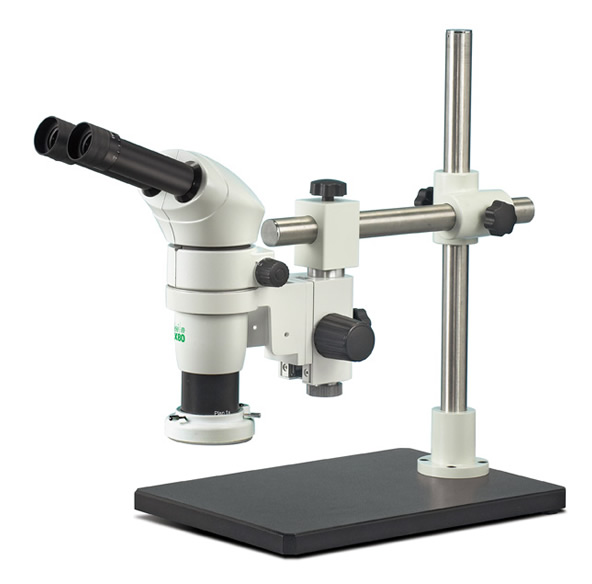

CMO High Resolution and Quality Microscope Vision SX80/ SX100

Code: Vision SX80/ SX100



Datasheet PDF, 1.64 Mb


Description



The SX80 and SX100 incorporate over 50 years of proven optical experience in a high quality CMO-series stereo zoom microscope.

With exceptional optics, the modular SX80 and SX100 deliver superb image quality at a competitive price, with a wide array of options providing complete flexibility.



  • CMO (Common Main Objective) stereo microscopes
  • High optical quality CMO stereo microscope
  • Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
  • SX80: x8 - x64 standard magnification range (x256 max.)
  • SX100: x8 - x80 standard magnification range (x320 max.)
  • Modular systems for specific applications





SX80 Overview

The SX80 provides high quality stereo viewing, ideal for both industry and life sciences, with a long working distance for easy assembly, manipulation, re-work, dissection, or simple inspection

tasks.

With an 8:1 zoom ratio, the SX80 has a standard magnification range of x8 - x64 (x256 max.) allowing fast and accurate viewing of all subjects. A compact, modular design allows accessories to be added to the configuration, without loss of clarity or contrast through the common main objective.



SX100 Overview

The high precision optics of the SX100 provide a 10:1 zoom ratio and a standard magnification range of x8 - x80 (x320 max.), providing high performance stereo magnification, while  maintaining a long working distance.

A fine focus option provides users with advanced capabilities for critical examination, allowing operators to quickly switch between manipulation and high magnification inspection tasks, allowing for parts to be reworked accurately to pass stringent quality standards.



Standard accessories

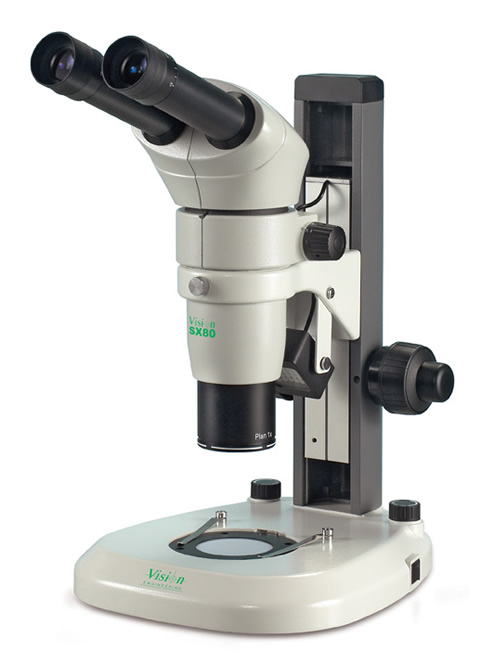

Floating Stage

For use with bench stand models, the floating stage provides smooth sample control, ideal for

inspection tasks.



Coarse and Fine Focus Adjustment

For precise focus control at higher magnifications.



Image Capture & Archive

Photo tube option permits the use of digital / video camera.

Multimedia solutions are available for image archiving, acquisition, analysis and documentation.



LED Ringlight

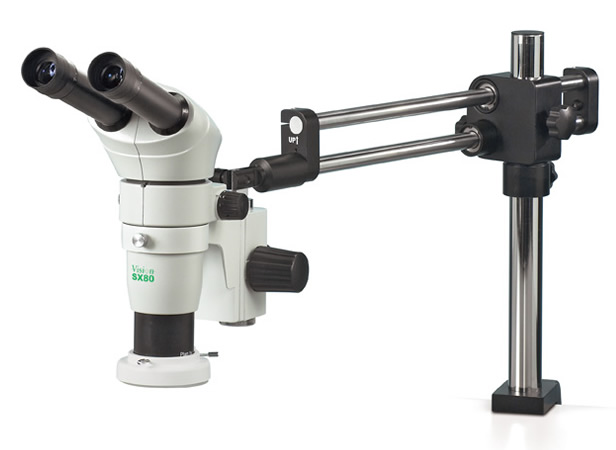

For use with bench stand models, where additional surface illumination is required (required option with boom mount variants).



Polarisation Set

Polarising filters can be accommodated with bench stand configurations



Double Iris Diaphragm

Enabling the size of the internal numerical aperture to be changed on both optical

paths, providing greater depth of field throughout the zoom range.


Recommended options

Image Capture & Archive

Trinocular head option permits the use of digital / video camera.

Multimedia solutions are available for image archiving, acquisition, analysis and documentation.



LED Ringlight

For use with bench stand models, where additional surface illumination is required (required option with boom mount variants).



Floating Stage

For use with bench stand models, the floating stage provides smooth sample control, ideal for inspection tasks.
