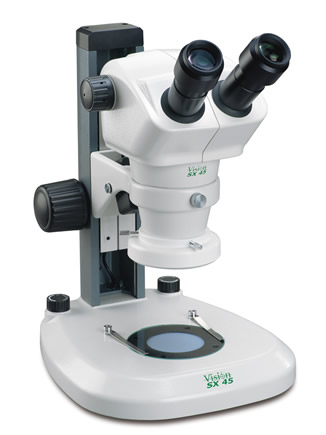

Greenough Stereo Precision Microscope Vision SX45

Code: Vision SX45



Datasheet PDF, 1.64 Mb


Description

Greenough Stereo Microscope



Designed as an affordable stereo zoom microscope, the SX45 with its long working

distance, precision optics and compact design is the perfect solution to many industrial and biological applications. A wide array of optional accessories allows for further tailoring to individual requirements.

With more than 50 years experience in design and manufacture of high performance optical systems, Vision Engineering’s SX45 delivers value, performance and flexibility.



SX45 Overview

The SX45 provides high quality stereo viewing, ideal for both  industry and life sciences, with an extra-long working distance for assembly, manipulation, re-work, dissection, or simple inspection tasks. Additionally, a wide range of stand options and accessories allow tailoring to suit individual requirements.



Optical Performance

  • Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
  • 22mm Field Number (standard) eyepieces with eyepiece dioptre setting
  • Interpupillary distance adjustment (52 to 75mm)
  • Affordable stereo zoom microscope with first-class performance
  • x8 - x50* (6.3:1 zoom ratio) click-stop stereo zoom magnification (x200 max.)
  • Wide range of options and configurations
  • Extra long working distance (115mm*)

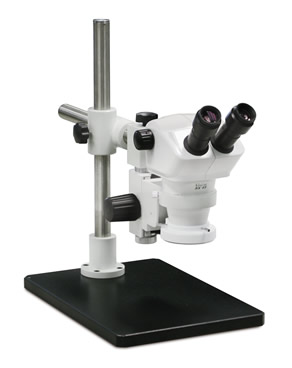

Recommended options

Image Capture & Archive

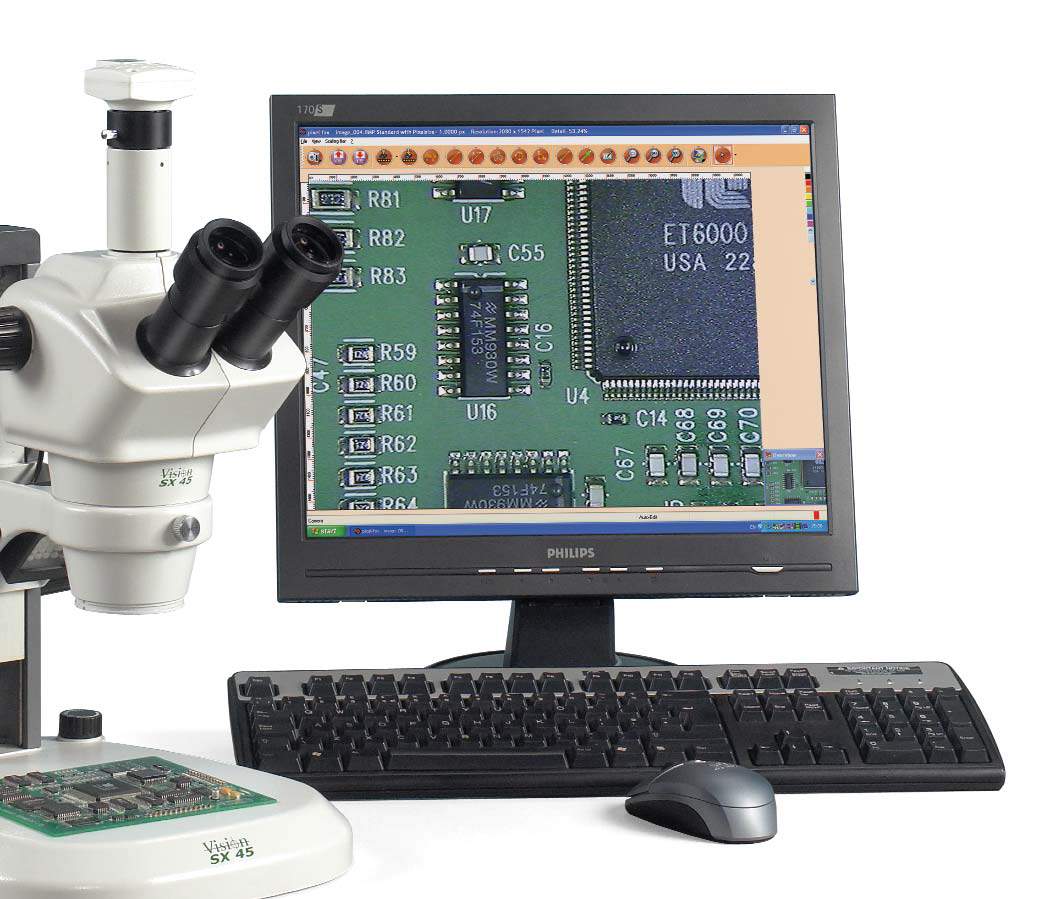

Trinocular head option permits the use of digital / video camera.

Multimedia solutions are available for image archiving, acquisition, analysis and documentation.



LED Ringlight

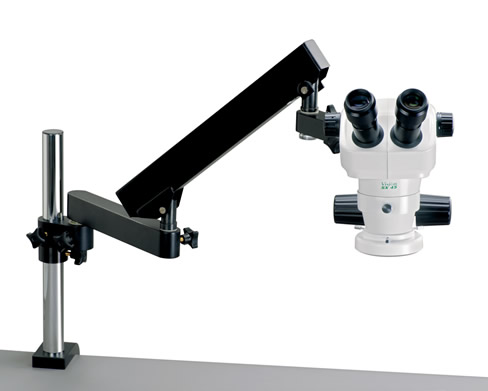

For use with bench stand models, where additional surface illumination is required (required option with boom mount variants).



Floating Stage

For use with bench stand models, the floating stage provides smooth sample control, ideal for inspection tasks.
