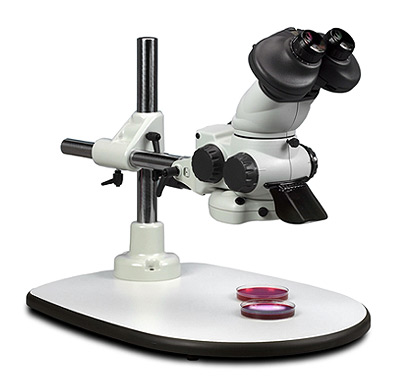

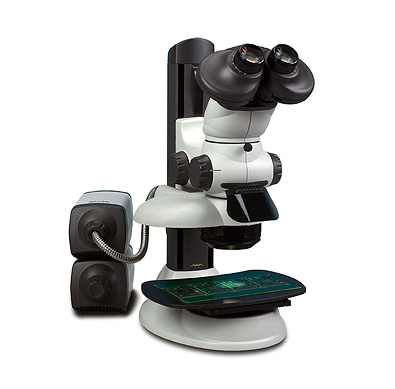

Optical Stereo Binocular Precision Microscope Vision Alpha

Code: Vision Alpha



Datasheet PDF, 0.24 Mb


Description

  • Wide range of magnification x2.1 - x160
  • Patented stereo Expanded-Pupil optical technology provides superb resolution and contrast
  • Easy hand-to-eye coordination resulting in increased throughput, accuracy and reduced scrap
  • Stereo optics for easy viewing and documenting of complex surfaces



Alpha utilizes Vision Engineering's patented ISIS Expanded-Pupil technology to provide

up to 10 times greater freedom of head movement than conventional binocular

eyepiece microscopes.

The Expanded-Pupil optics of Alpha significantly increases head freedom and eye-relief compared to conventional eyepiece microscopes, reducing operator stress and fatigue over long

periods of time. High precision optics provide maximum brilliance with high contrast images.

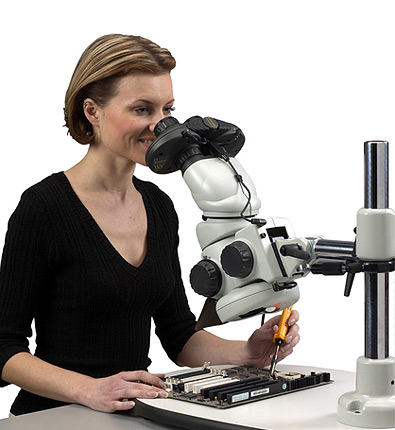

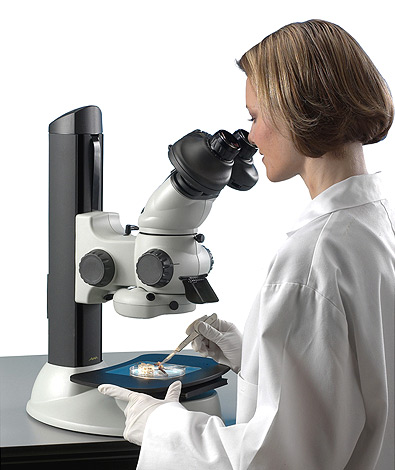

Alpha is used in a wide range of both industrial and life science applications, ranging from general manufacturing, medical devices, electronics, precision engineering, plastics and rubber to intricate life science work. The multiple accessories available for Alpha enable a wide variety of tasks including inspection, manipulation, assembly, dissection, soldering, polishing and finishing.



Features and Benefits

Incorporated modern advances in optical design allow eyes and hands to work together resulting in increased throughput, accuracy and reduced scrap and rework.

Wide magnification range of x2.1 - x160 provides clear, sharp images with long working distances and large depth of field.



Speed

Increased head and body freedom for the operator leads to greater productivity, improved quality control and reduced fatigue.



Versatility

Modular design allows for quick changeover of accessories and options. For example, from manipulation to high magnification inspection on to image capture.



Ergonomics

Patented Expanded-Pupil technology expands the exit pupil providing head freedom and eye-relief for excellent ergonomics, superb hand-to-eye coordination and the ability to wear glasses, if required



Standard accessories





Recommended options
