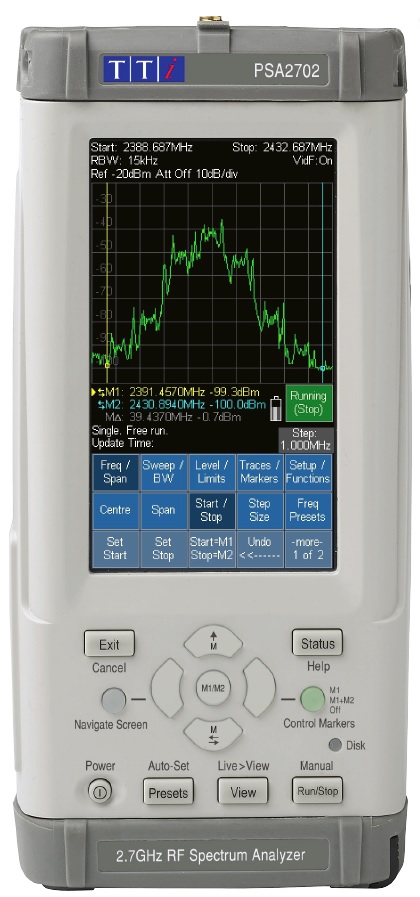

TTi PSA2702 Handheld Spectrum Analyzer 1..2700MHz

Code: TTi PSA2702 PSA2702USC




Datasheet PDF, 2 Mb


Description

  • 1MHz to 2700MHz frequency range
  • Resolution bandwidths of 1MHz, 280kHz or 15kHz
  • -96dBm typical noise floor at -20dBm reference level
  • Measurement in dBm or dBµV, mV or µW
  • Zero span mode with AM and FM audio demodulation
  • Trace modes of normal, peak hold and trace average
  • Live, View and Reference traces in contrasting colours
  • Twin markers with readout of absolute & difference values
  • Smart marker movement with selectable peak tracking
  • Frequency presets and independent state storage
  • Auto-find automatically sets sweep parameters for the highest signal found
  • Unlimited storage for waveforms, set-ups and screens
  • User assignable file names, file stamping from real-time clock

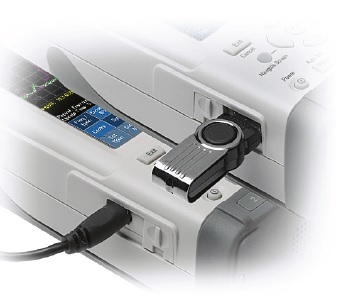

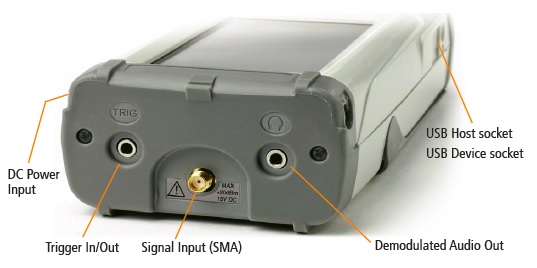

  • USB interfaces for Flash drives and PC connection
  • Comprehensive status and context sensitive help screens
  • More than 8 hours continuous operation from a charge

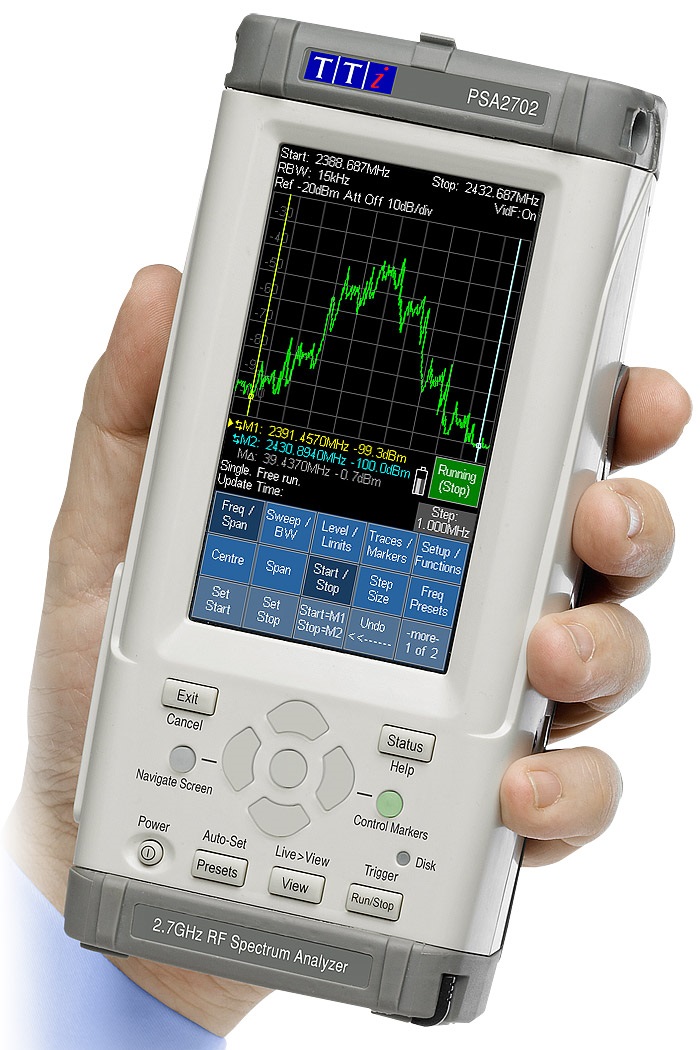

  • Smaller and lighter than other spectrum analyzers(weight only 0.56 kg)




** Additional features - with option U01:-

  • Limit lines and limit patterns with limits comparator
  • Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
  • Level offsets and compensation tables
  • Sweep triggering from external trigger or limits comparator
  • Custom Presets - fast change for repetitive setups
  •
  • Capability to show screen contents on a PC

PSA2702USC

Handheld RF Spectrum Analyzers 2.7GHz Spectrum Analyzer with Option U01, Case and Accessories

PSA1302USC

Handheld RF Spectrum Analyzers 1.3GHz Spectrum Analyzer with Option U01, Case and Accessories

PSA2702

Handheld RF Spectrum Analyzers 2.7GHz Spectrum Analyzer

PSA1302

Handheld RF Spectrum Analyzers 1.3GHz Spectrum Analyzer



Standard accessories

Items Supplied - PSA1302 or PSA2702

Portable Spectrum Analyzer (PSA1302 or PSA2702) with detachable bench-stand/screen protector and removable stylus.

Spare stylus.

USB lead Mini B plug to standard A plug.

Trigger input converter plug 3.5mm jack to BNC socket.

AC line power-supply/charger universal voltage with interchangeable plugs for different countries.

Short manual (English, French, German, Italian and Spanish)

Full instruction manual (English only).

Support CD Containing hyper-linked PDF versions of the printed manuals, plus support files.





Items Supplied - PSA1302USC or PSA2702USC

The USC versions of the product include all of the optional items listed above.

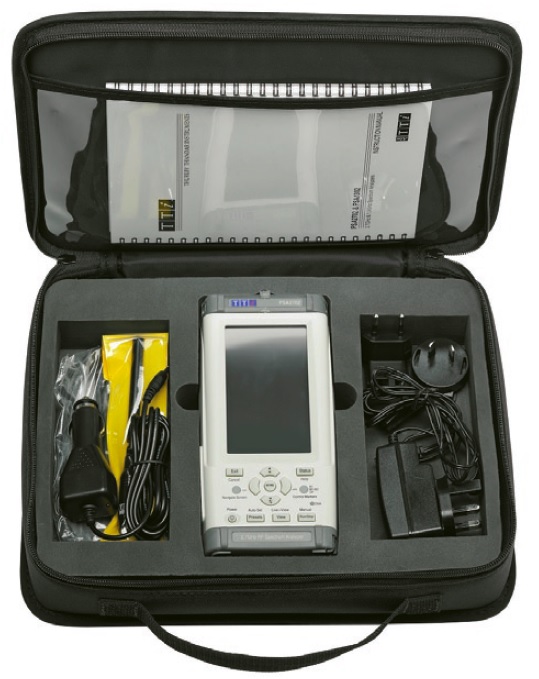

The firmware upgrade is pre-installed and all of the accessories, including the antenna and car charger, are supplied within the fitted case:



Portable Spectrum Analyzer (PSA1302 or PSA2702) plus firmware upgrade U01 pre-installed, with detachable bench-stand/screen protector and removable stylus.

Spare stylus.

USB lead Mini B plug to standard A plug.

Trigger input converter plug 3.5mm jack to BNC socket.

AC line power-supply/charger universal voltage with interchangeable plugs for different countries.

Wideband telescopic antenna.

Car charger 12v/24v.

Short manual (English, French, German, Italian and Spanish)

Full instruction manual (English only).

Support CD Containing hyper-linked PDF versions of the printed manuals, plus support files.

All mounted within the travel case



Recommended options

Firmware upgrade U01

Travel Case

Wideband telescopic antenna (SMA)

Vehicle Charger
