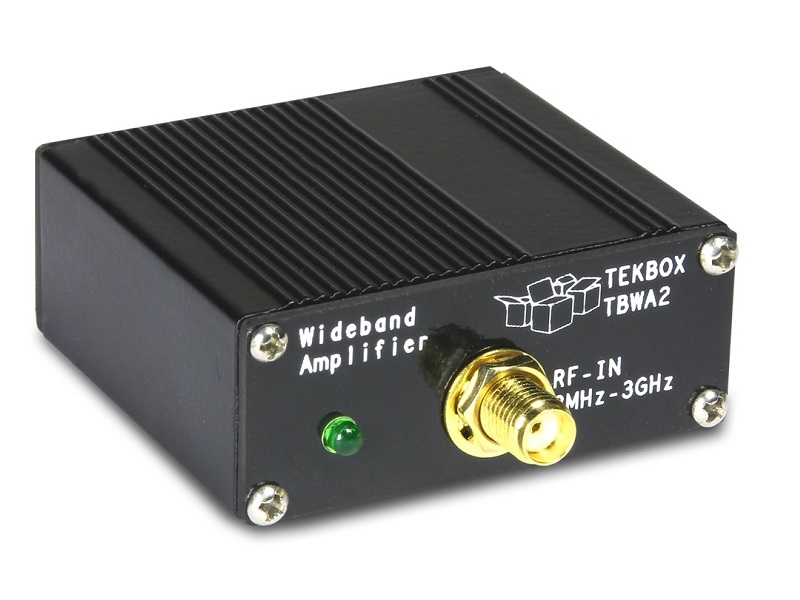

TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 2MHz to 6GHz, they are ideal to boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.

Features:

Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, ?f = 10MHz: +35dBm
Reverse isolation S12, 0.1 ½6GHz: 23dB
Noise Figure @ 2GHz: 4.5 ½ 5 dB
