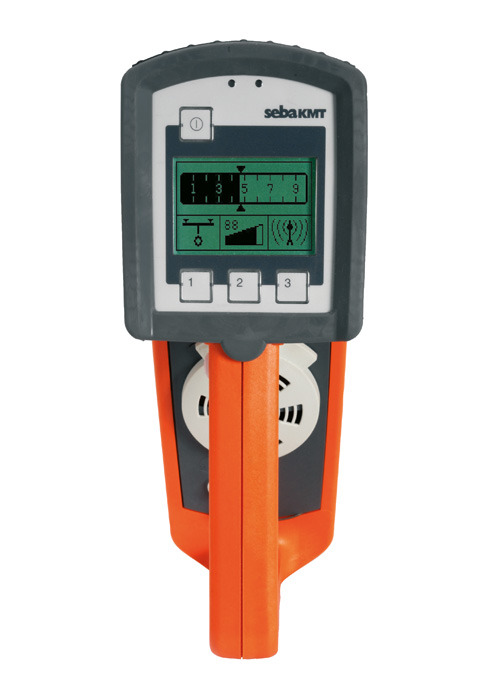

Seba KMT Easyloc RxTx Pipeline Location and Tracing for Underground Pipes and Cables

Code: Seba-KMT Eeasyloc-RxTx

Datasheet

PDF, 0.41 Mb

Description

Easyloc RxTx

Utility location system to detect and trace cable runs and pipe networks. The Easyloc is fast and simple to operate, with features designed to avoid potentially dangerous power cables and other services as efficiently as possible.

Easyloc is suitable for Water, Rail, Gas, Power, Highways and Telecommunication Utilities and Contractors; Groundworks; Building, Local Authorities, Civil Engineering, Street Lighting, and Fencing, Gardening and Landscaping companies.

Benefits:

Make optimum preparations for your building work, quickly and reliably
Avoid cable damage and help to minimise costly accidents and inconvenient delays
Depth measurement at the push of a button, even without a transmitter
33 kHz - compatible with other location systems
Large display with automatic backlight
Quick and simple to operate

Standard accessories

Scope of delivery

Complete Easyloc set

Easyloc Rx Standard receiver, Easyloc Tx transmitter, earthing

kit, earthing spike, carrying bag, operating instructions

Easyloc Rx Standard receiver set

Easyloc Rx Standard receiver, operating instructions

Easyloc Rx Basic receiver set

Easyloc Rx Basic receiver, operating instructions

Easyloc Tx transmitter set

Easyloc Tx transmitter, earthing kit, earthing spike, operating

instructions

Recommended options

Optional accessories

Headphones

For use of the equipment even in a loud environment

Pipeline transmitter

For locating non-metallic pipes

Transmitter clamp 100 mm

For putting a transmission signal onto cables under power

House connection set

Comprising connection leads for direct connection for power

supply, cable TV and telephone lines
