PROMAX HD RANGER UltraLite TV Signal analyzer for DVB-T/T2, DVB-C/C2, DVB-S/S2

Code: DVB-T/T2 DVB-C/C2 DVB-S/S2 HDRANGER UltraLite




Datasheet PDF, 0.66 Mb


Description

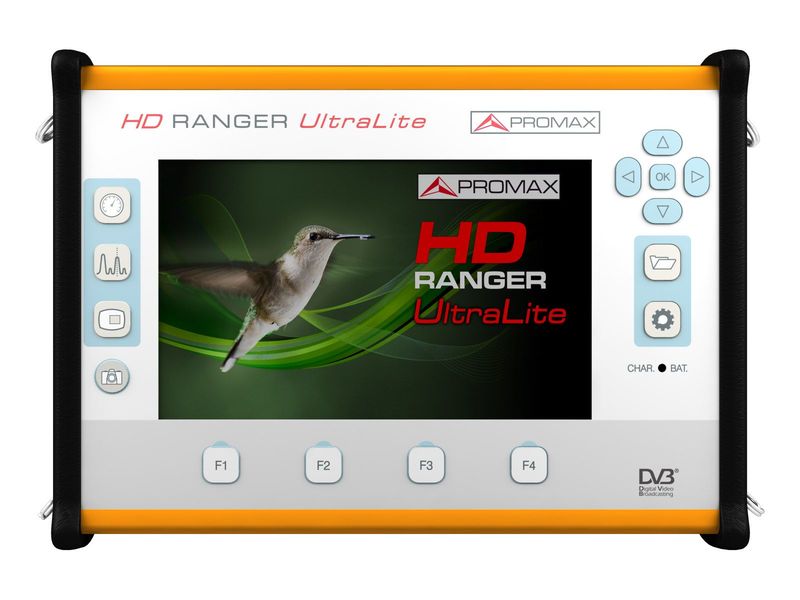

HD RANGER UltraLite : Tablet-sized TV signal and spectrum analyzer
Compact, handheld DVB signal and spectrum analyzer including all the high-definition standards (DVB-T/T2, DVB-C/C2, DVB-S/S2).

The HD RANGER UltraLite from PROMAX establishes itself as the benchmark universal field strength meter for installers and broadcast professionals seeking maximum portability without sacrificing performance. This tablet-form factor spectrum analyzer is compatible with the most demanding global standards: DVB-T2, DVB-C2, and DVB-S2, enabling advanced video processing for MPEG-2 and MPEG-4 (H.264) formats.

Designed under a "state-of-the-art technology" concept, the device stands out for its split-screen display capability, facilitating the simultaneous analysis of critical signal parameters. Weighing in at an ultralight 1.4 kg, it is the ideal tool for maintenance tasks in TV, cable, and satellite infrastructures where ergonomics are key.

Its digital ecosystem allows for downloading measurement reports directly to a PC and provides free firmware updates, ensuring a future-proof investment. Thanks to its high-speed digital processing, the HD RANGER UltraLite delivers laboratory-grade precision in a portable unit. If you are looking for efficiency in telecommunications network deployment and digital signal diagnostics, this field strength meter represents the perfect balance between broadcast power, extreme mobility, and technological versatility.

DIGITAL STANDARDS
DVB-T, DVB-T2, DVB-T2 lite
DVB-C, DVB-C2
DVB-S, DVB-S2, DVB-S2 multistream
DSS
VIDEO CODECSMPEG-2, MPEG-4 H.264
AUDIO CODECSMPEG-1, MPEG-2, HE-AAC
INPUTS AND OUTPUTS

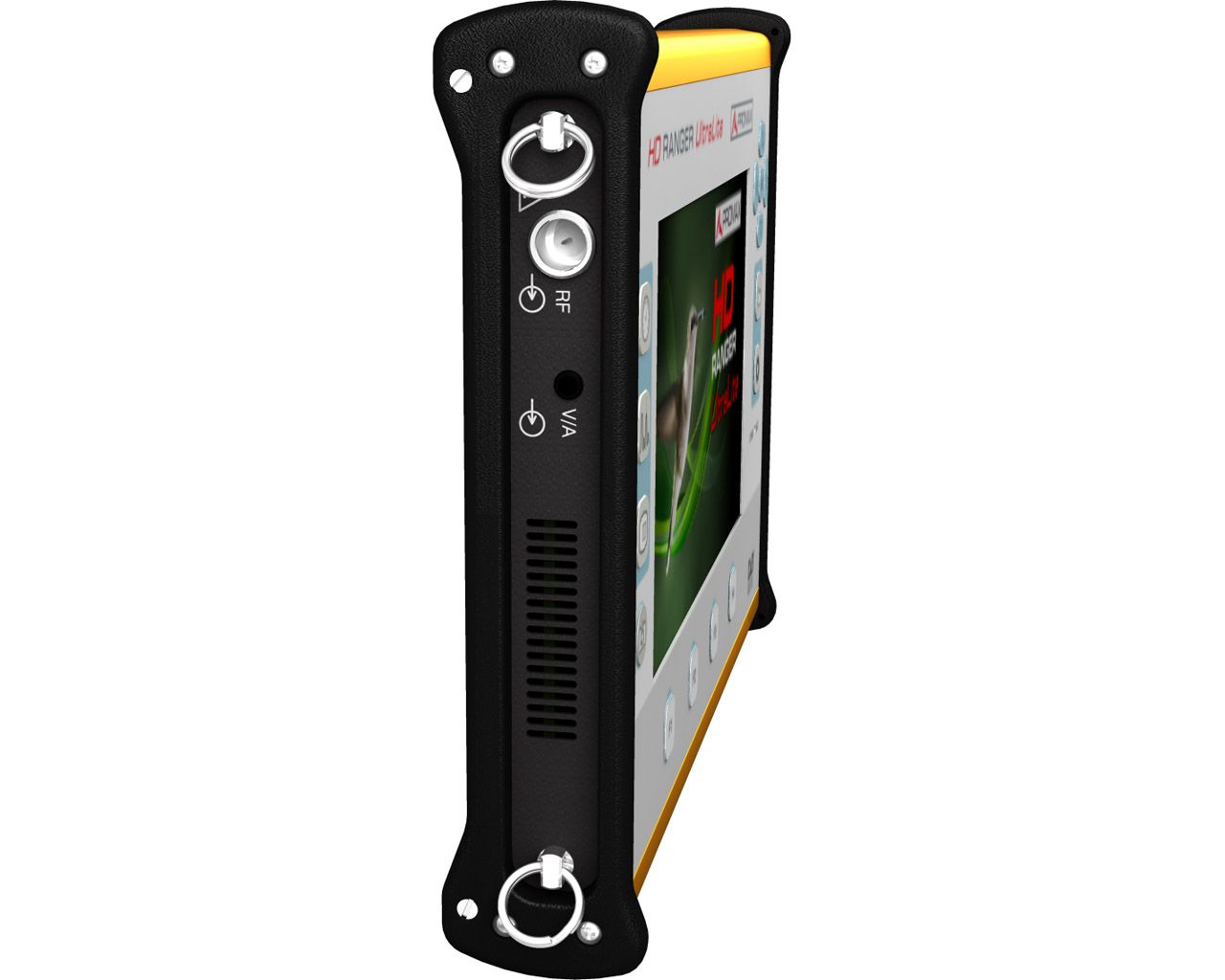

Universal RF connector 75 Ω
Analogue Video/Audio input

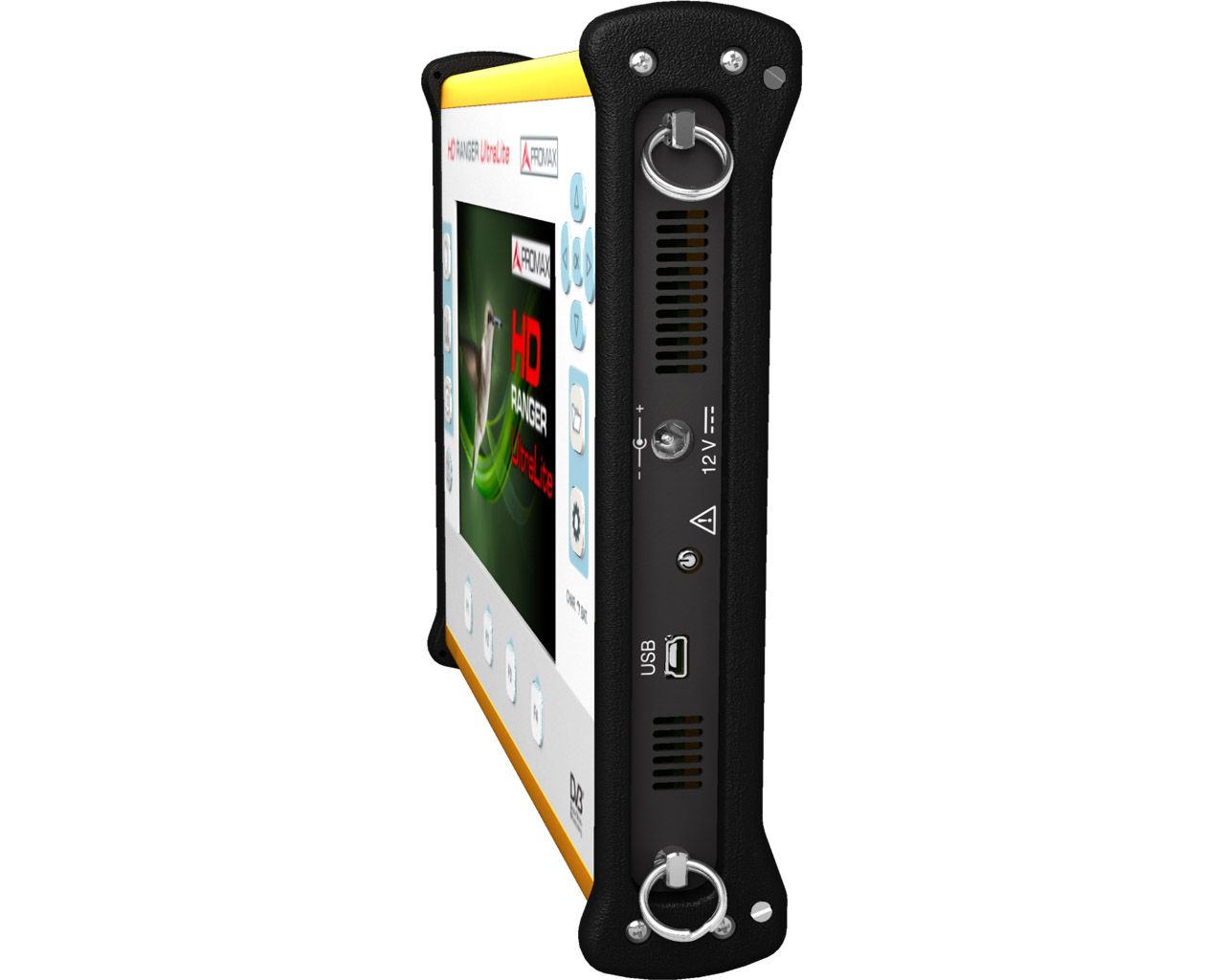

USB for data tranferring
FUNCTIONS
Constellation diagram
LTE
Dynamic echoes analysis
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
FM radio measurements and decoding
Screenshots and Datalogger for measurement reports
Service recording
LTE 1.8 GHz
DVB-S2 multistream
Field strength
Task planner
PC CONNECTION
NetUpdate 4 (free software)
Free and automatic firmware updates
User customised channel plans
Measurement reports and screenshots
