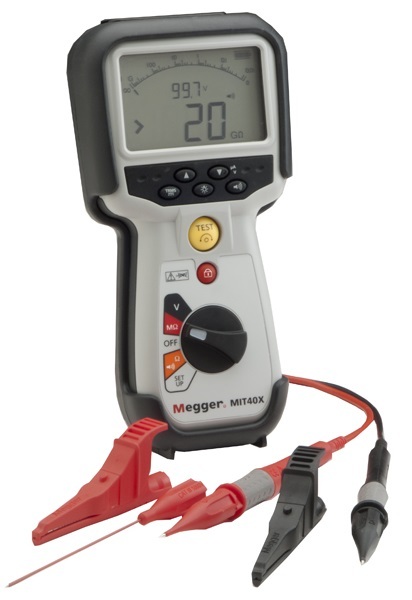

Megger MIT40X Insulation and Continuity Tester 100V
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger MIT40X

Datasheet

PDF, 0.29 Mb

Description

• Variable insulation test voltage from 10 V to 100 V
• Insulation resistance from 2 GO to 20 GO
• Continuity testing at 200mA down to 0.01 O
• TRMS & DC Voltage measurement
• Frequency measurement 40 Hz to 400 Hz

The MIT40X insulation and continuity tester offers an easy-to-use products for those how have awkward insulation resistance measurement applications where a lower test voltage is needed. The MIT40X test voltage can be selected over a range from 10 V to 100 V. Applications include avionics, marine and other military applications, manufacturing, electrostatic measurement and component testing.

A key feature of the design of the tester is its waisted profile making it easily held by operators with the smallest of hands, and it can be used right or left-handed, just as easily.

There are other features that add to the convenience of operation including, a built-in stand, probe clips etc.

Standard accessories

MIT400: basic CATIV 600 V with 250 V/500 V/1000 V insulation MIT400-EN

MIT410: as MIT400 + 50 V, 100 V, PI and DAR

MIT410-EN NSN:6625-99-354-2757

MIT415: 10 V, 25 V, 50 V, 100 V, 250 V, 500 V, PI and DAR 1000-351

MIT420: as MIT410 + result storage and recall + 200 GO

MIT420-EN NSN 6625-99-169-4728

MIT420-MIN: (NATO version - no batteries) 1000-309 NSN 6625-99-169-5675 MIT430: as MIT420 with Bluetooth download

MIT430-EN MIT40X: Special applications - selectable IT voltage 10-100 V MIT40X-EN

Included accessories

Hard case 5410-420

2 wire lead set to CAT IV 600 V, consisting of: Red and black leads, probes and clips with 1 x red long probe

Calibration certificate

SP5 Switched probe (not MIT400 or MIT40X) 1002-774

Owners information user guide CD

Recommended options

Optional accessories

Replacement 2 wire test lead set 1002-001

2 wire 500 mA fused test lead set 1002-015

Rubber boot with stand 6231-802

Pouch - test and carry case 2001-322
