Megger MIT1025 Insulation Resistance Megohmmeter 10000V
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger MIT1025

Datasheet

PDF, 1.93 Mb

Description

� Measures up to 20 TO
� PI, DAR, DD, SV and ramp test
� Improved productivity - operate from line power/mains if battery dead
� Li ion battery - extended capacity, rapid charge
� Advanced memory with time/date stamp
� CATIV 600 V safety rating

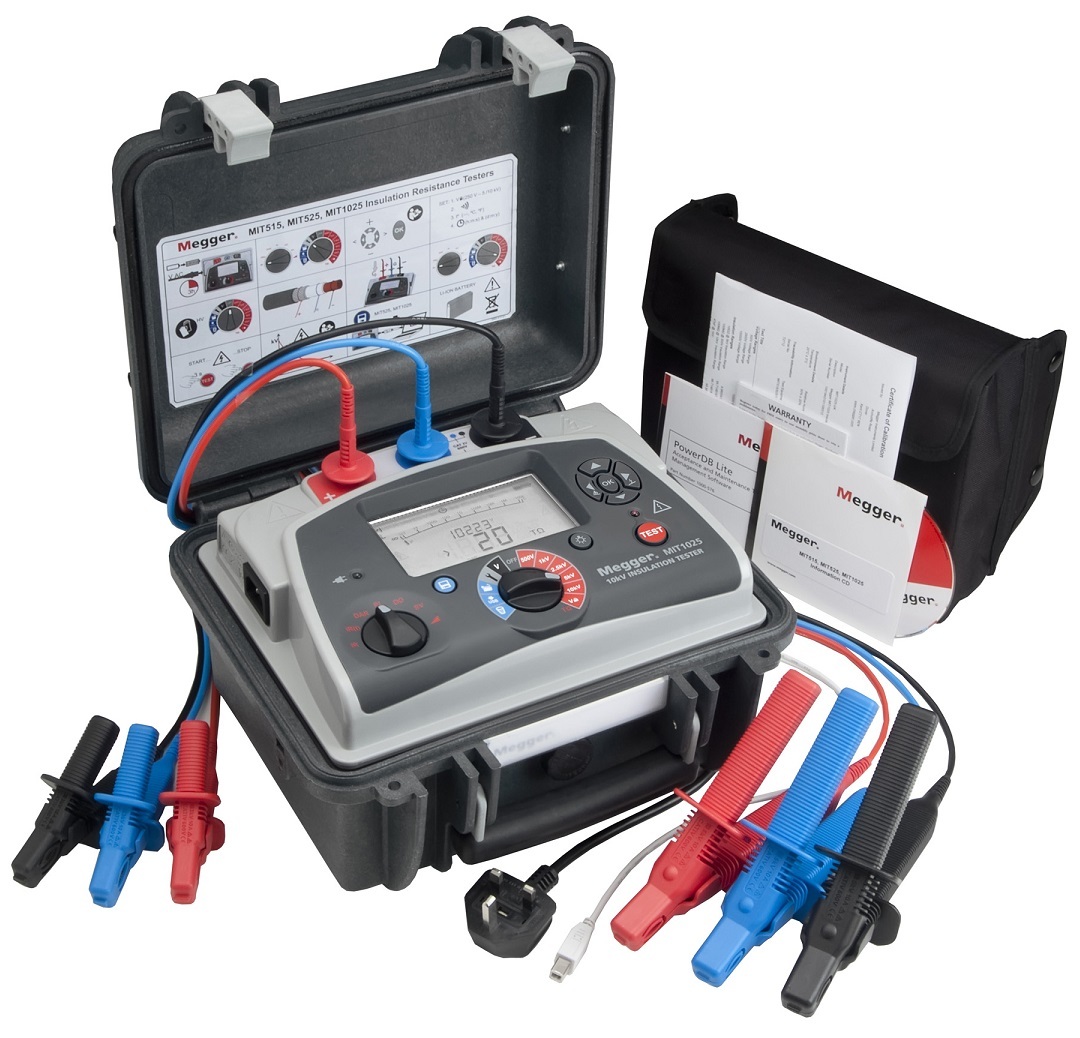

Offering CAT IV, the MIT1025 is compact, light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store.

As well as measuring insulation resitance to 20 TO, the MIT1025 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

Standard accessories

MIT515-UK 1001-935

MIT515-US 1001-936

MIT515-EU 1001-937

MIT515-AU 1001-938

MIT525-UK 1001-939

MIT525-US 1001-940

MIT525-EU 1001-941

MIT525-AU 1001-942

MIT1025-UK 1001-943

MIT1025-US 1001-944

MIT1025-EU 1001-945

MIT1025-AU 1001-946

Included Accessories

User guide CD

Power lead

3 m leadset x 3, medium insulated clips 1002-531

3 m leadset x 3, large insulated clips (MIT1025 only) 1002-534

Included Accessories (MIT525, MIT1025)

USB cable 25970-041

PowerDB Lite software

Optional Accessories

1 kV test lead sets

Fused test probe and clip lead set 1002-913

Control circuit test lead set 6220-822

Recommended options

Optional Accessories

HV test leads

5 m leadset x 3, large insulated clips* 1002-645

8 m leadset x 3, large insulated clips 1002-646

10 m leadset x 3, large insulated clips 1002-647

15 m leadset x 3, large insulated clips 1002-648

5 m leadset x 3, medium insulated clips* 1002-641

8 m leadset x 3, medium insulated clips 1002-642

10 m leadset x 3, medium insulated clips 1002-643

15 m leadset x 3, medium insulated clips 1002-644

3 m leadset x 3, bare compact clips 8101-181

8 m leadset x 3, bare compact clips 8101-182

15 m leadset x 3, compact bare clips 8101-183

Screened HV test lead sets

3 m, 5 kV screened un-insulated small clips 6220-835

15 m, 5 kV screened un-insulated small clips 6311-080

3 m, 10 kV screened un-insulated small clips 6220-834

10 m, 10 kV screened un-insulated small clips 6220-861

15 m, 10 kV screened un-insulated small clips 6220-833

Other

CB101, 5 kV calibration box 6311-077

Calibration certificate - CB101 1000-113

UKAS calibration certificate CB101 1000-047
